Ruifa Modular House
Ruifa Modular House
ONE-STOP services & Customized solutions, 10 years+ experience of R&D, Design, Manufacturing, Exportation and After-sales support.
AUTHENTIC MATERIALS - REST ASSURED WHEN YOU BUY

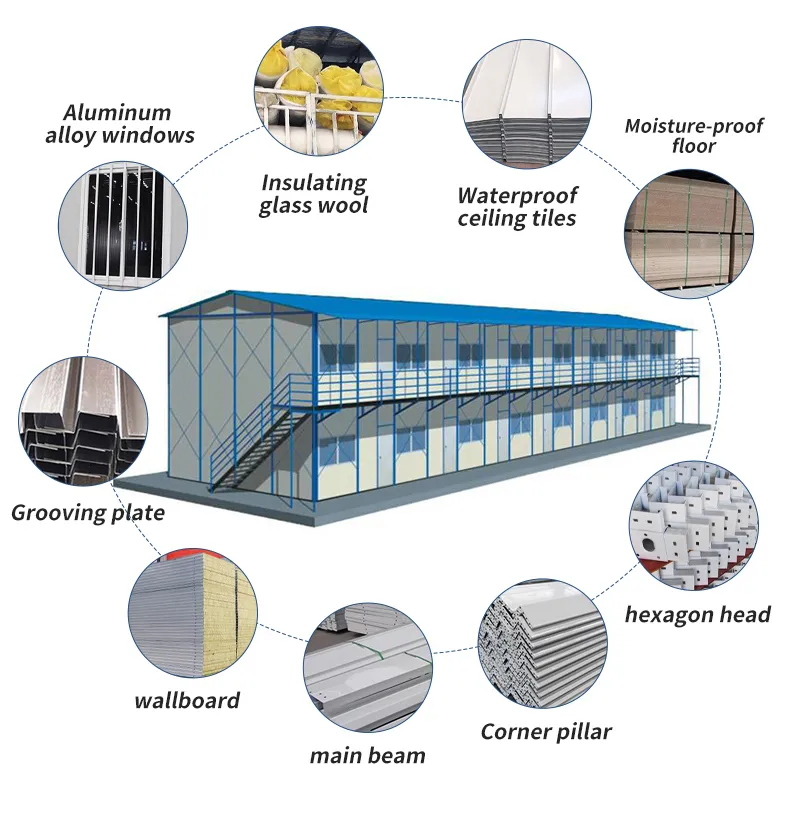

Configurable Innovation: All prefab modular buildings can be configured with innovative technologies to increase energy efficiency and comfort:
| Component | Description |
|---|---|
| Steel Column | 2C80*40*15*1.5 painting(K type) / Square tube (T type) |
| Tri-angle beam | Pre-welded C80*40*15*1.3/U50*35*1.3 electro-Galv. |
| Main beam | C80*40*15*1.5/U50*35*1.2 electro-Galv. |
| Roof purlin | L40*3 electro-Galv. |
| Steel staircase | Square tube 30*30*2.0/40*40*2.0, 2.5mm checkered plate |
| Roof/Wall panel | 50mm/75mm/100mm Fiberglass/Rockwool/EPS sandwich panel |
| First floor board | 18mm plywood board |
| Electrical system | Cable/Lights/Switch/Socket/PDB (Optional) |

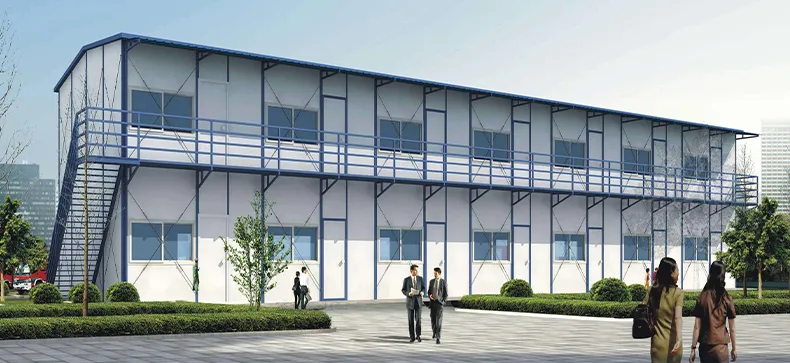

SELECTING HIGH-QUALITY RAW MATERIALS
Typical Uses:

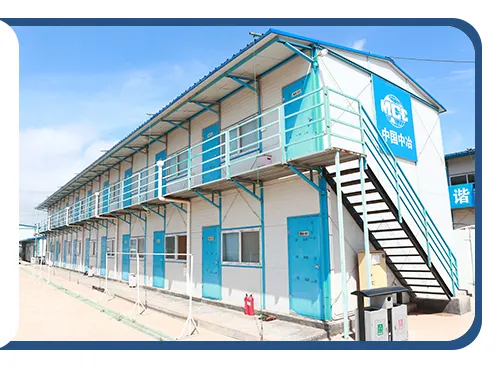

REUSABLE: Environmentally friendly, durable, thermal insulation, and earthquake resistance.
BEAUTIFUL APPEARANCE: Frame fully welded, polished, and professionally sprayed.

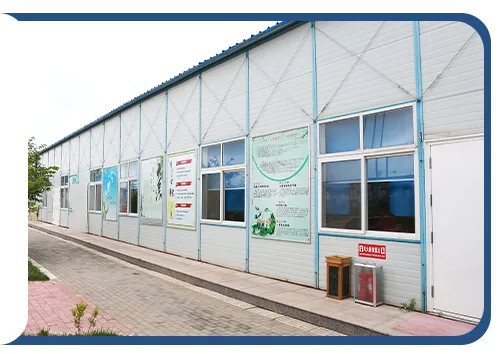

QUALITY ASSURANCE: Adopting rigorous water-proof design and strict construction.

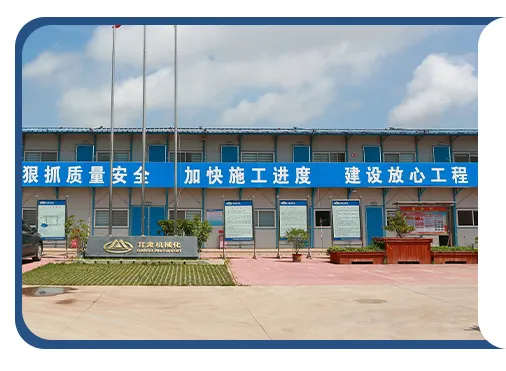

FREE COMBINATION: Multiple container activity rooms, freely assembled.
1. Unit figure for K house dimension is K (1K=1.82m).
2. Can be built as 1 to 3 floors building (1 floor=3P, 2 floors=6P, 3 floors=9P).
3. Qualified water proof, fire proof, and heat/sound insulation.
4. Can be relocated and reassembled up to six times.
5. Anti-termite and anti-rust steel structure with 10-15 years lifespan.
6. Quick installation: 4 labors can install more than 200m² per day.
