Ruifa Modular House
Ruifa Modular House

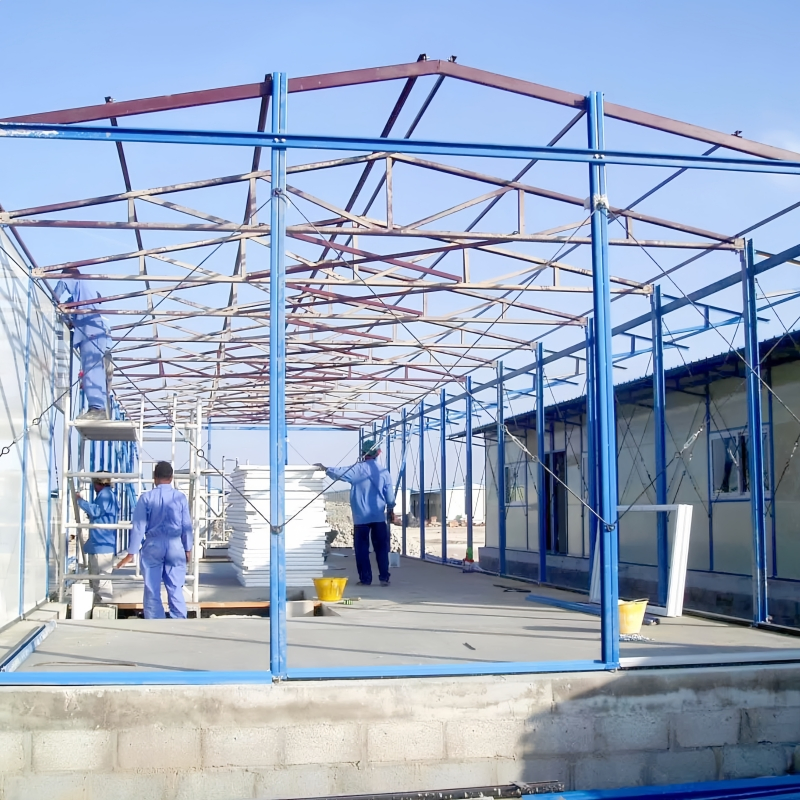

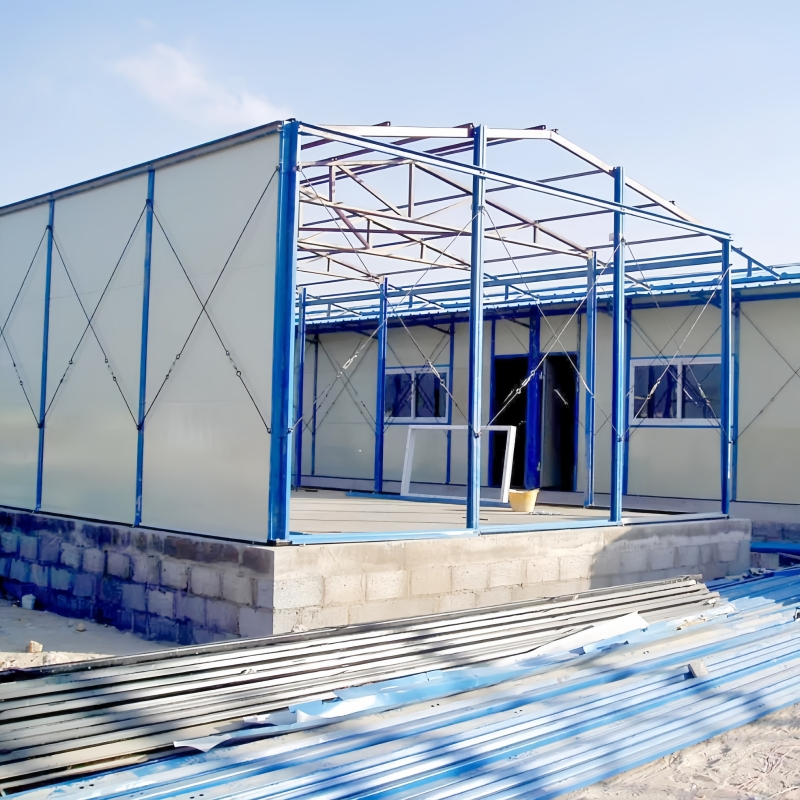

This prefabricated structure is engineered for durability, functionality, and cost efficiency, combining advanced materials with innovative design. Its core framework utilizes a lightweight steel structure to form a robust skeletal system, ensuring exceptional load-bearing capacity while maintaining portability and ease of assembly.
Designed for exceptional value, this prefabricated building solution significantly reduces investment costs without compromising quality. The high-stiffness construction is achieved through hot-dip galvanized high-strength cold-rolled steel plates, providing superior resistance to corrosion and environmental wear.

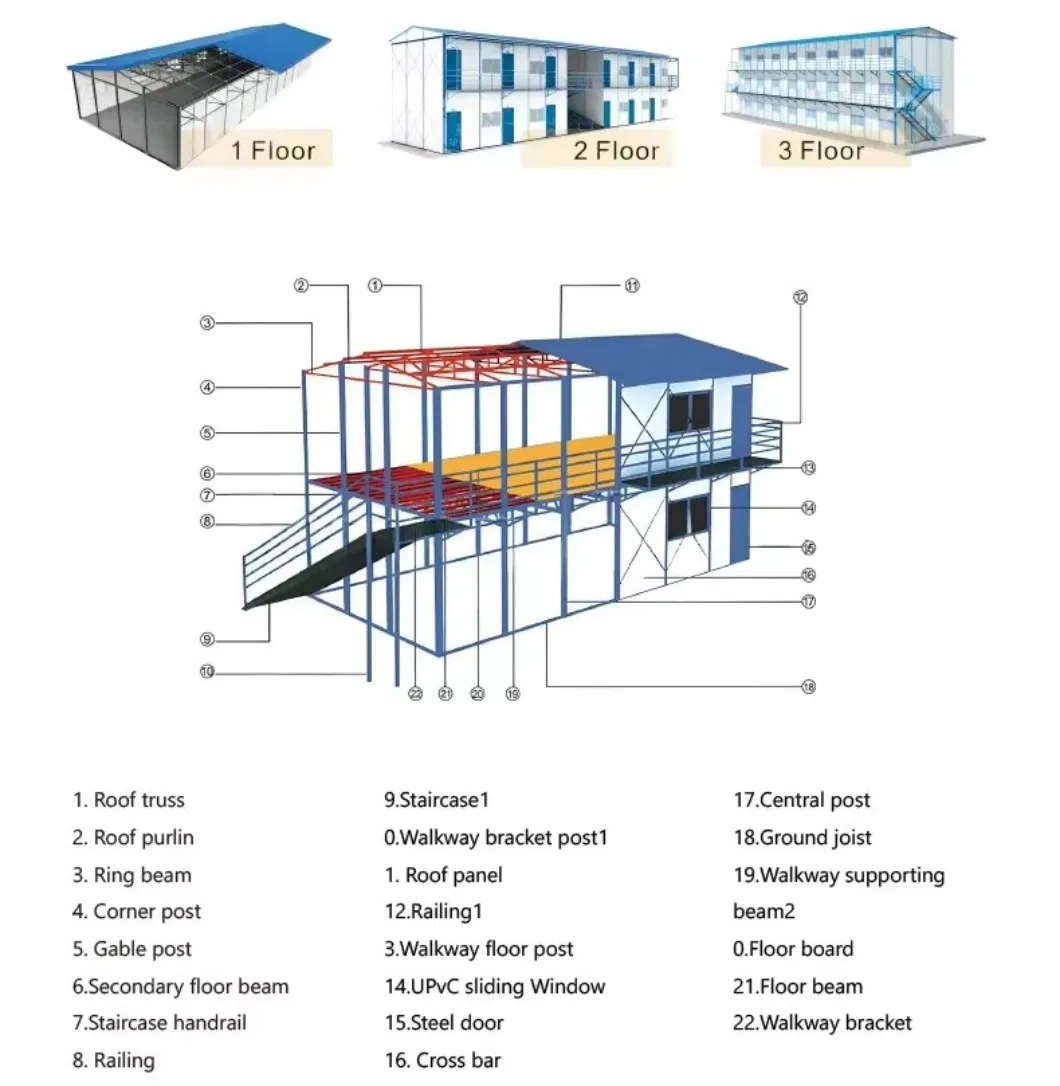

Roof Truss: Hot-dip galvanized high-strength steel system designed to distribute vertical and horizontal loads efficiently.
Roof Purlin: Horizontal steel purlins reinforce stability and provide a secure base for roof panels.
Corner & Gable Posts: Cold-formed steel channels anchored at critical junctions to resist lateral forces.
Ring Beam: Enhances rigidity and prevents deformation at wall and roof junctions.
Wall Panels: Insulated sandwich panels (EPS/Rockwool) for thermal efficiency and noise reduction.
Floor System: Galvanized steel I-beams or C-sections offering high load-bearing capacity.
| NO | Sort | Name | Specification |
|---|---|---|---|
| 1 | Size | Specification | Customized Length; Width: 3T, 4T, 5T, 6T etc. |
| 2 | Standard | Wall/Roof | EPS/Glass Wool/Rock Wool (50/70/100mm) |
| 3 | Standard | Door | Sandwich Panel/Steel/Security Door |
| 4 | Standard | Window | PVC Sliding/Aluminum Alloy Glass Window |
| 5 | Standard | Pillar | Square Tube 80*80 / 100*100 |
| 6 | Optional | Ceiling | Calcium Silicate Board/PVC Ceiling |
| 7 | Optional | Floor | PVC Flooring/Tiles/Plywood |

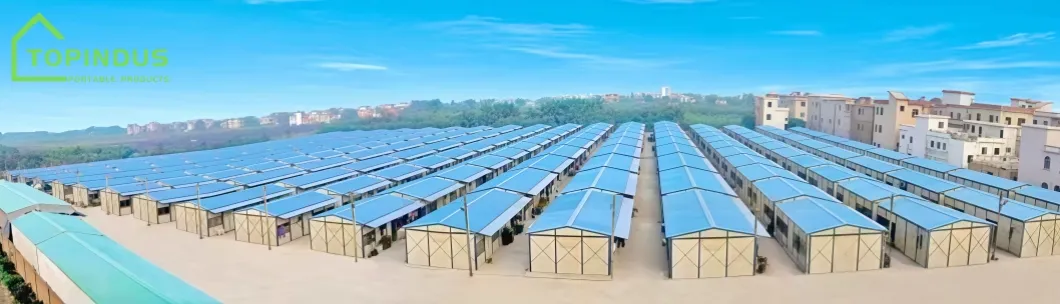

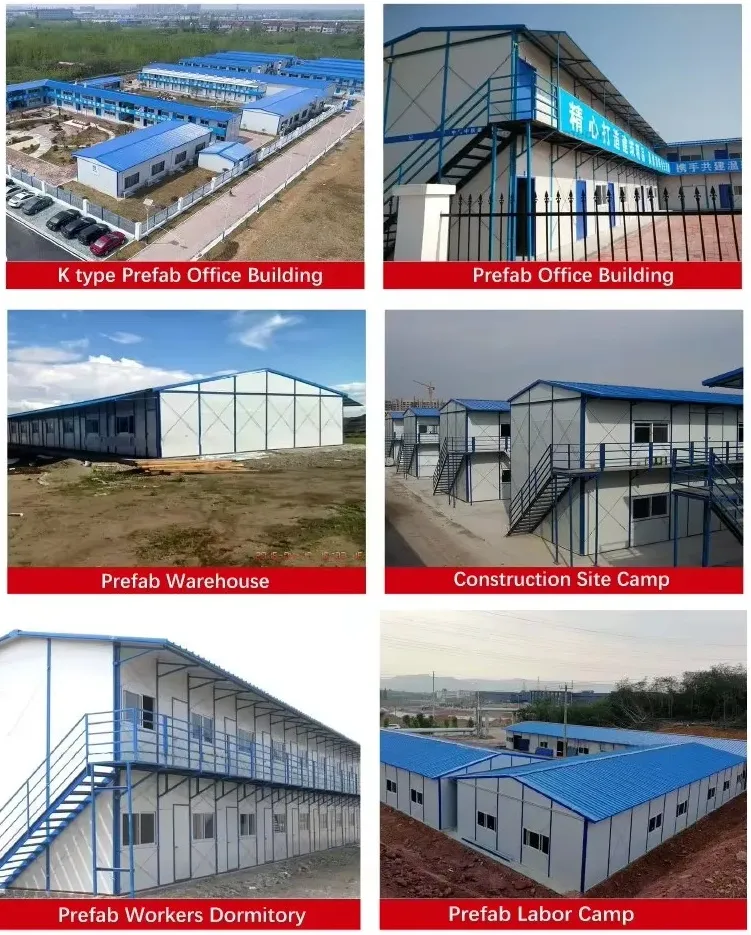

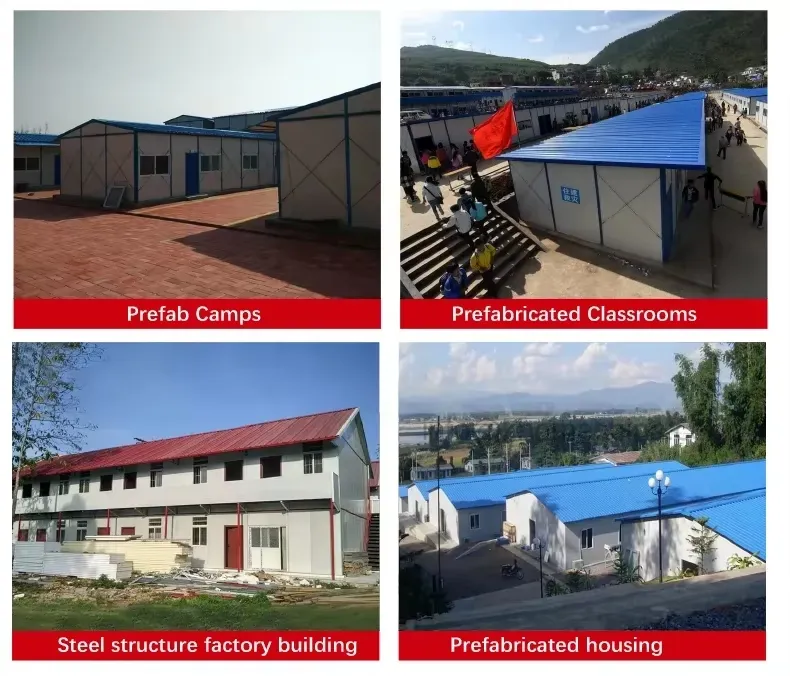

Prefabricated houses are versatile structures ideal for office buildings, warehouses, construction site camps, worker dormitories, labor camps, classrooms, and factory buildings. Their modular design allows for quick assembly and flexibility across various industries.

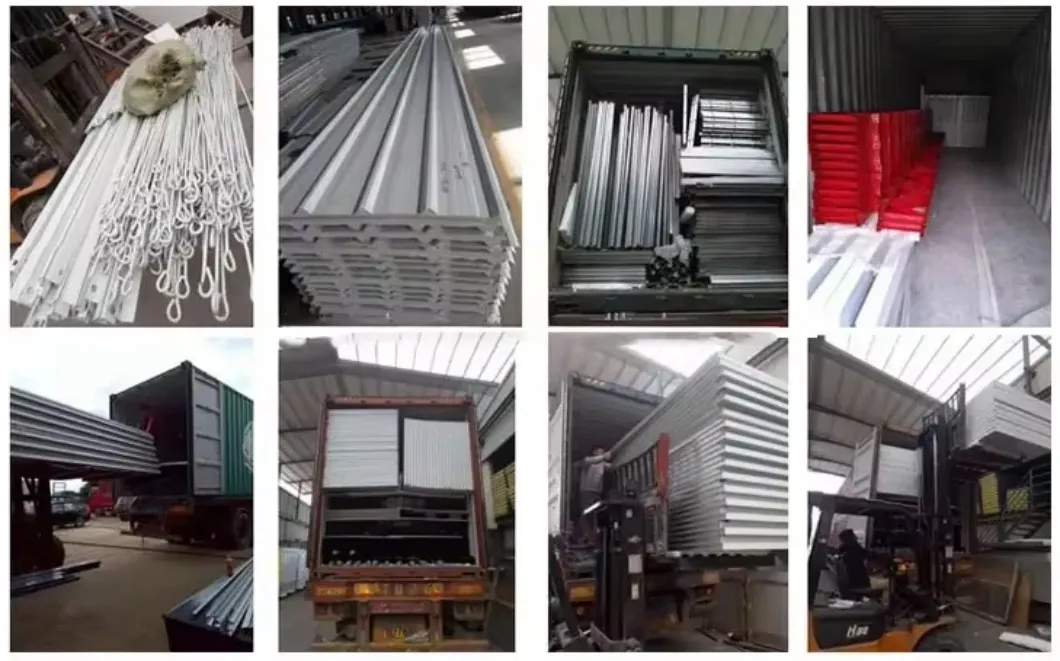

Designed for compact unassembled packing. A 300-350 sqm house can be packed into a single 40HQ container, significantly reducing international transport costs.
