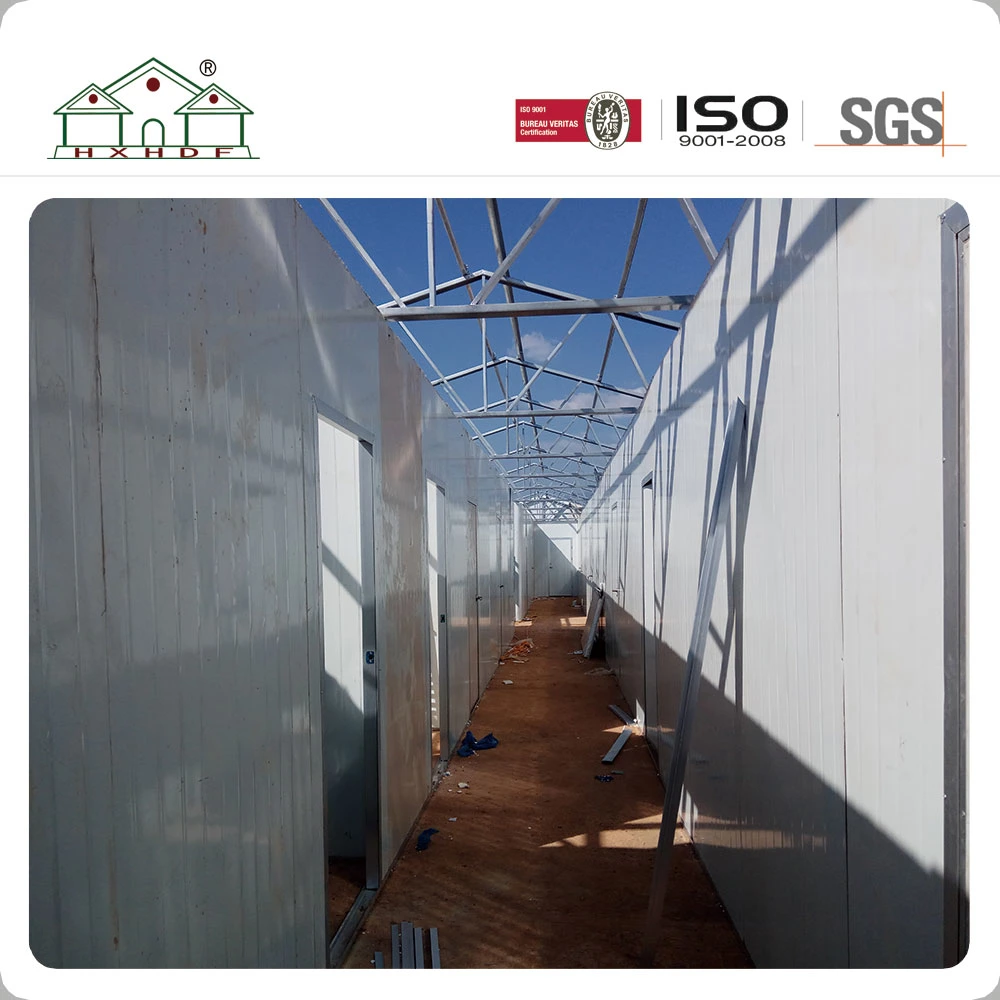

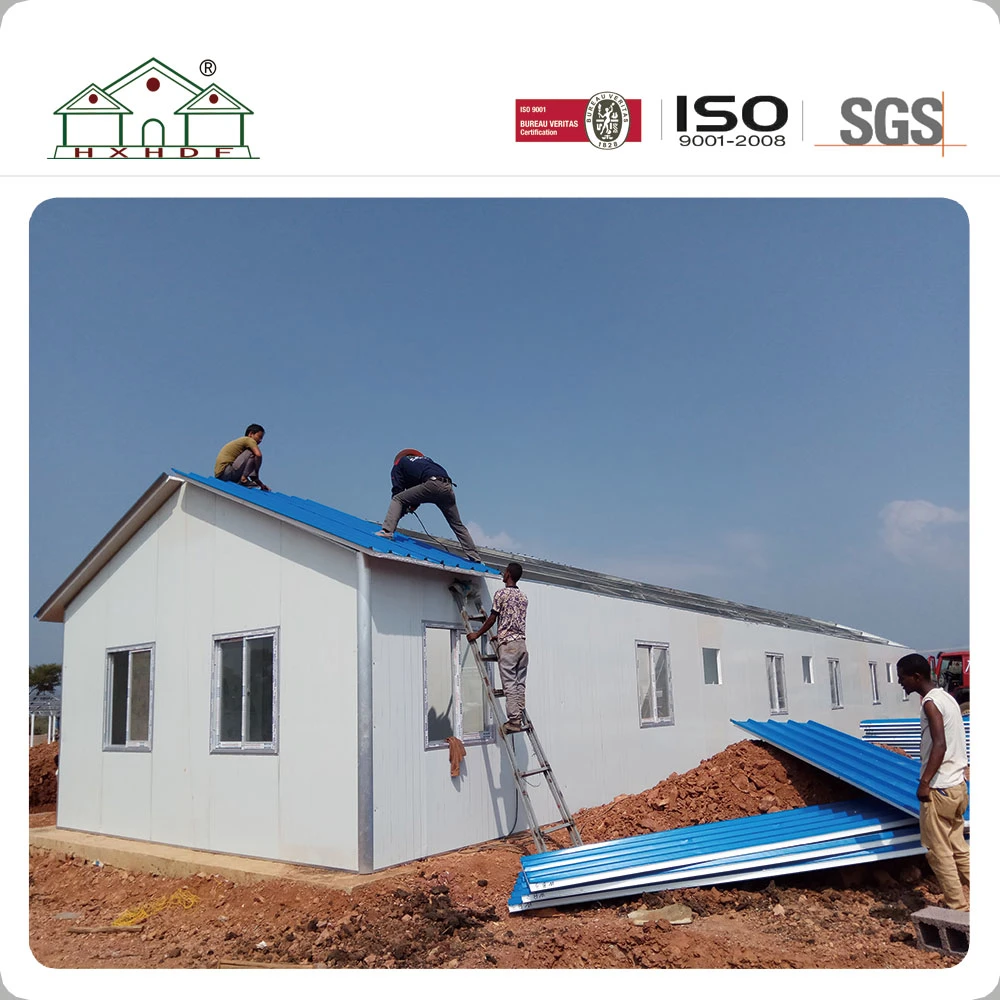

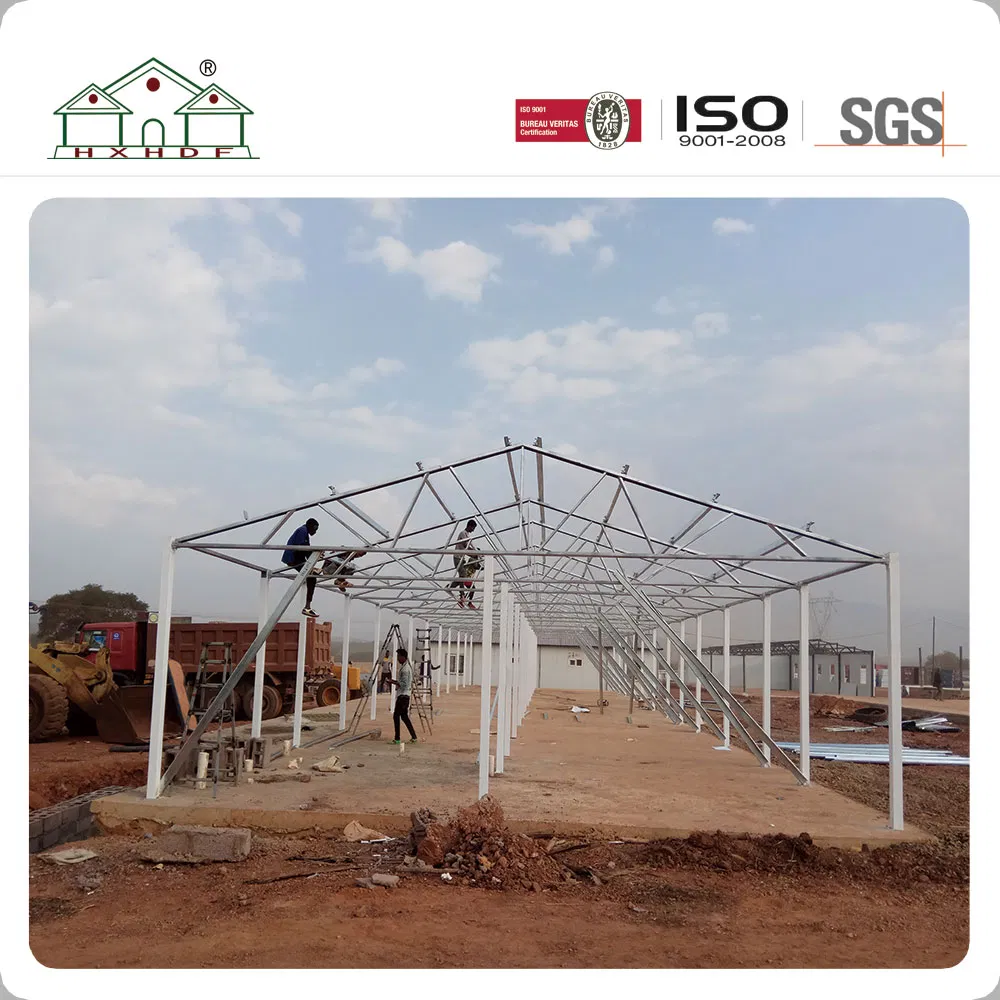

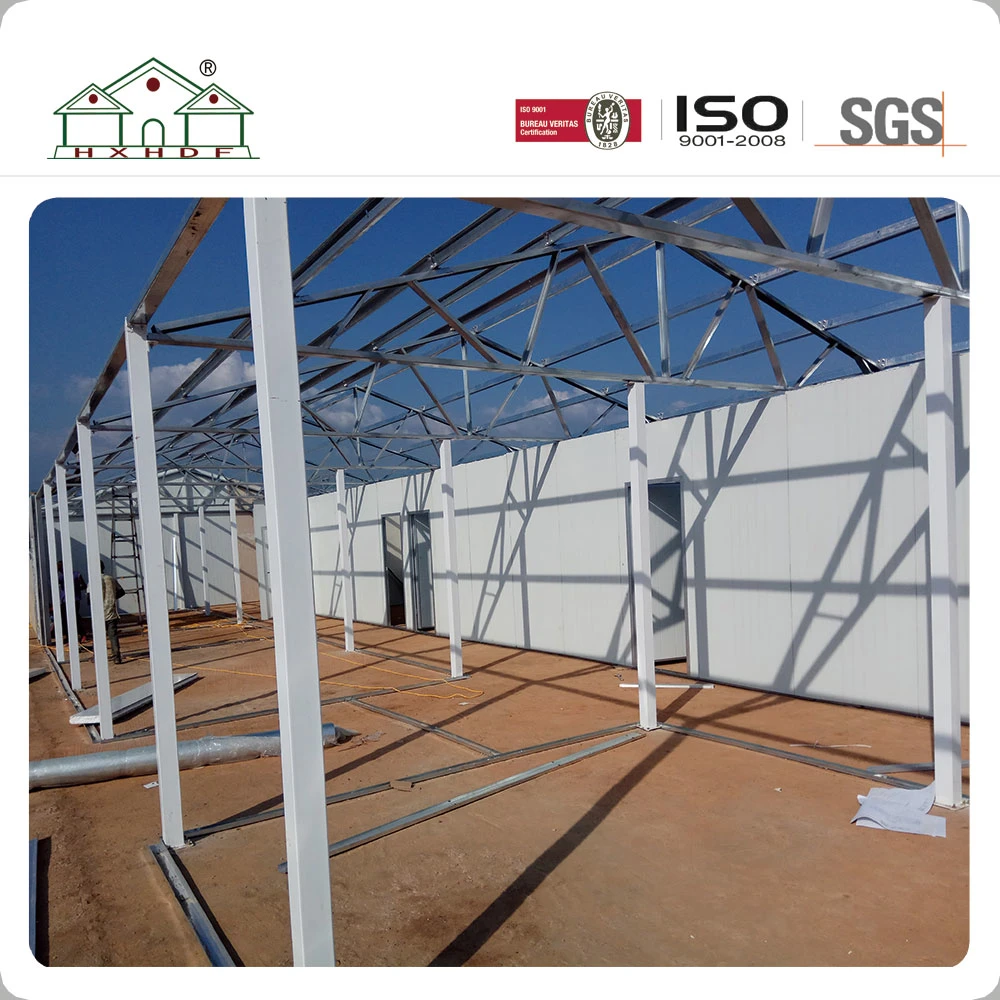

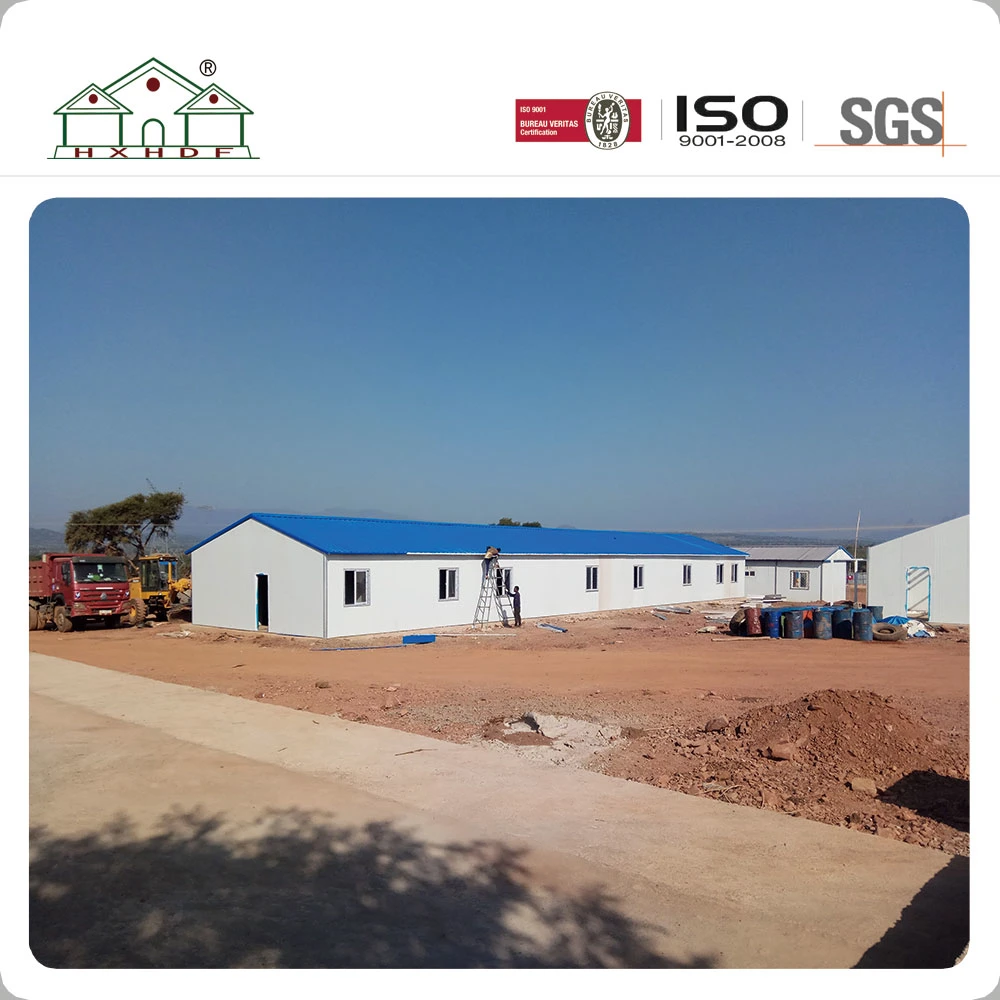

Prefab Light Steel EPS Sandwich Panel House/Dorm/Office in Ethiopia

1 / 5

Prefab Light Steel EPS Sandwich Panel House/Dorm/Office in Ethiopia

Customization:	Available
Application:	Office, Dormitory/Office/School/Shop
Material:	Sandwich Panel

Send Inquiry

Product Description

Basic Specifications

Model NO.

Prefab House

Structure

Light Steel Structure

Wall Panel

EPS/Rock Wool/PU/Glass Wool

Panel Thickness

50/75/100mm

Roof Type

Sandwich Corrugated Panel

Door

Steel Sandwich Panel/Steel Door

Window

Aluminium Alloy Sliding

Ceiling

PVC/Calcium Silicate Board

Floor

Fireproof Plywood/MgO Board

Life Span

15-20 Years

Usage

Temporary Offices/Dormitory

Certification

ISO

Origin

China

HS Code

9406900090

Product Description

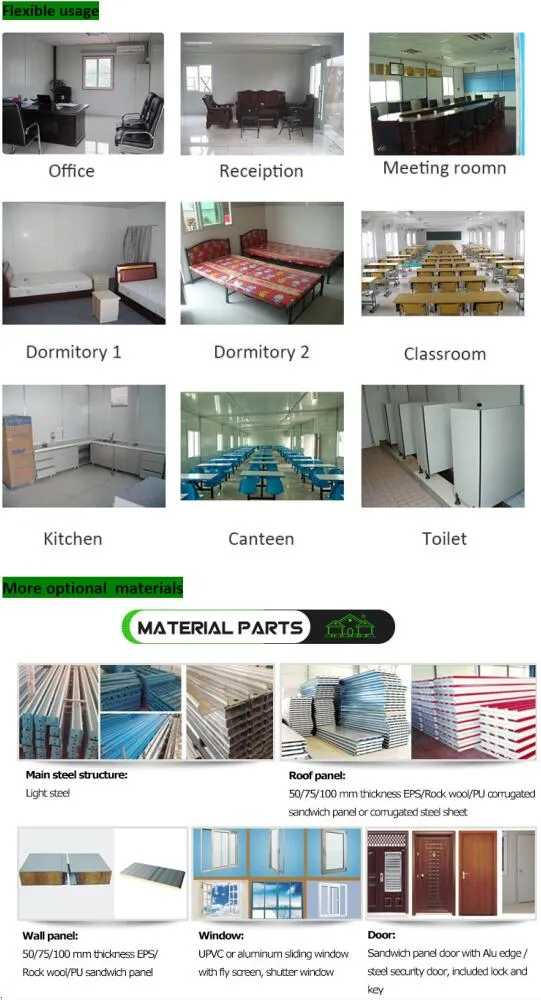

Prefab Light Steel EPS Sandwich Panel House Solutions

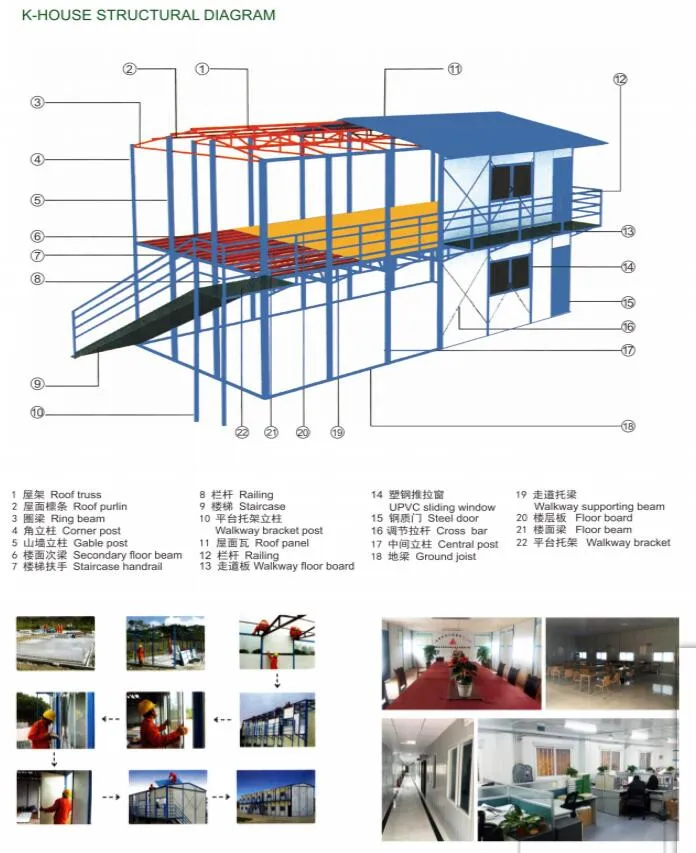

Product Name	Modular houses - K-style
Column	80# C style steel
Ground beam	80# C style steel
Floor beam	80# C style steel and 50# C style steel jointed
Roof Truss	80# C style steel welding & 40# angle steel purlin
Wall panel	50/75/100mm EPS/Rock wool/PU sandwich panel
Roof tile	30/50/75/100mm corrugated sandwich panel / steel sheet
Floor Material	Light magnesium board or plywood
Window	UPVC or aluminum sliding window with fly screen
Door	Aluminum frame with matching panel, security lock included
Steel structure	Anti-rust, painted finish. Includes rivets and screws

Technical Data & Performance

Roof Load: 0.3kn/m2
Floor Load: 1.5kn/m2
Wind Resistance: 0.3kn/m2 (Against level 10 typhoon)
Earthquake Resistance: Magnitude-7
Installation: 6 experienced workers can install 100sqm per day
Sustainability: Recyclable and eco-friendly materials

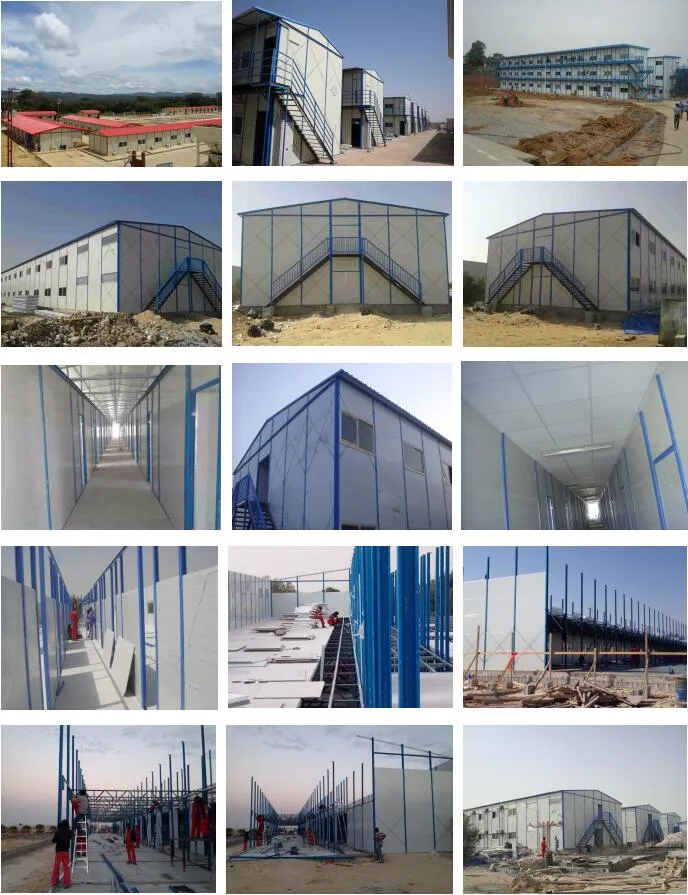

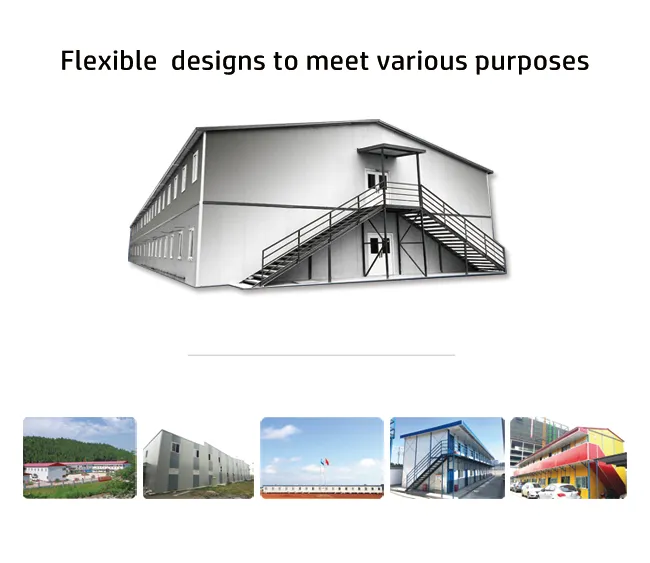

Project Showcase

Frequently Asked Questions

1. What are the advantages of this steel structure house compared to brick houses? It offers a long lifetime, excellent earthquake proofing, green energy saving, and fast, easy installation.

2. What is the expected life span of these houses? The structure is durable for more than 15 years with regular maintenance.

3. What is the maximum number of storeys for this kind of house? Typically up to 3 storeys due to shipping container loading limits and structural design.

4. How long does it take to install the house? A team of 6 experienced workers can efficiently install approximately 100sqm per day.

5. How many square meters can fit into a 40HQ container? Approximately 300 square meters can be loaded into a single 1 X 40HQ container.

6. Can the layout and size be customized? Yes, the structure and panels can be customized according to specific project requirements including veranda and garage options.
