Ruifa Modular House
Ruifa Modular House

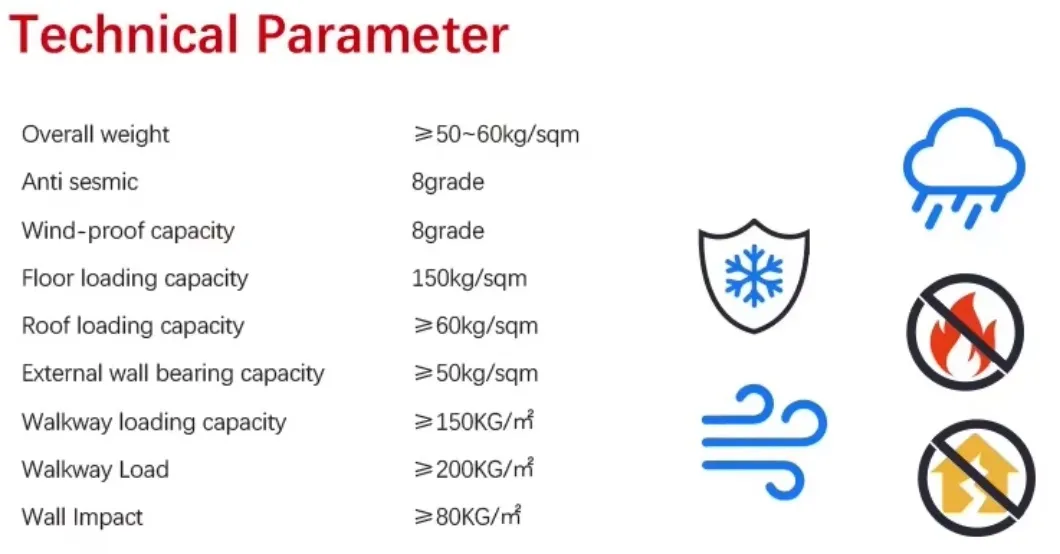

| Model NO. | TST-PH010 |
|---|---|
| Feature | Earthquake Resistant, Easily Movable, Eco-Friendliness, Safe, Waterproof, Wind Resistance |
| Material | Container |
| Order(MOQ) | 1 |
| Frame Structure | "C" Section Steel |
| Wall Panel | EPS/Rockwool/PU/ Fiber Glass Wool Sandwich Panel |
| Roof Load | up to 0.6 kN/Square Meter |
| Loading Capacity | 150 Kg/Square Meter |
| Grade | 7 Grade Earthquake & 10 Grade Typhoon |
| Life Time | 15-25 Years |

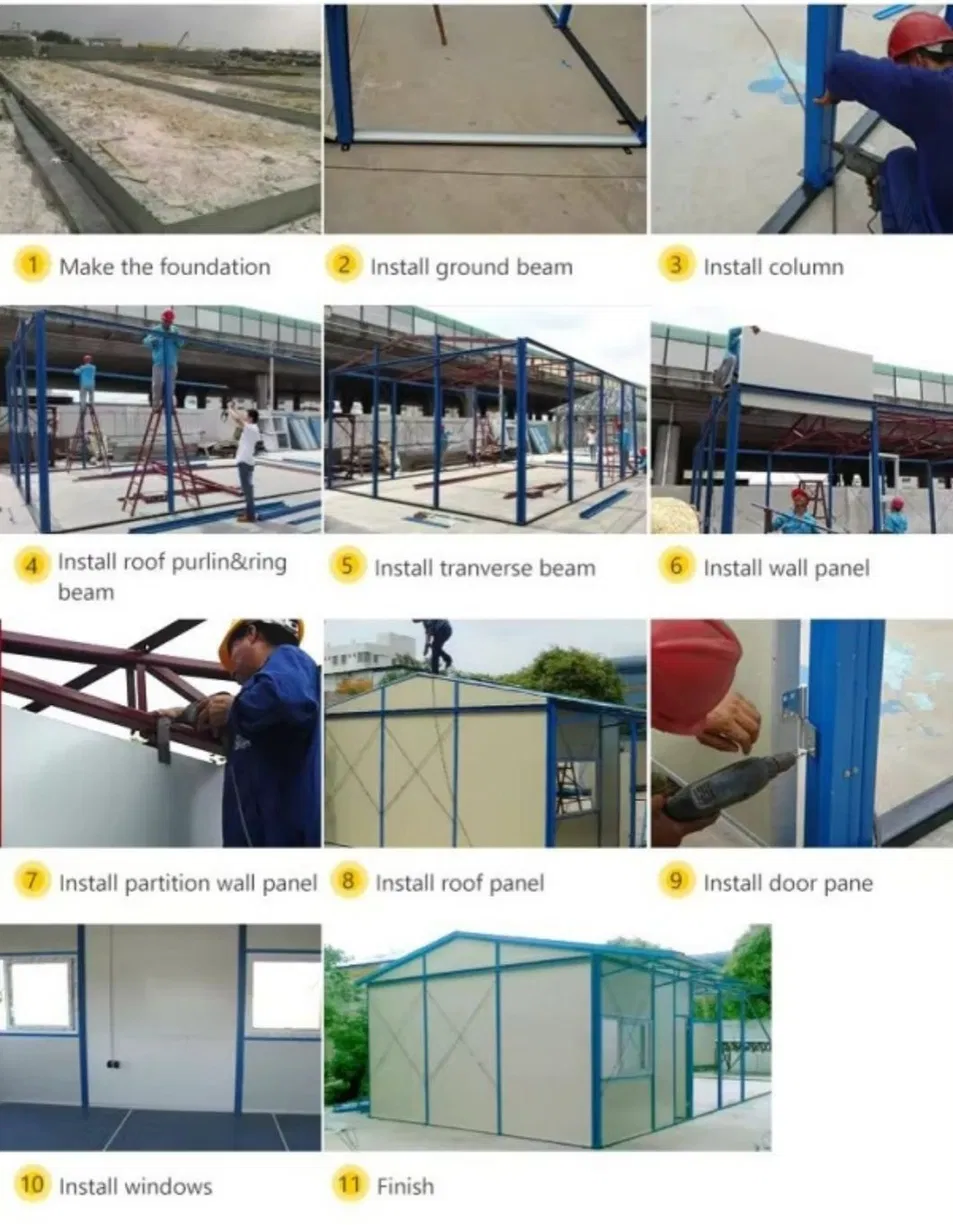

| Installation | 100 Sqm/1 Day/6 Workers |
| Origin | China |

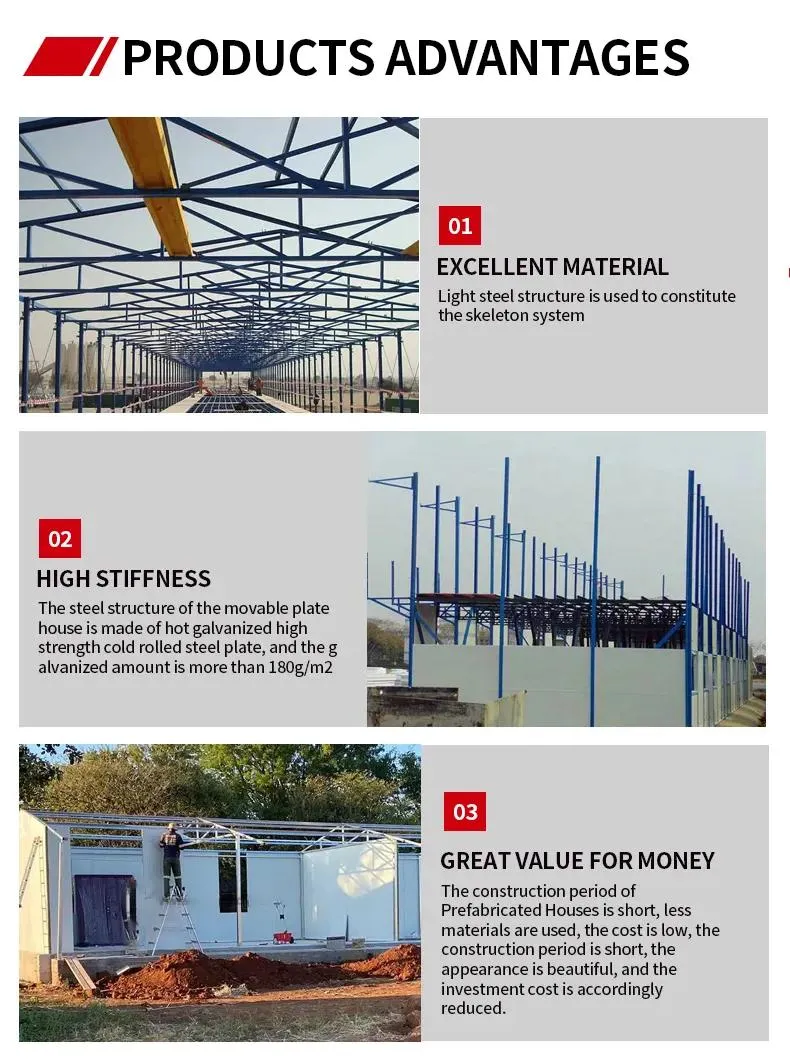

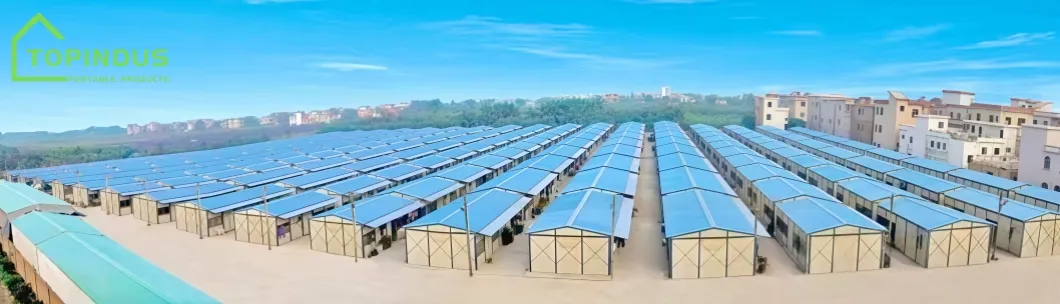

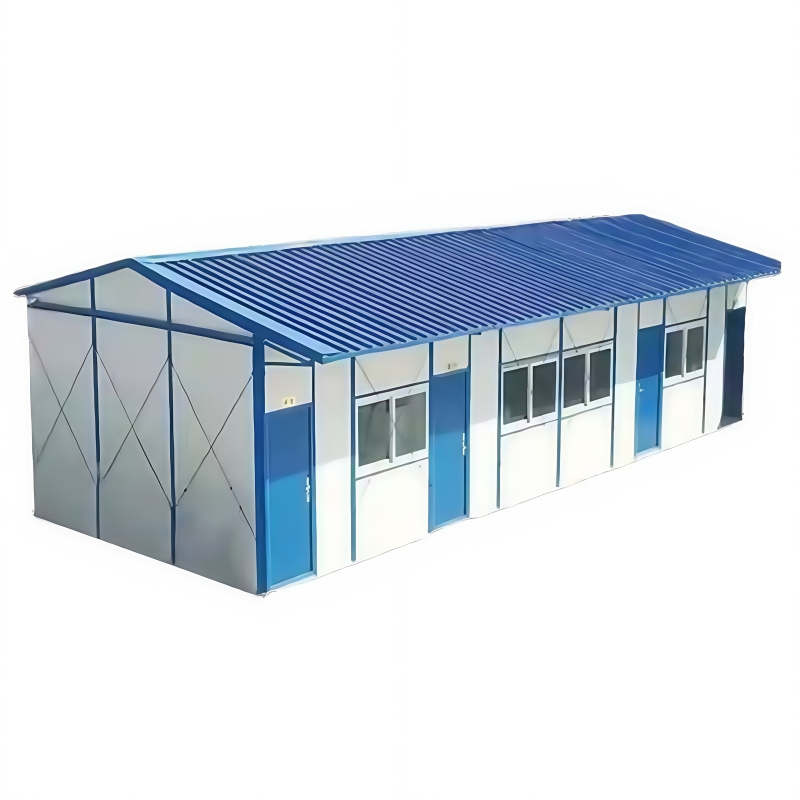

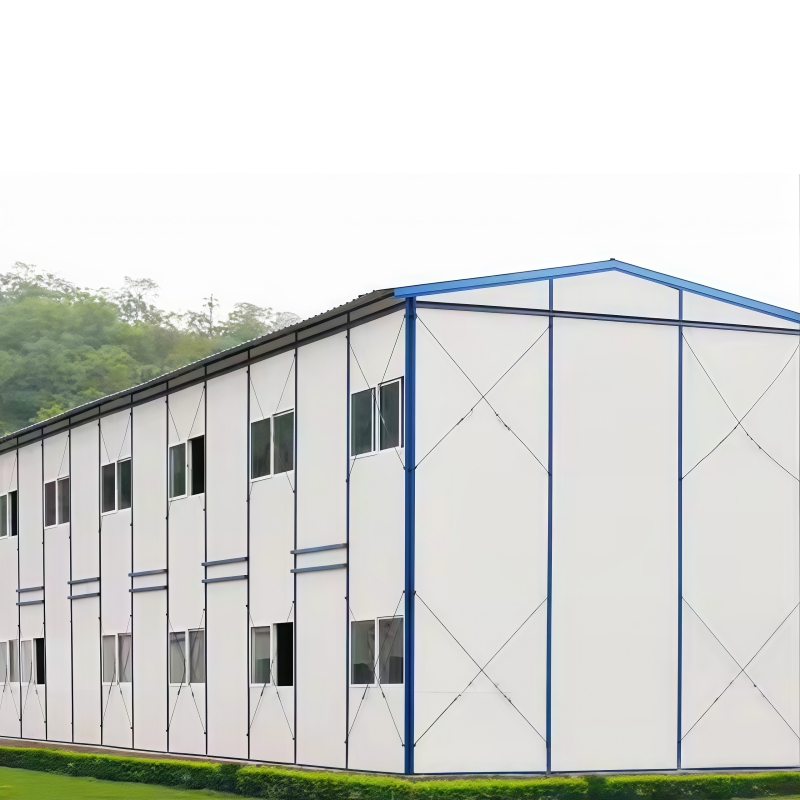

This prefabricated structure is engineered for durability, functionality, and cost efficiency, combining advanced materials with innovative design. Its core framework utilizes a lightweight steel structure to form a robust skeletal system, ensuring exceptional load-bearing capacity while maintaining portability and ease of assembly.
The high-stiffness construction is achieved through hot-dip galvanized high-strength cold-rolled steel plates, which provide superior resistance to corrosion, deformation, and environmental wear, guaranteeing long-term structural integrity.

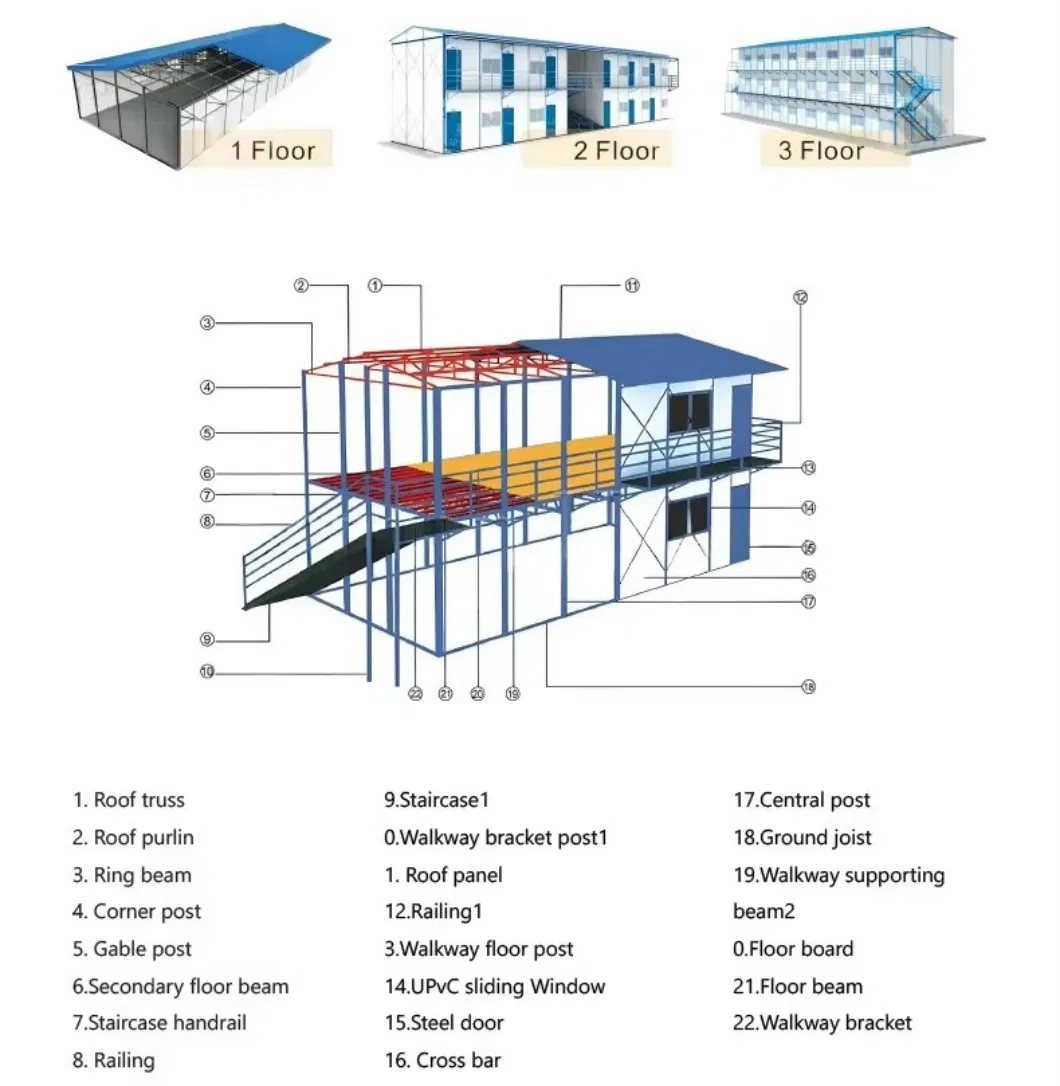

Primary Framework: Roof Truss constructed from hot-dip galvanized steel to distribute vertical and horizontal loads efficiently.
Support Systems: Corner & Gable Posts made from cold-formed steel channels anchored at critical junctions.
Flooring & Enclosure: Galvanized steel I-beams combined with insulated sandwich panels (EPS/PU) for maximum thermal efficiency and fire resistance.
| Sort | Name | Specification |
|---|---|---|
| Size | Specification | Length customized; Width: 3T, 4T, 5T, 6T, etc. |
| Standard | Wall/Roof | EPS/Glass Wool/Rock Wool (50/70/100mm) |
| Standard | Door | Sandwich Panel/Steel/Security Door |
| Standard | Window | PVC Sliding/Aluminum Alloy Glass |
| Structure | Pillar/Truss | Square Tube 80*80 / 100*100 / 40*80 |
| Optional | Ceiling | Calcium Silicate Board/PVC Ceiling |
| Optional | Floor | PVC Flooring Sheet/Tiles/Polywood |

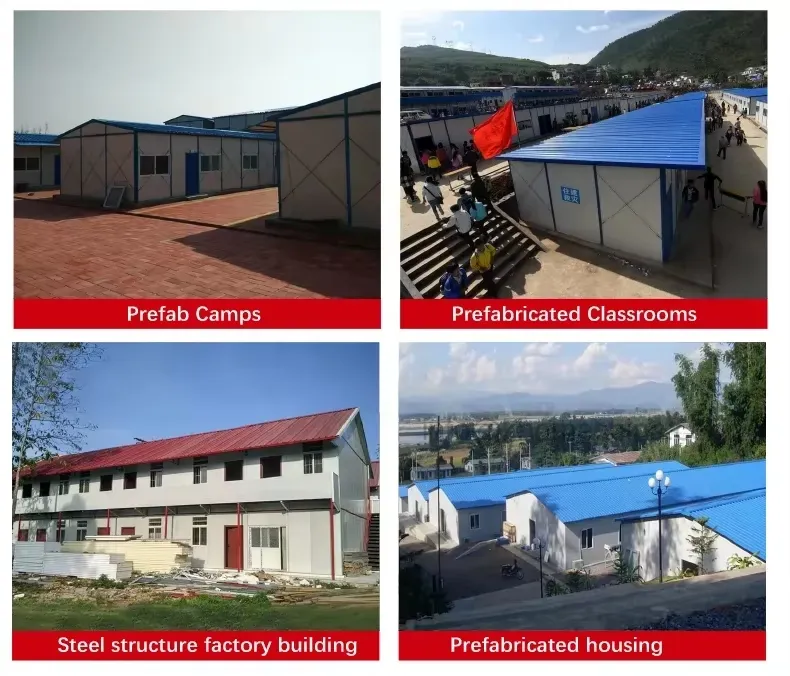

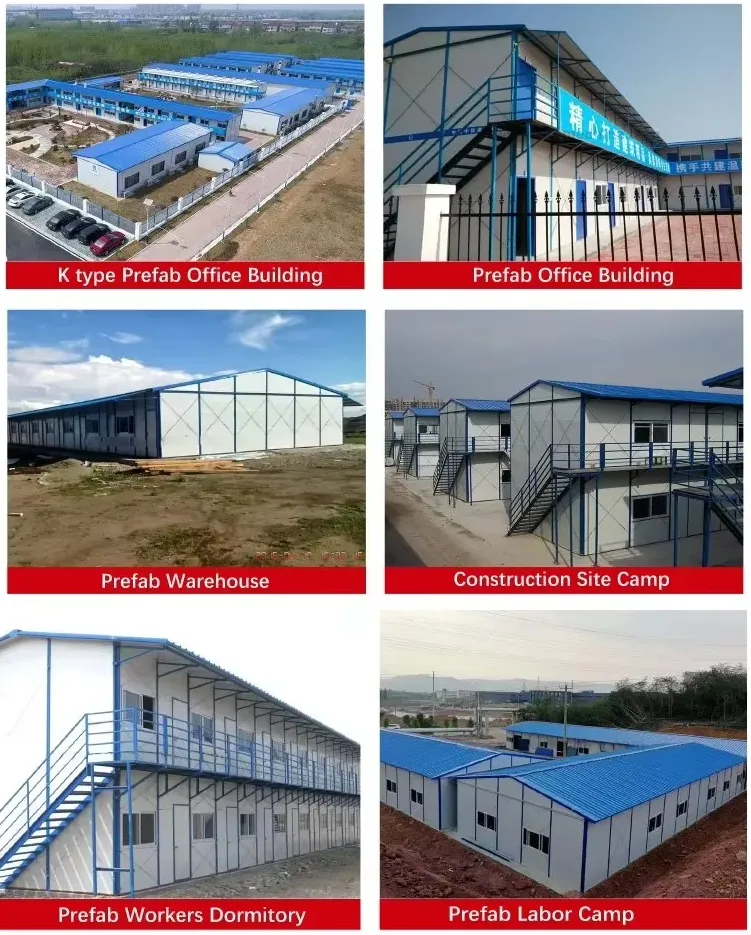

Our prefabricated houses are versatile and ideal for: Office Buildings, Construction Site Camps, Worker Dormitories, Classrooms, and Residential Homes. They offer a quick, cost-effective alternative to traditional construction.

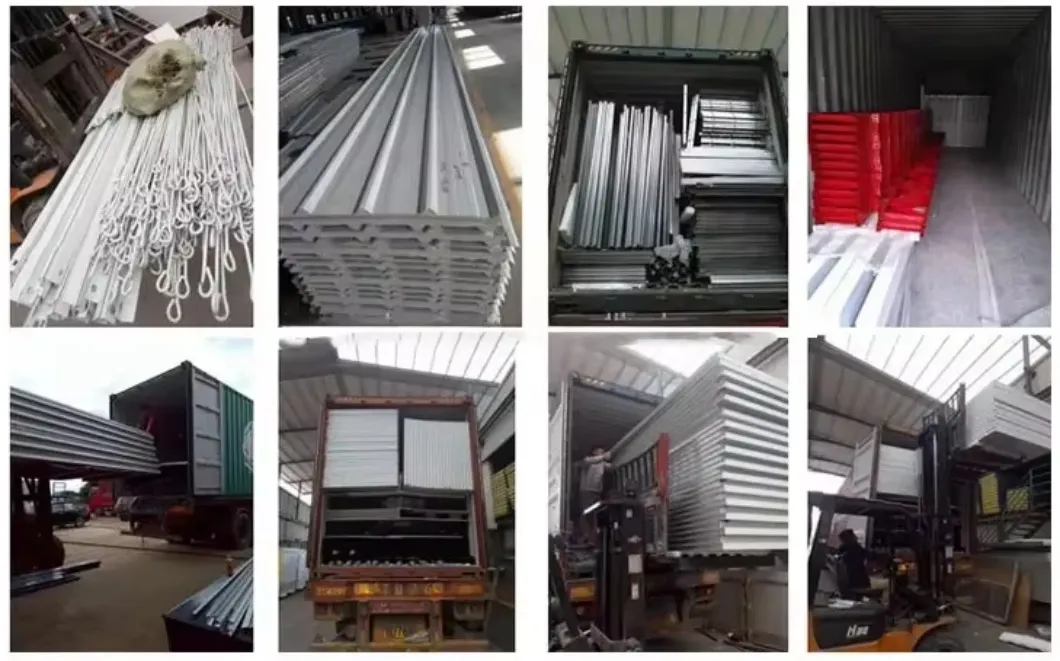

Designed for bulk packing, components for a 300-350 sqm area can fit into a single 40HQ container. This significantly optimizes space and reduces international transportation costs.
