Ruifa Modular House
Ruifa Modular House
| Model NO. | 150 | Surface Treatment | Galvalume, Az275 |
| Material Grade | G550/G350 | Tolerance | +-2mm |
| Insulation | Polyurethane, Rockwool, Glasswool, EPS | Accessories | Aluminum Window, Thermal Broken Door |
| Wind Load | 285 Km/Hour 180 Miles/Hour | Snow Load | Max. 200 Kg/Sqm |
| Earthquake Scale | Ritcher 8 | Warranty | 5 Years |
| Certification | CE, ISO | Origin | China |

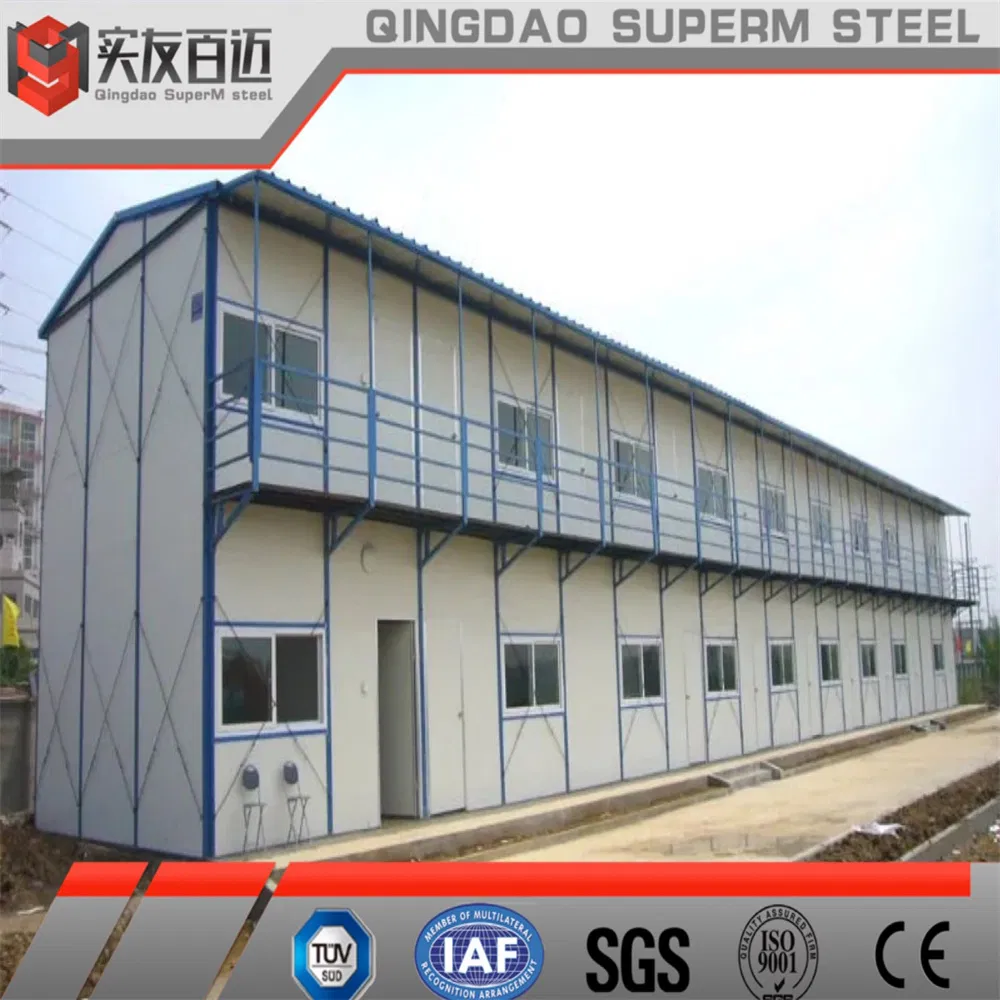

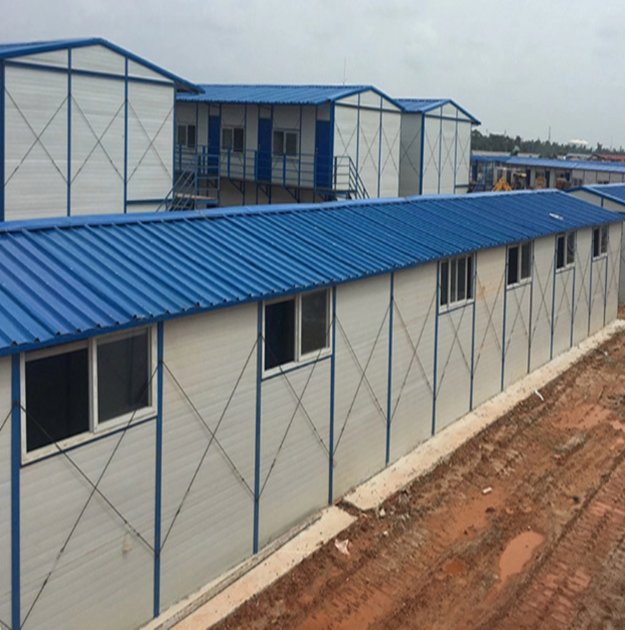

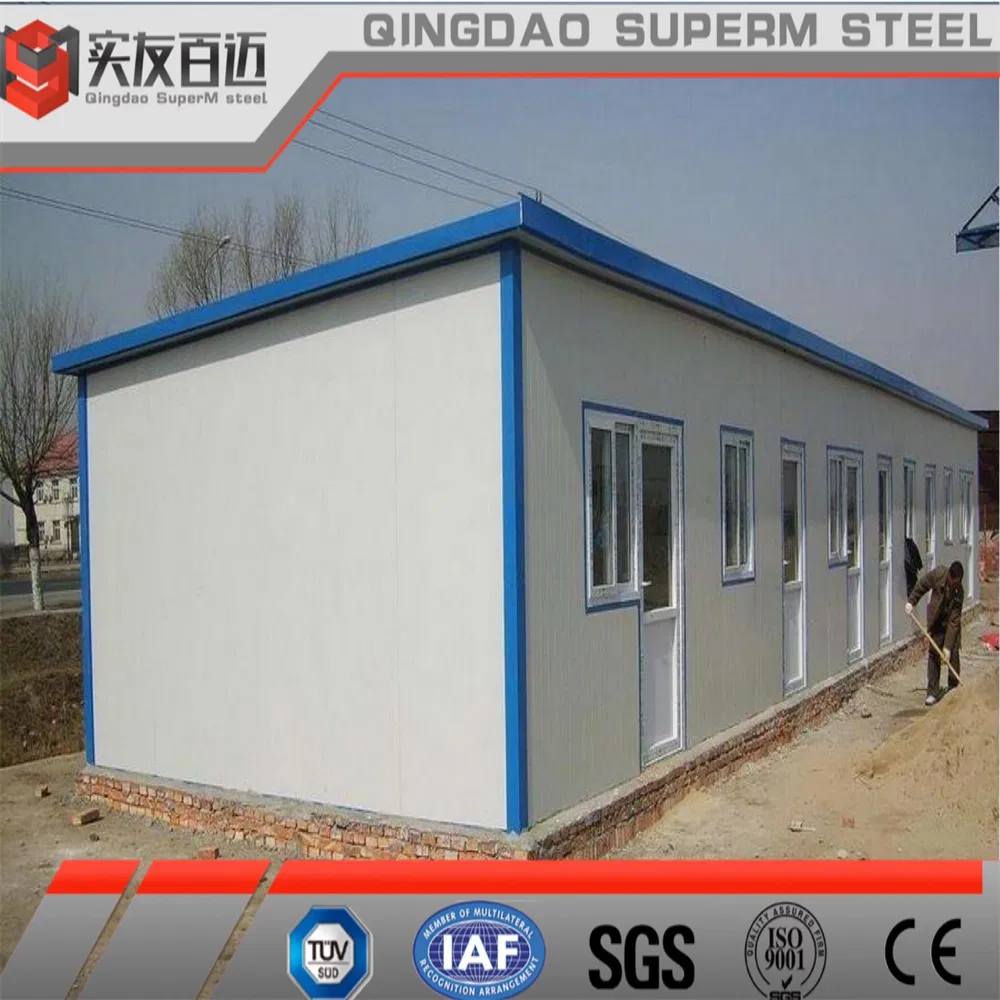

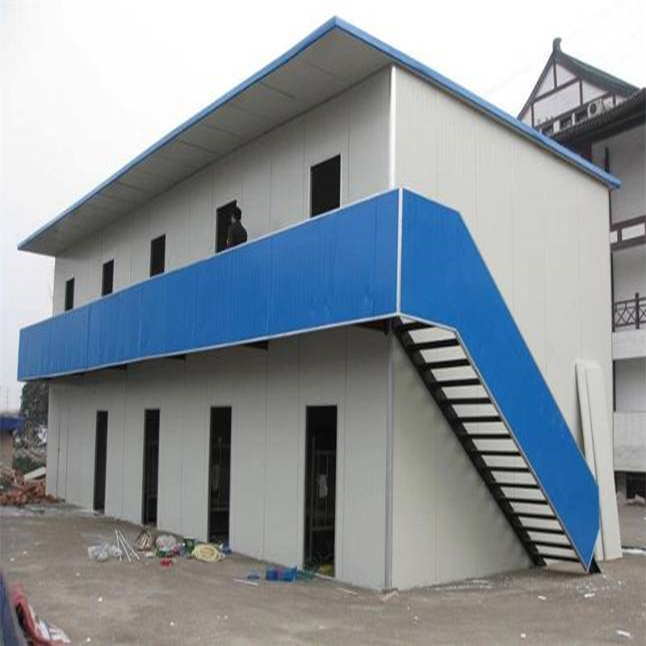

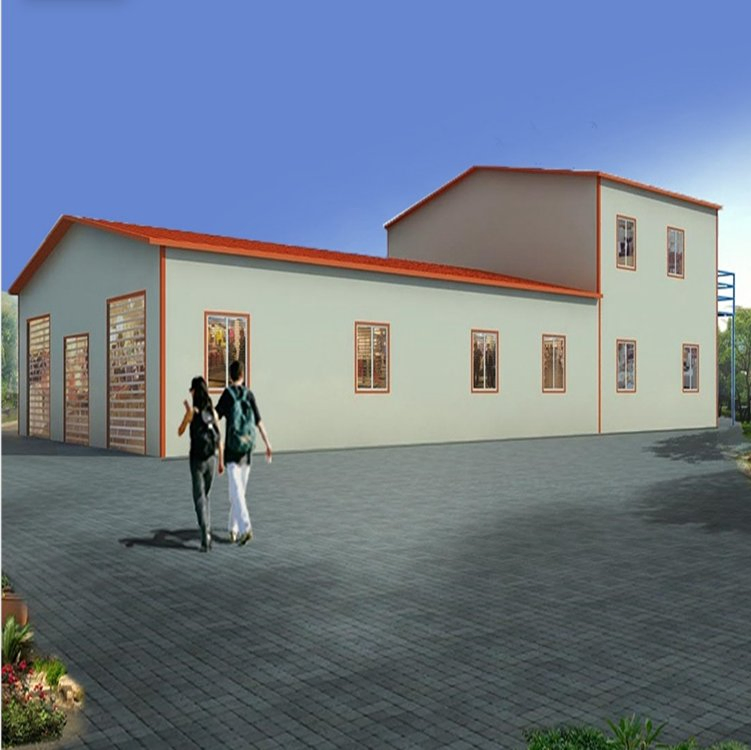

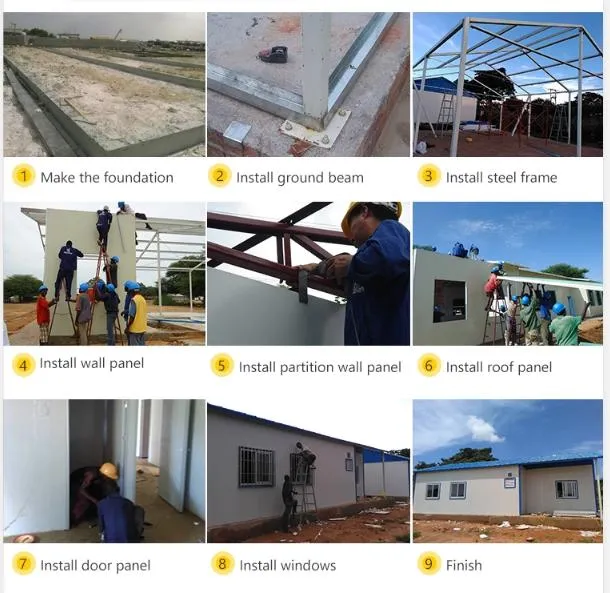

EPS Sandwich panel k type prefab house fast installation

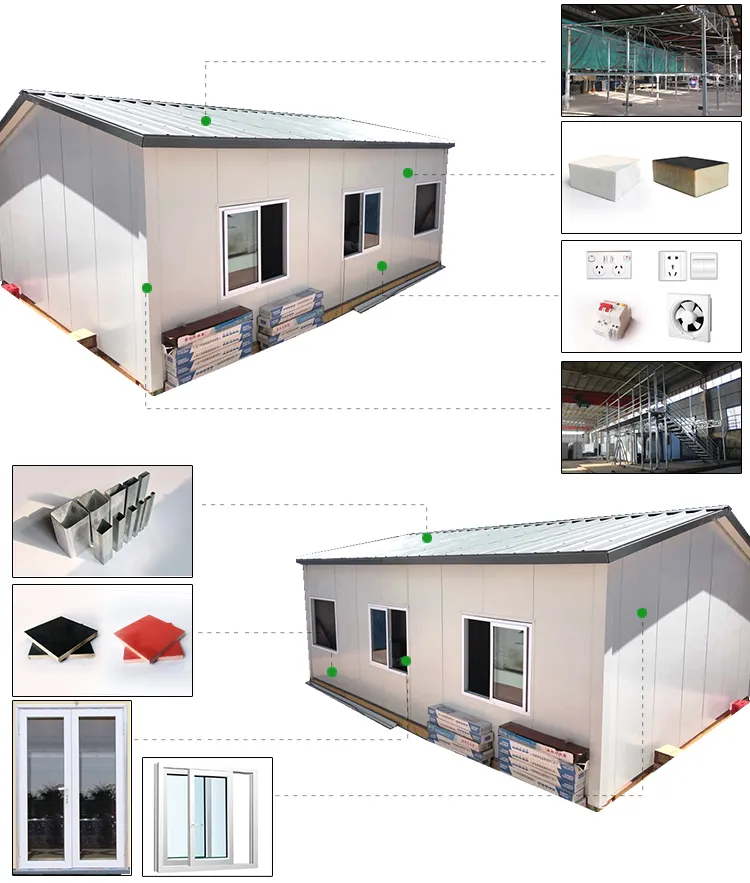

| Size | As request of clients |
| Color | According to the request of clients |
| Structure | Steel base: Q235, hot galvanized. 2mm power coated steel as main beam and 1.5mm steel as second beam; Column: 3mm steel, hot galvanized; Roof system: Q235, 3mm power coated steel. |

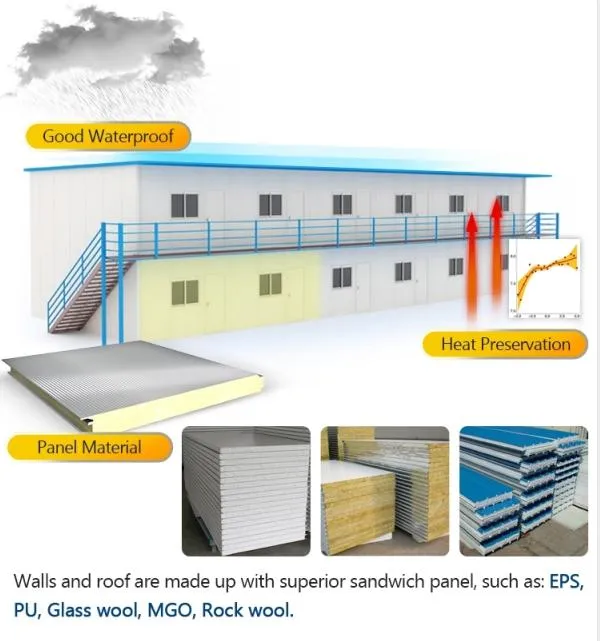

| Wall panel | 50mm Glass wool sandwich panel/EPS |
| Roof | Color steel sheet + 40mm glass wool insulation + ceiling |
| Floor | 16mm MgO Panel, with 2mm vinyl sheet |
| Window/Door | Alu Sliding window; Steel door with handle lock and keys |
| Electrical | 1 distribution, 2 industrial plugs, 2 lights, 2 switches, 3 sockets (220V/50Hz) |
| Performance | Wind resistance: Grade 11; Floor load: 0.5KN/sqm; Roof load: 1.5KN/sqm |
Design Capability: Using Auto CAD, PKPM, 3DMAX, SAP2000, Tekla, Vertex etc. to meet custom requirements.

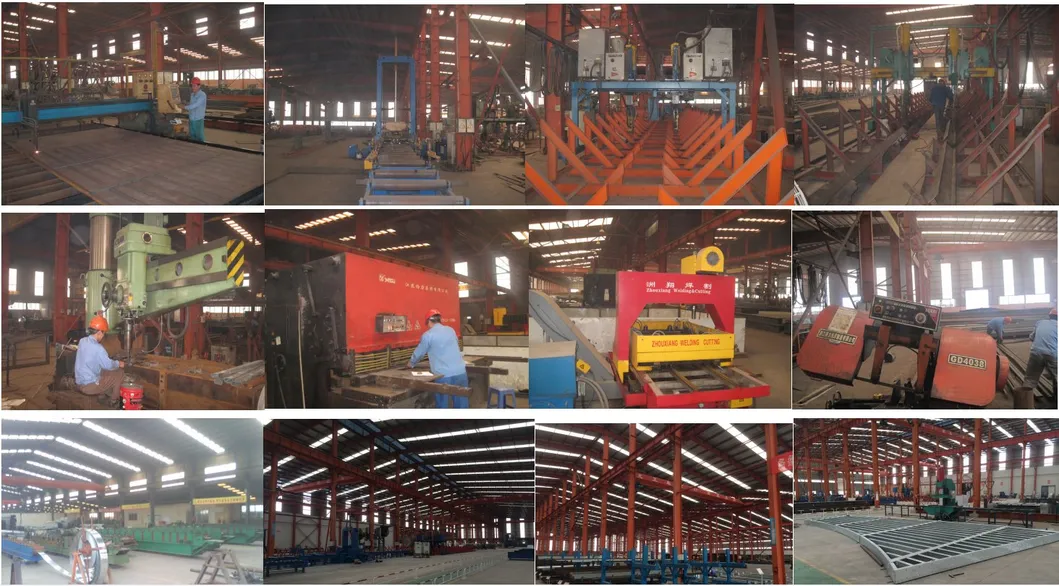

Our facility includes 40,000 SQM total area with dedicated lines for built-up H profiles, C/Z purlins, and various sandwich panels (EPS, Glasswool, Rockwool).
We serve customers in more than 40 countries across Europe, Africa, Middle East, Asia, and the Americas, including Germany, UAE, Russia, Australia, and the USA.
