Temporary Building Prefabricated House for Efficient Emergency Medical Shelter Needs
Temporary Building Prefabricated House for Efficient Emergency Medical Shelter Needs
Temporary Building Prefabricated House for Efficient Emergency Medical Shelter Needs
Temporary Building Prefabricated House for Efficient Emergency Medical Shelter Needs
Temporary Building Prefabricated House for Efficient Emergency Medical Shelter Needs
1 / 5
Temporary Building Prefabricated House for Efficient Emergency Medical Shelter Needs
Temporary Building Prefabricated House for Efficient Emergency Medical Shelter Needs
Temporary Building Prefabricated House for Efficient Emergency Medical Shelter Needs
Temporary Building Prefabricated House for Efficient Emergency Medical Shelter Needs
Temporary Building Prefabricated House for Efficient Emergency Medical Shelter Needs

Temporary Building Prefabricated House for Efficient Emergency Medical Shelter Needs

Customization: Available
After-sales Service: 1 Year
Certification: CE Certification
Send Inquiry

Product Description

Basic Information

Model NO.
9SA01
Material
Q235B Steel+ Sandwich Panel
Door
Glass Window Door
Window
Plastic Steel Window
Advantage
Quick Installation
Color
Customized Color
Specification
6000*3000*2800mm
HS Code
940690
Capacity
3000 units/Month
Gross Weight
2000.00kg
Prefabricated House Banner
Efficiency Features

Product Description

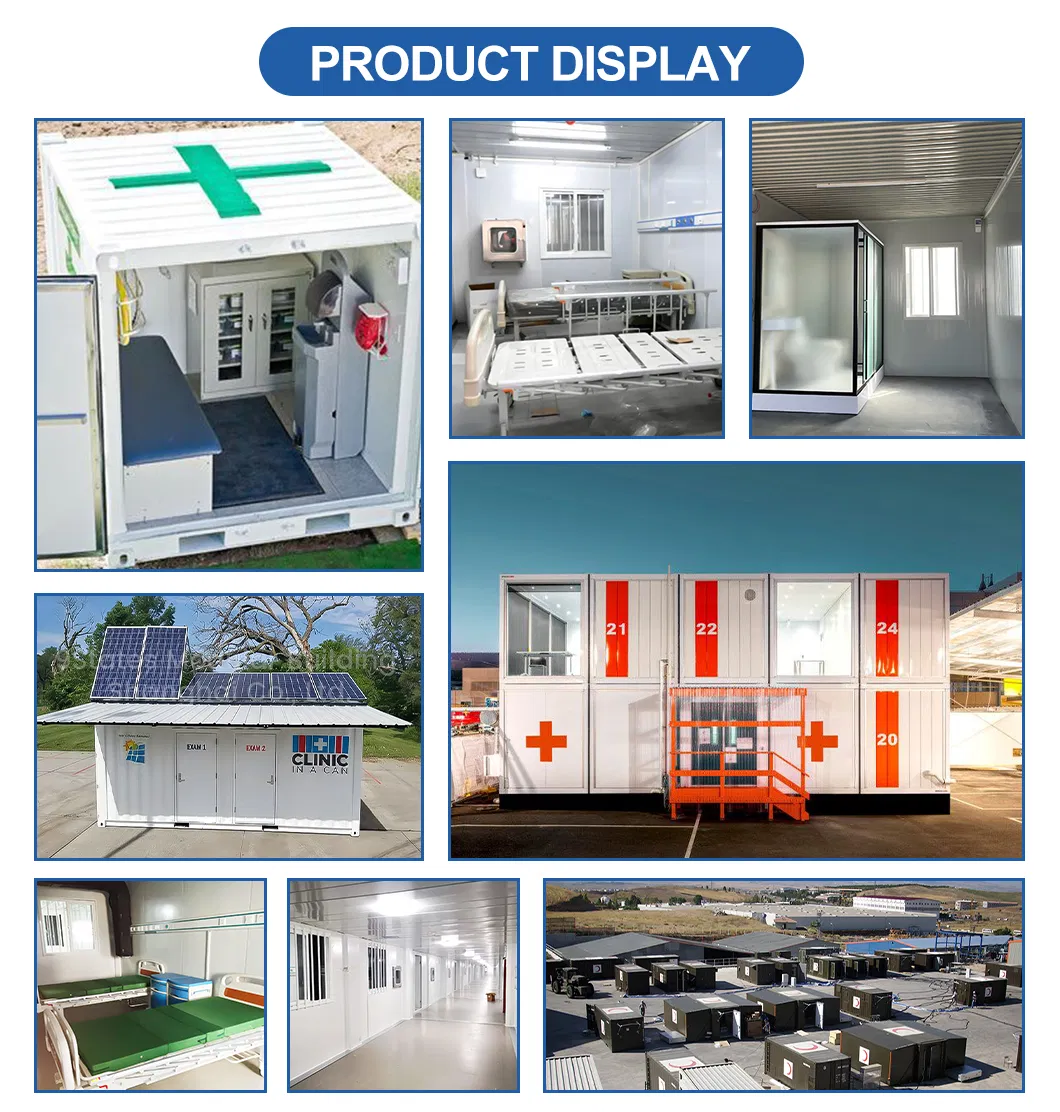

Product Structure
Core Features
Modular Design: Standardized units (6m long) for flexible horizontal or vertical stacking.
Robust Structure: Q235B steel frame, wind resistance up to level 10-12, seismic resistance level 6-8.
High Mobility: Integrated unit easily transported by forklift or trailer without disassembly.
Short Construction: Factory prefabricated. 3 people can install a modular house in just 3 hours.
Core Functions
Residential: Complete system with bedroom, kitchen, and bathroom facilities.
Office: Partitioned rooms with pre-installed power, network, and lighting.
Commercial: Adaptable for shops, cafes, or ticket booths with display windows.

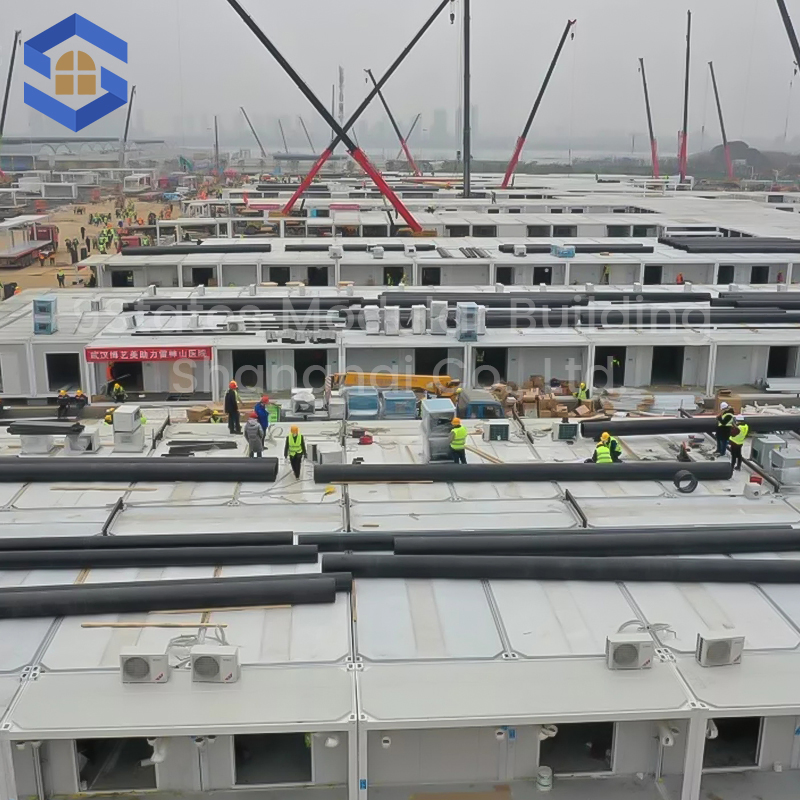

Emergency: Rapid deployment for disaster relief or medical isolation points.

Technical Specifications

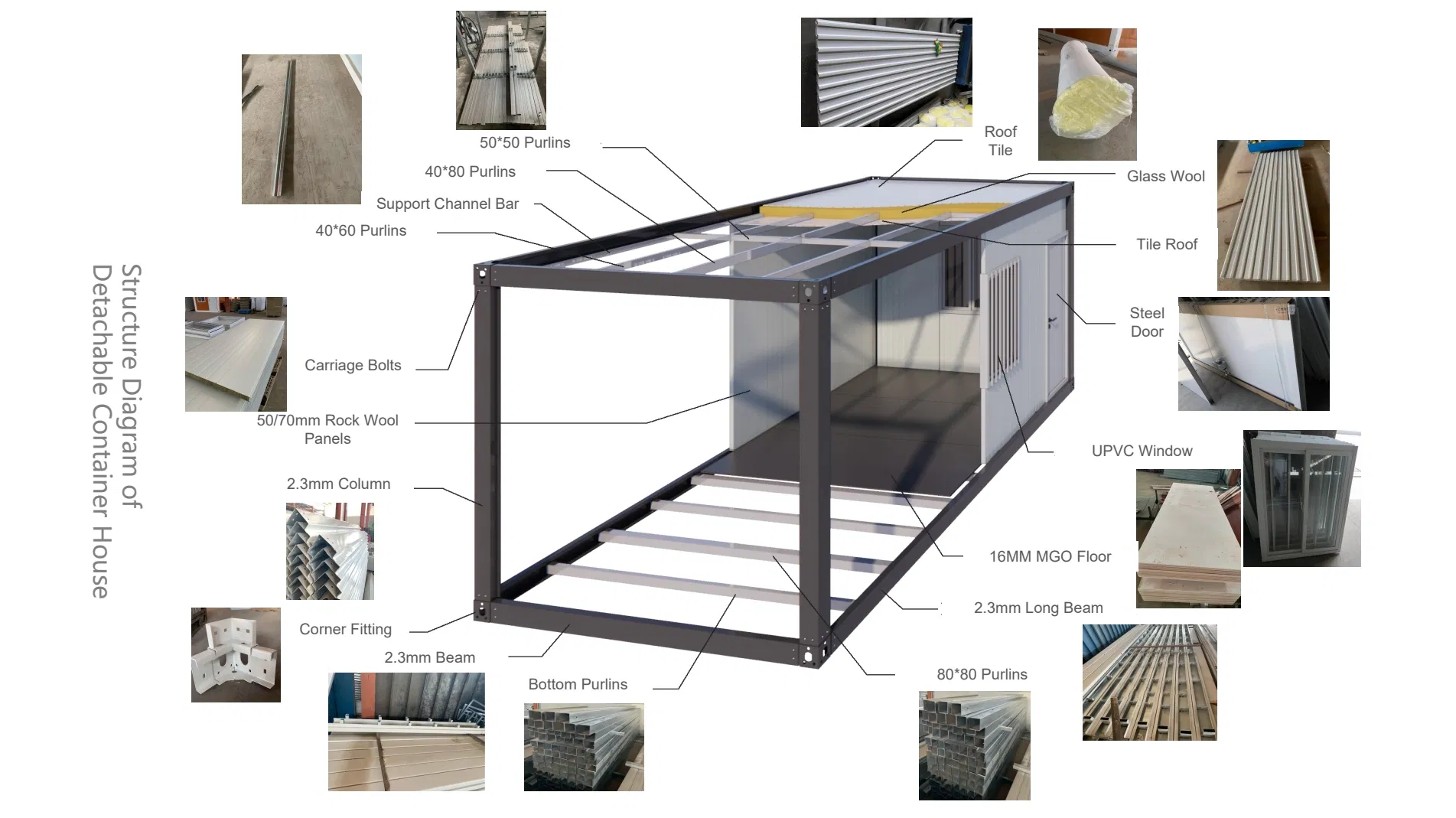

Materials Overview
Wall Panel0.3mm color steel + 50mm rock wool sandwich panel
DoorSteel door, W840mm x H2035mm, 0.5mm panel, fireproof
WindowUPVC sliding window, double hollow glass (5+9+5) with anti-theft rod
Roof0.4mm Thickness 980 Type Color Steel pressure type tile
Floor18mm cement fiberboard + 1.6mm PVC floor leather
FrameGalvanized roller beam (2.5mm thick) and C-type steel secondary beams
Wind LoadLevel 11
Earthquake ResistanceGrade 7
Temperature Range-20°C to 50°C
Technical Drawing 1

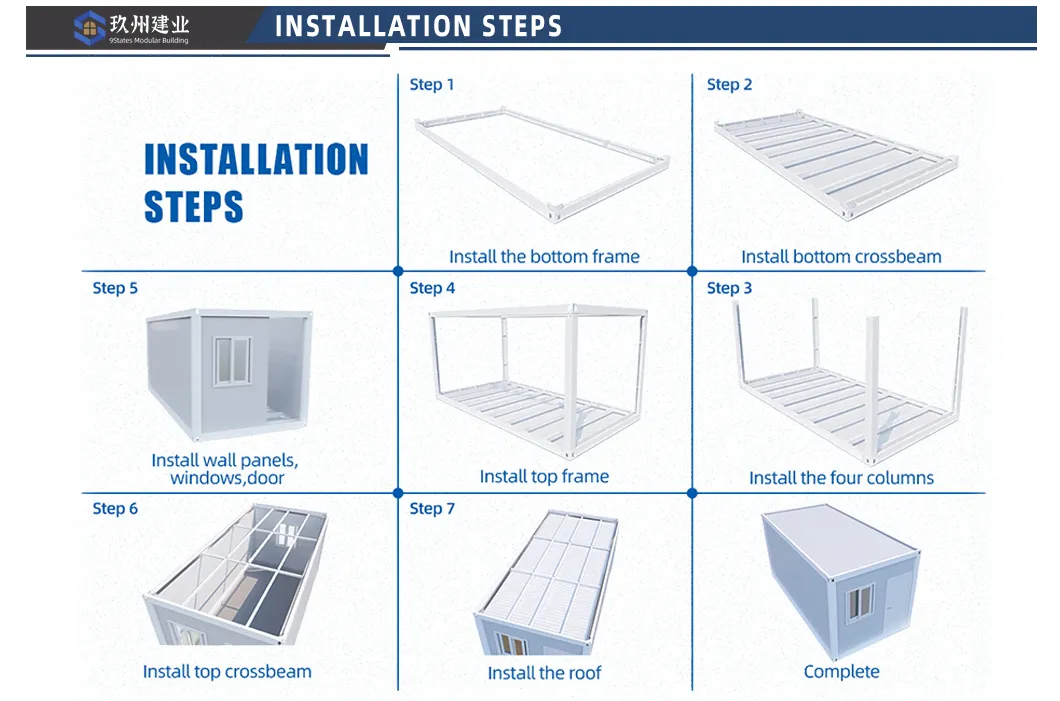

Technical Drawing 2
Internal Configuration

Manufacturing & Certification

Production Process

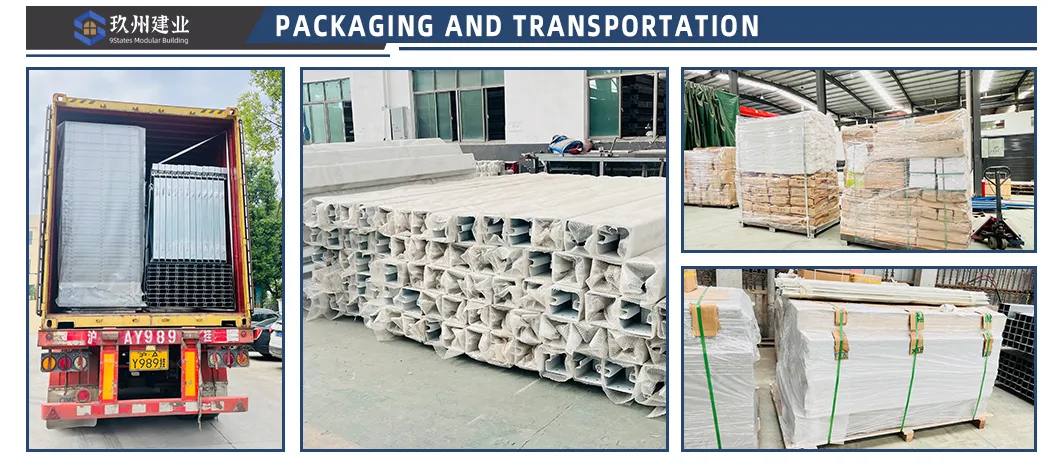

Packing and Transportation
Certifications

Frequently Asked Questions

Q: Do you provide on-site installation service?
We provide detailed installation drawings and videos for every project. For large projects, we can provide on-site workers and supervisors upon negotiation.
Q: What is the typical delivery time?
Normally, delivery is 15 days after the deposit is received. Delivery time for large orders is subject to negotiation.
Q: How is product quality controlled?
Quality is ensured through high-quality design solutions, qualified raw material selection, precise manufacturing techniques, and strict quality inspections by experienced workers.
Q: What is the expected service life?
Under conventional climate and environmental conditions, the service life of the container house steel frame is approximately 20 years.
Q: How do the products adapt to different climates?
We offer reinforced structures for high-wind regions, increased insulation thickness for cold regions, and specialized anti-corrosive coatings for high-corrosion environments.
Q: What is the warranty period for quality problems?
The warranty period is 2 years. Within this period, we are responsible for quality issues caused by the production process.
