Steel Structure Warehouse Features:

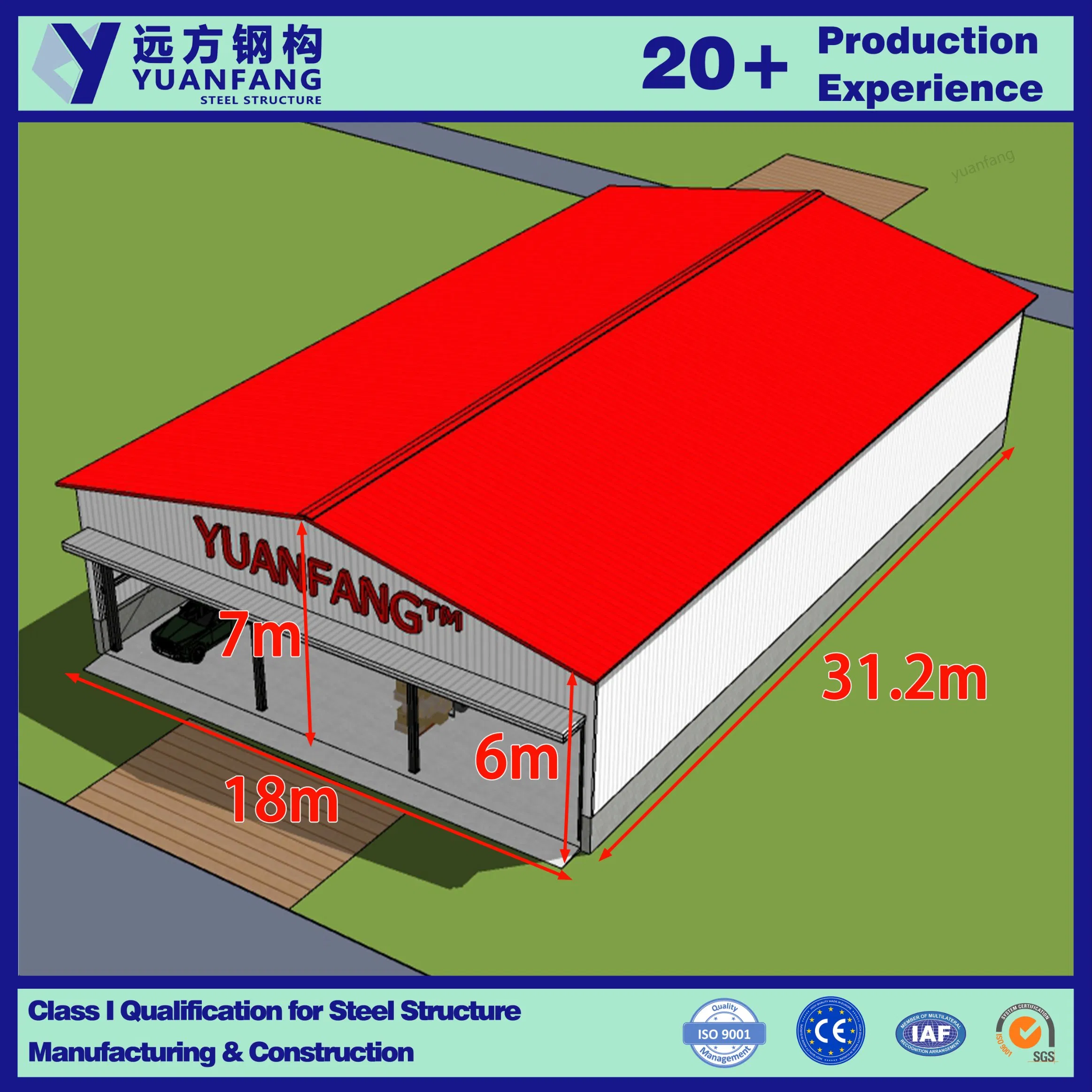

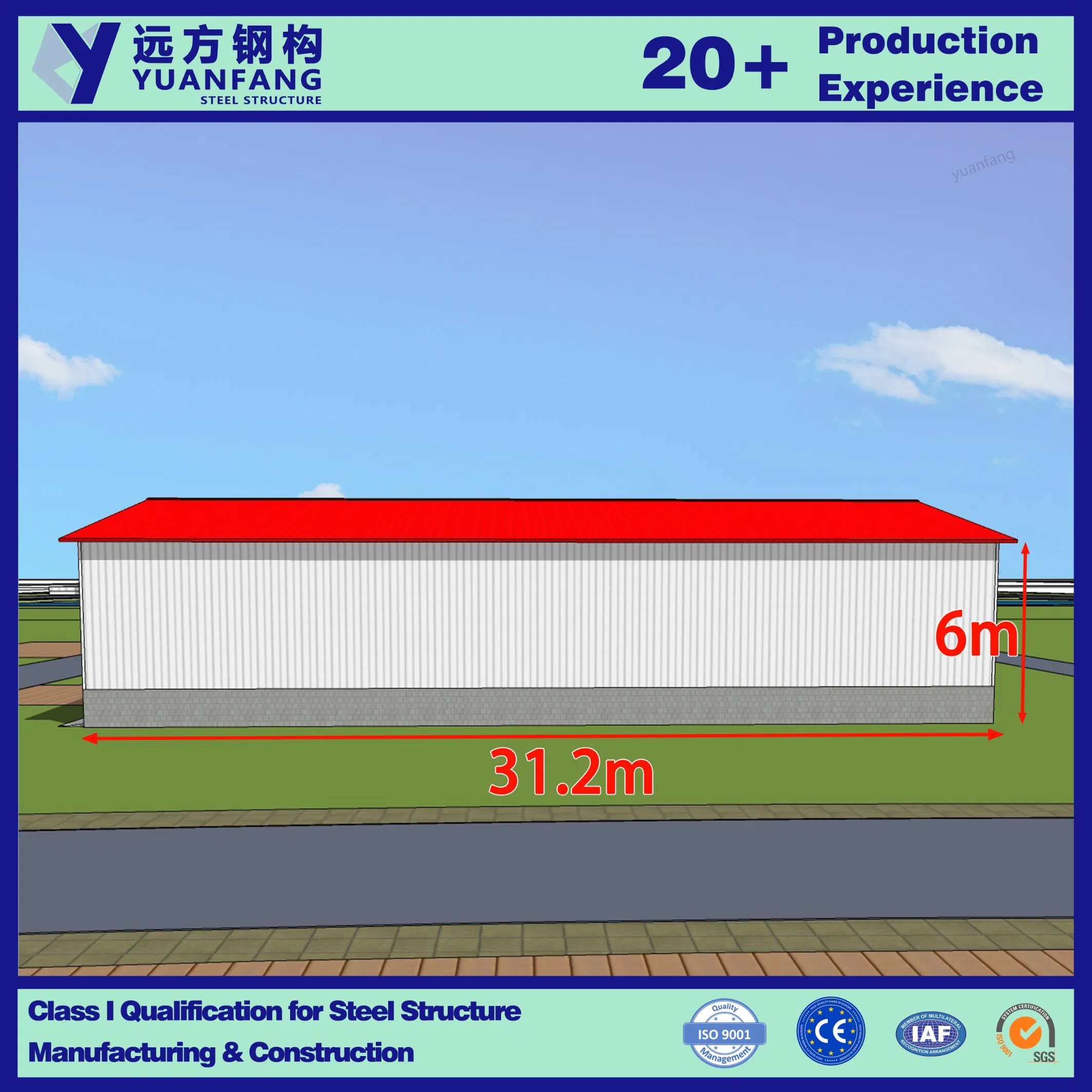

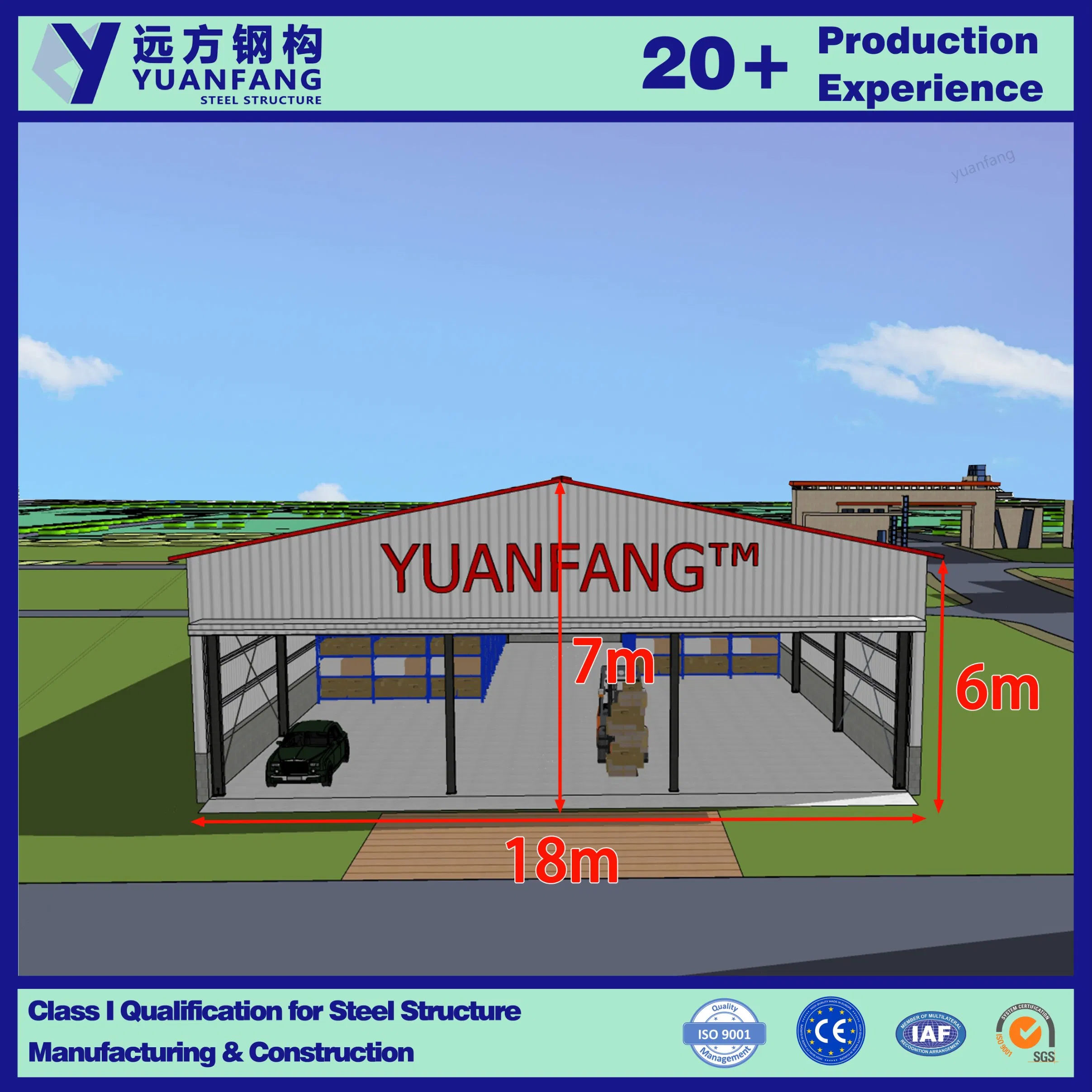

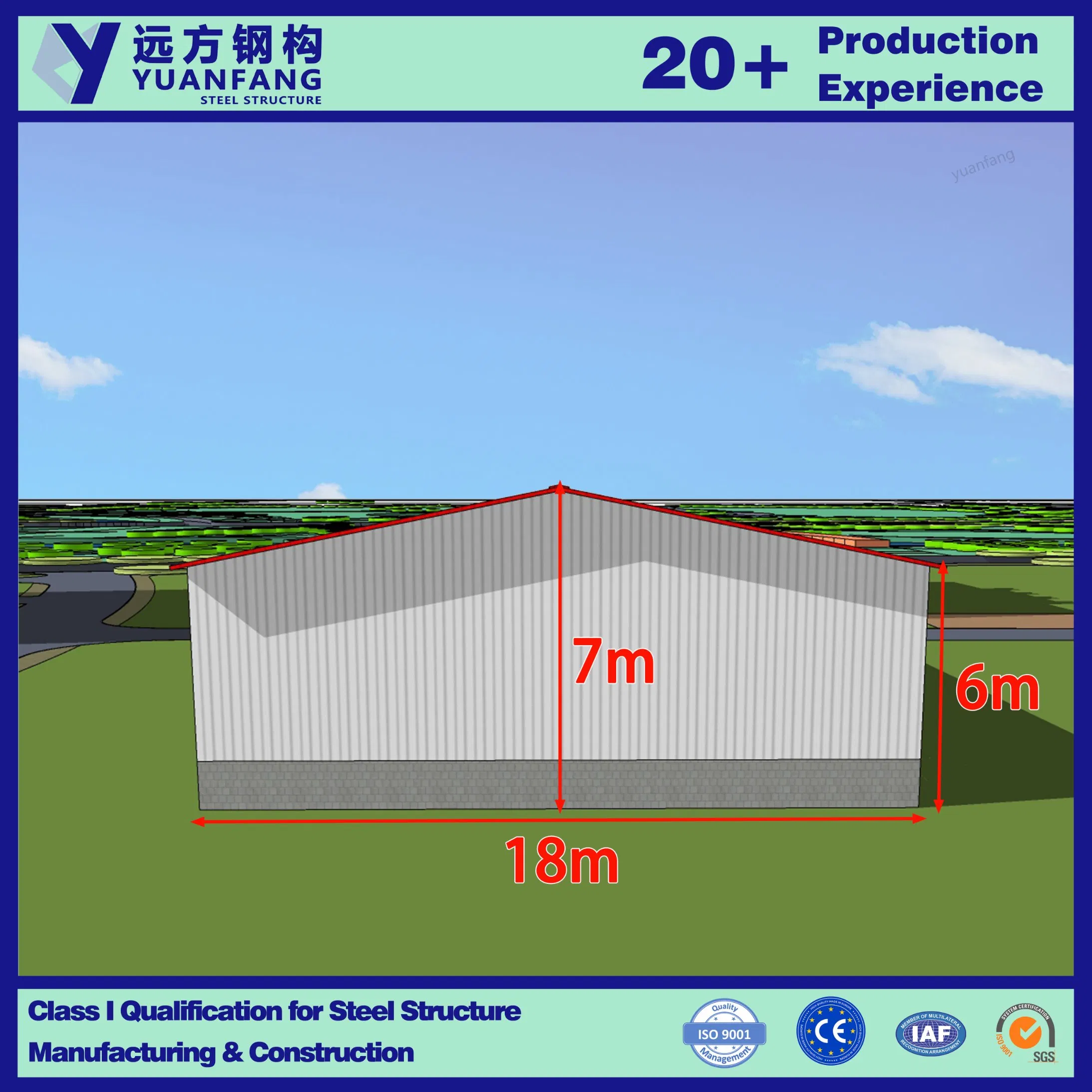

This single-story portal steel structure warehouse features isolated column footings for stability and cost-effectiveness. Dimensions: 31.2m (L) × 18m (W) × 6m (eave height), with an 18m span divided into 4 bays (7.8m each) to balance load-bearing capacity and spatial efficiency. The design includes a gently sloped roof, optimizing drainage and interior clearance. A cantilevered canopy provides all-weather shelter for loading. Walls include a 1.2m-high solid brick skirting for impact resistance; the roof uses 0.5mm corrugated steel sheets for lightweight, corrosion-resistant coverage.
| Category | Specification |
|---|---|
| Structural Form | Single-story portal steel structure |
| Foundation Type | Isolated column footings |
| Dimensions (L×W×H) | 31.2m × 18m × 6m (eave height) |
| Bay Span | 18m |
| Length Division | 31.2m total, divided into 4 spans (7.8m each) |
| Height | Eave: 6m / Ridge: 7m |
| Roof Slope | 0.11 |
| Wall Materials | 1.2m-high brick skirting wall (240mm thick) |
| Roof Material | 0.5mm corrugated steel sheet |
| Drainage System | Free-fall drainage (no gutter system) |
