Single Storey Prefabricated House Modular Container Dormitory
Single Storey Prefabricated House Modular Container Dormitory
Single Storey Prefabricated House Modular Container Dormitory
Single Storey Prefabricated House Modular Container Dormitory
Single Storey Prefabricated House Modular Container Dormitory
1 / 5
Single Storey Prefabricated House Modular Container Dormitory
Single Storey Prefabricated House Modular Container Dormitory
Single Storey Prefabricated House Modular Container Dormitory
Single Storey Prefabricated House Modular Container Dormitory
Single Storey Prefabricated House Modular Container Dormitory

Single Storey Prefabricated House Modular Container Dormitory

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Specification
Model NO.
LD001
Key Words
Qatar Portacabins
Installation
Supervisor Guiding, Video Are Available
Waterproof
New Technology Performance
Service Life
Up to 20 Years
Loading
SOC or 40FT HQ Container
Storey
1, 2, or 3 Storey Available
Size
ISO Standard 20FT, 40FT
Design Style
Modern
Usage
Hotel, Dormitories, Warehouse, Office
Warranty
2 Years
Capacity
3000 units Per Month
🏗️ Product Description

General technical description for standard modular container house models designed for durability and efficiency.

Dimensions and Weight
  • External Dimensions: 6.06m (L) x 2.438m (W) x 2.591m (H)
  • Inner Dimensions: 5.81m (L) x 2.188m (W) x 2.410m (H)
  • Unit Weight: Approx. 2000kg
Steel Framework & Structure

Constructed with high-quality Q345 steel (3.5mm thickness) for top/base beams and columns. Surface treated with two coats of epoxy painting.

  • 8 standard container corner fittings
  • PVC standard rainwater pipe system
  • Forklift openings: 100*250mm (1200mm distance)

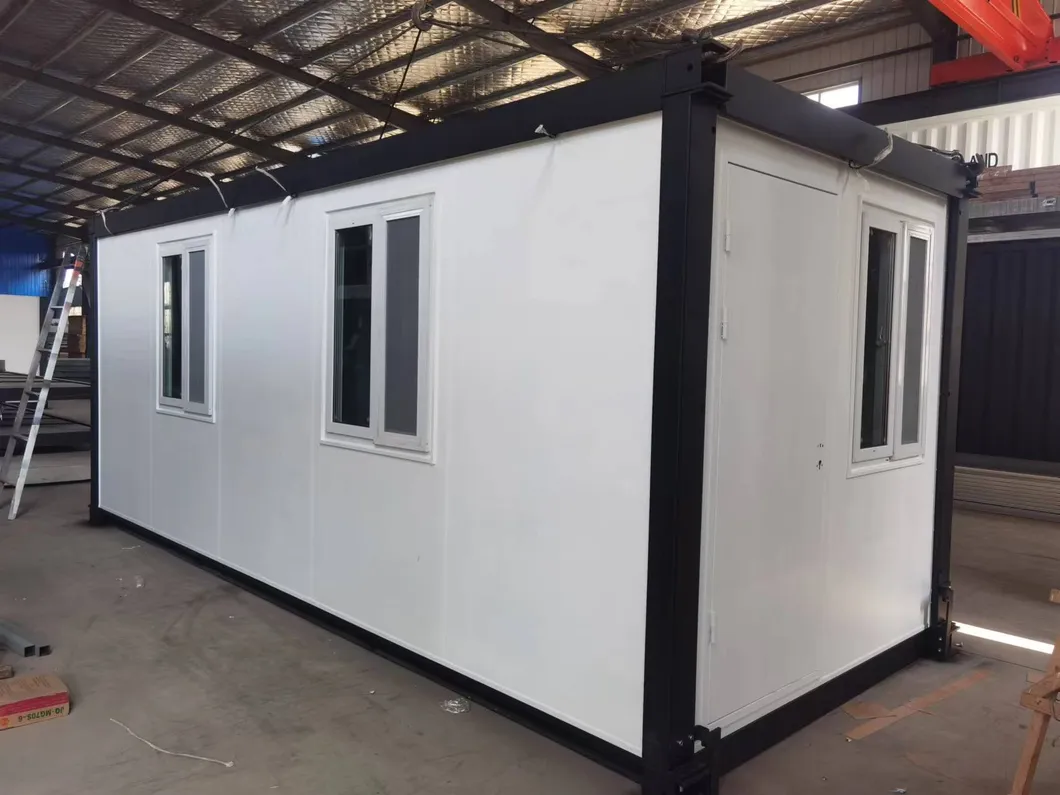

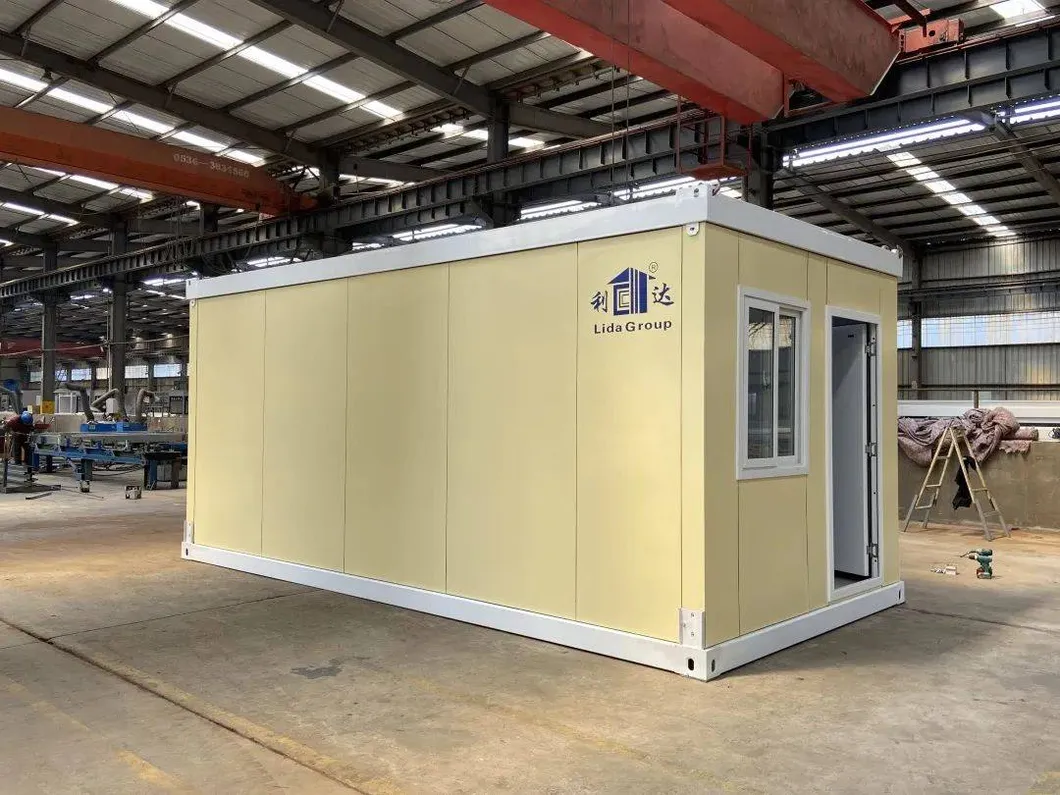

Modular Container House View 1 Modular Container House View 2
Floor & Ceiling Construction

Floor: 0.5mm galvanized color steel sheet wainscot, 75mm rock wool insulation, 18mm bamboo plywood, and 2.0mm PVC floor leather.

Ceiling: 1.2mm steel plate roof with epoxy painting, 75mm rockwool insulation, and 12mm PVC decoration board inner finish.

Wall & Openings

Standard 75mm Rockwool sandwich panels with 0.4mm galvanized steel on both sides (Density: 120Kg/m3).

  • External Door: Insulated steel door (950*2100mm) with lock
  • Windows: PVC double glass (4mm) with fly screens

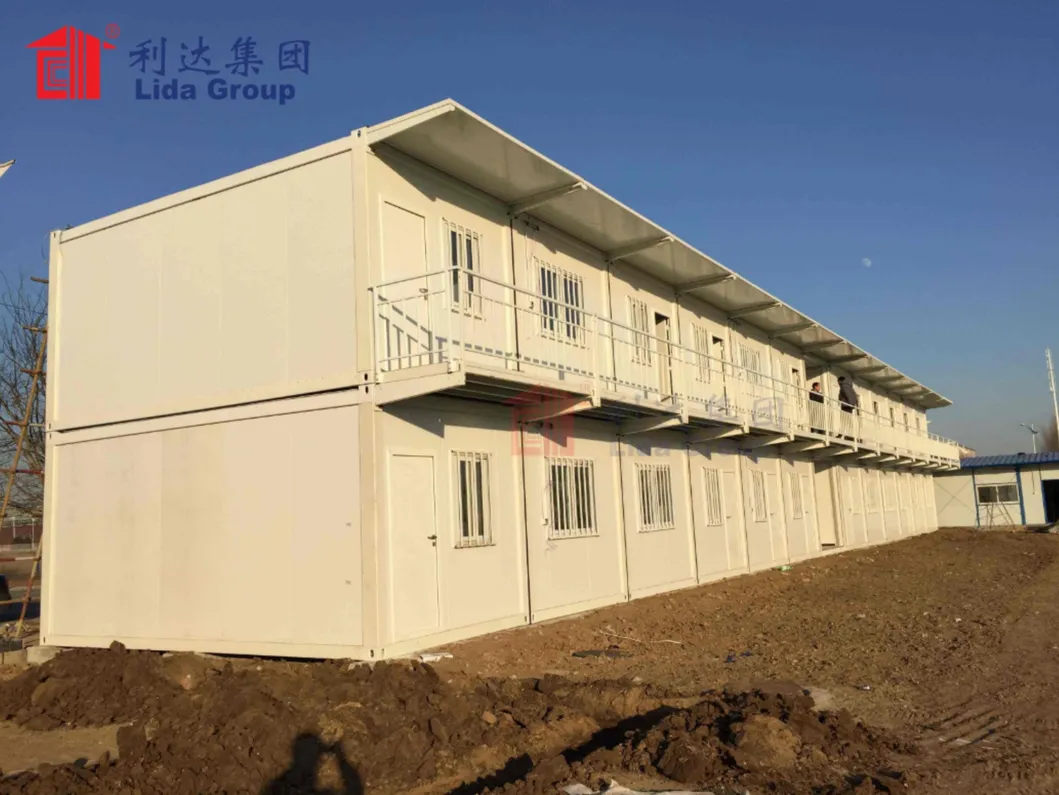

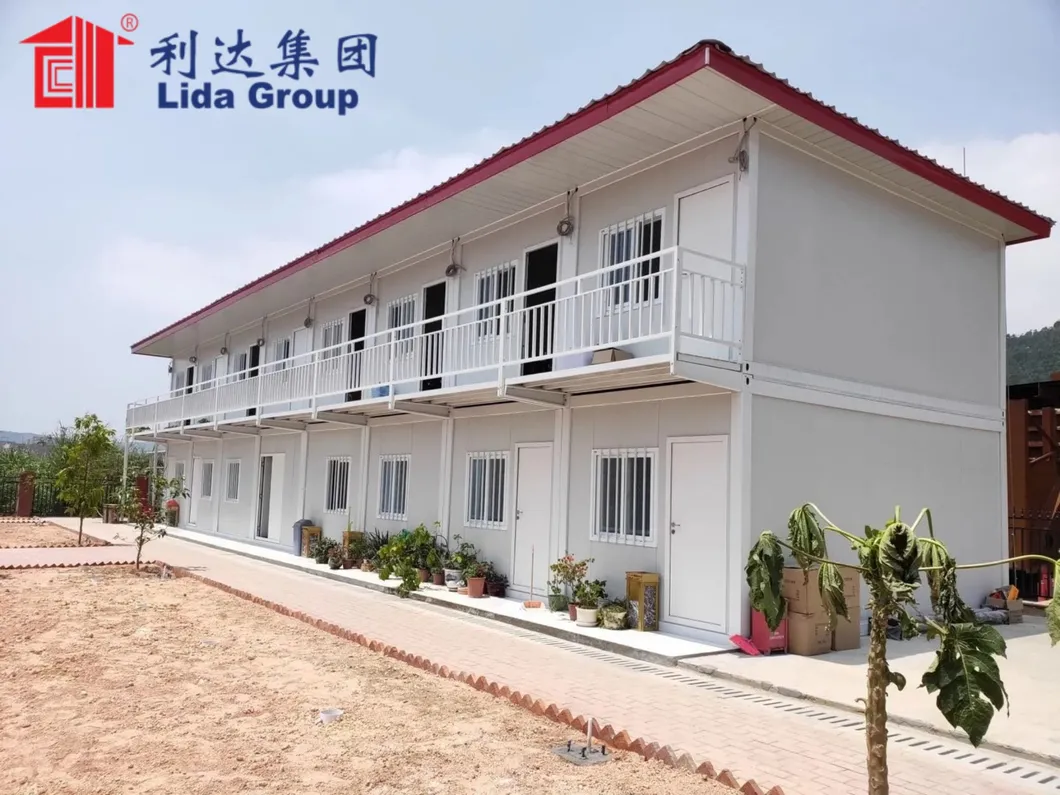

Container Interior Detail Container Installation
Technical Specifications Table
Flat Pack Container System Components
Steel Frame3.5mm Q235, welding, rust removal, epoxy painting
Roofing Outer Sheet1.2mm steel sheet, epoxy painting
Insulation Layer80mm glass fiber or 75mm Rockwool
Wall Panel75mm EPS/Rockwool sandwich panel
Flooring18mm plywood + 2.0mm PVC leather
Electrical System2.5mm² (lighting), 4.0mm² (AC), 220V, 50-60HZ
Sanitary WareOptional ceramic toilet, basin, and shower fittings
Project Showcase
Frequently Asked Questions
How long does this container house last?
With proper maintenance, the service life of our modular container houses can reach up to 20 years.
Is the container house waterproof and insulated?
Yes, we use new technology for waterproof performance and 75mm-100mm insulation (Rockwool/Glass fiber) to ensure thermal comfort.
Can I customize the size and design?
Absolutely. While 20ft and 40ft are standard, we offer customized dimensions and 1-3 storey configurations to meet specific project needs.
How are the units transported?
They are typically shipped as 4-in-1 flat packs or loaded directly into 40FT HQ shipping containers to optimize logistics costs.
What is the monthly production capacity?
We have a robust manufacturing capability of approximately 3000 units per month.
Is technical support provided for installation?
Yes, we provide detailed installation videos and supervisor guiding services to ensure a smooth assembly process on-site.
