Ruifa Modular House
Ruifa Modular House
| Parameter | Index | Feature | Performance |
|---|---|---|---|
| External Dimension | 5950mm*3000mm*2800mm | Life Span | 10-15 Years |
| Internal Dimension | 5735mm*2800mm*2550mm | Wind Resistance | 0.40KN/m³ |
| Weight | 1.17 ton | Seismic Performance | Level 8 |
| Sound Insulation | 5dB | Fireproof | Level-A |
| Ground Load | 1.0KN/m³ | Roof Load | 0.50KN/m² |

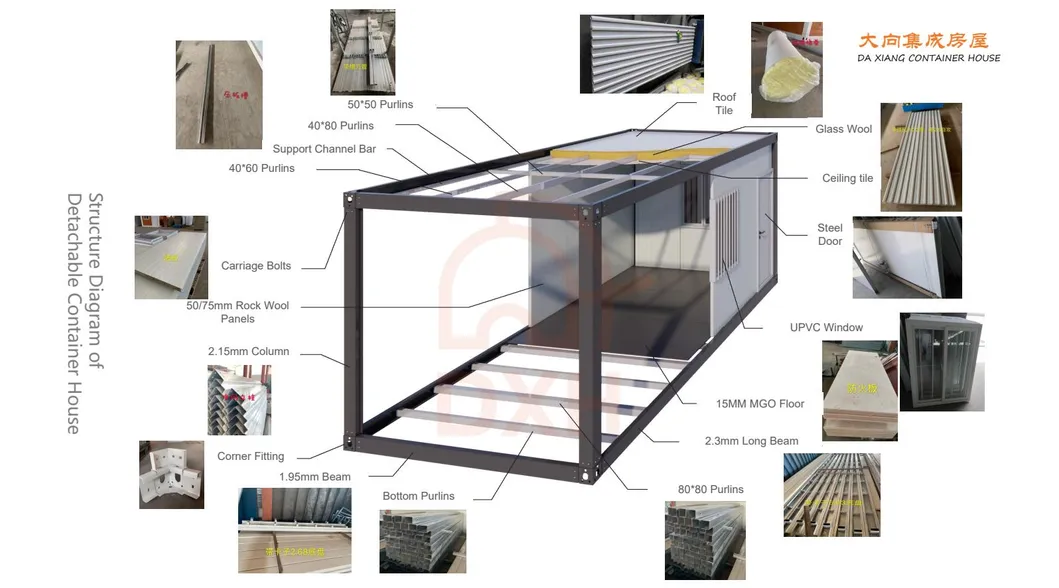

| NO. | Items | Materials | Descriptions |
|---|---|---|---|

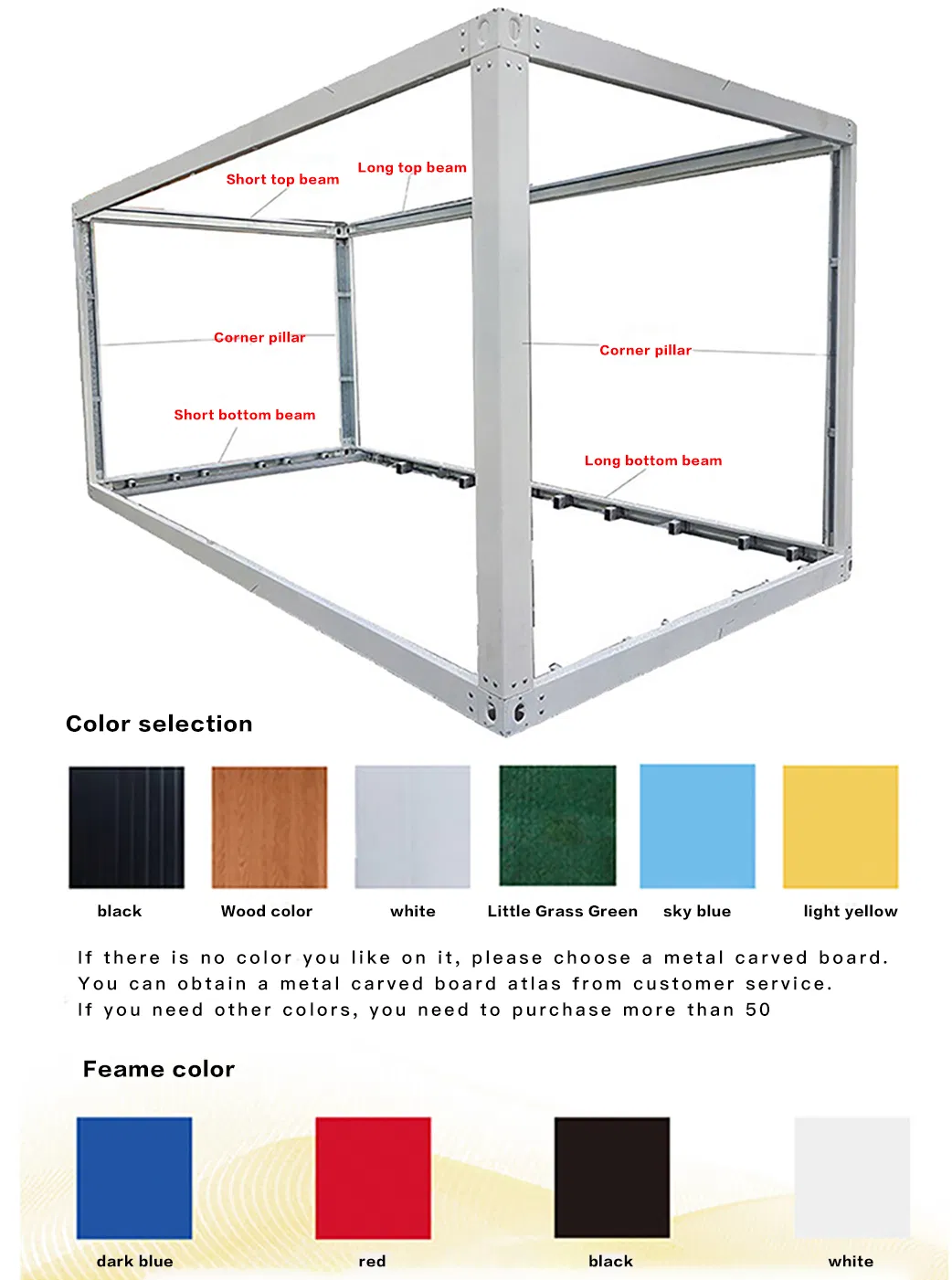

| 1 | Main Structure | Cold Rolled Steel | 2.15mm profile column, 1.95mm beams |
| 2 | Wall Panel | Sandwich Panel | 50mm EPS/Rockwool (950*2500mm) |
| 3 | Roof Insulation | Glass Wool | 14kg/m³, 100mm thickness |
| 4 | Window | Aluminum Alloy | Single open, 925*1200mm |
| 5 | Door | Steel Door | 950*2070mm |
| 6 | Floor | MGO Board | 15mm fireproof board |
Loads 17 sets in 40HQ or 7 sets in 20GP container.
Modular design allows for easy global shipping.
Waterproof, thermal proof, and eco-friendly materials.

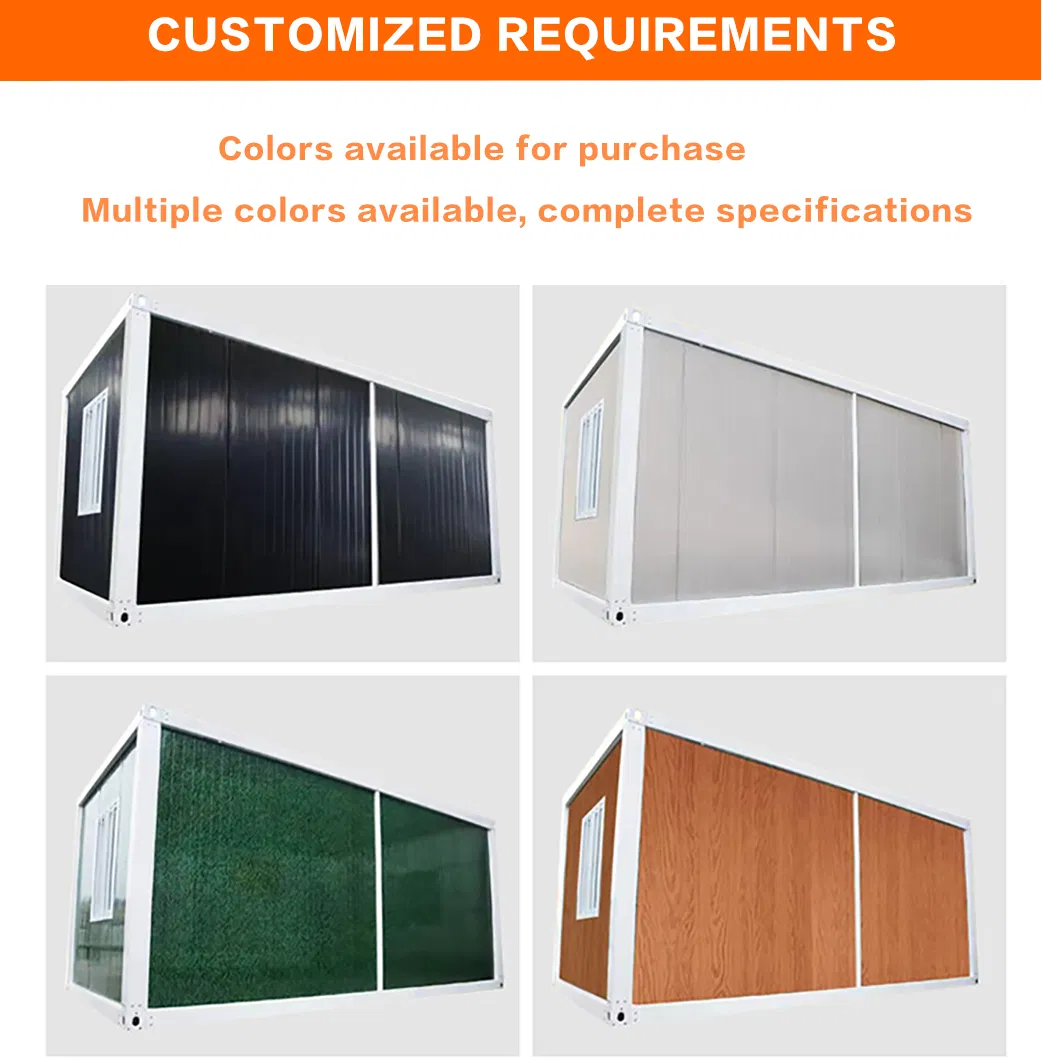

Customizable exterior and interior for a luxury finish.
Yes. An experienced worker can finish 1 unit in 4 hours. We provide manuals and videos. Only basic tools like a screwdriver, level, and ladder are needed.
Absolutely. Most orders are tailored to client requirements. We can provide CAD floor plans and 3D designs based on your sketches.
Orders are typically completed in 1 to 7 days. Sea shipping varies by country, generally taking between 15 to 45 days.
For cold regions like Russia or Sweden, we suggest 10cm PIR wall panels and triple-layered Low-E tempered glass windows to meet local thermal insulation standards.

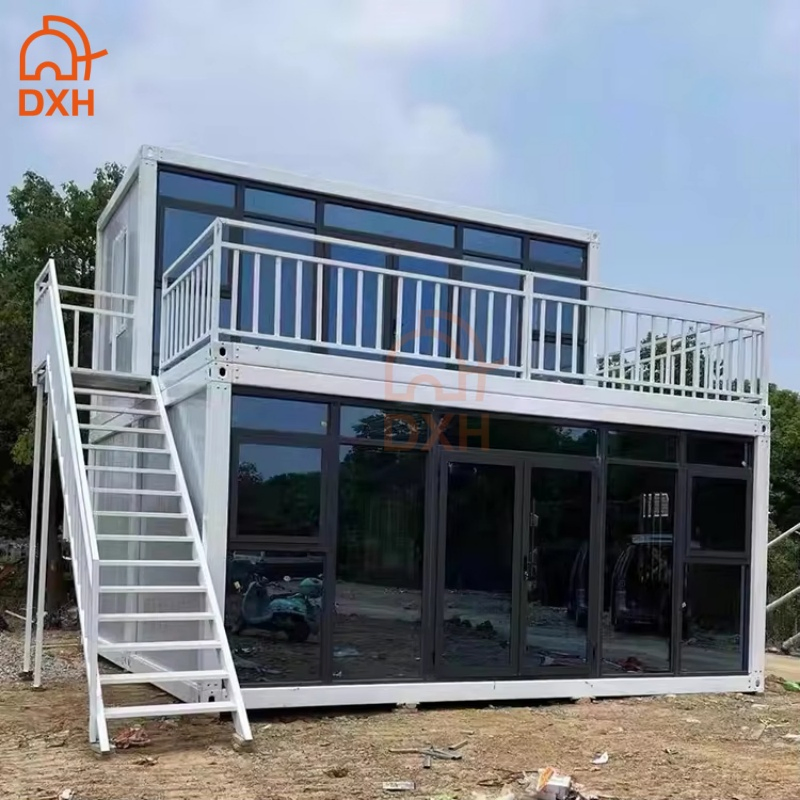

Yes, with premium cladding options for the interior and exterior, these units are perfect for beach bars, cafes, and AirBNB hotels. Similar structures were used for the Qatar World Cup fan village.
These are optional. We can include toilet, shower sets, solar panels, AC units, and full electrical systems upon request.
