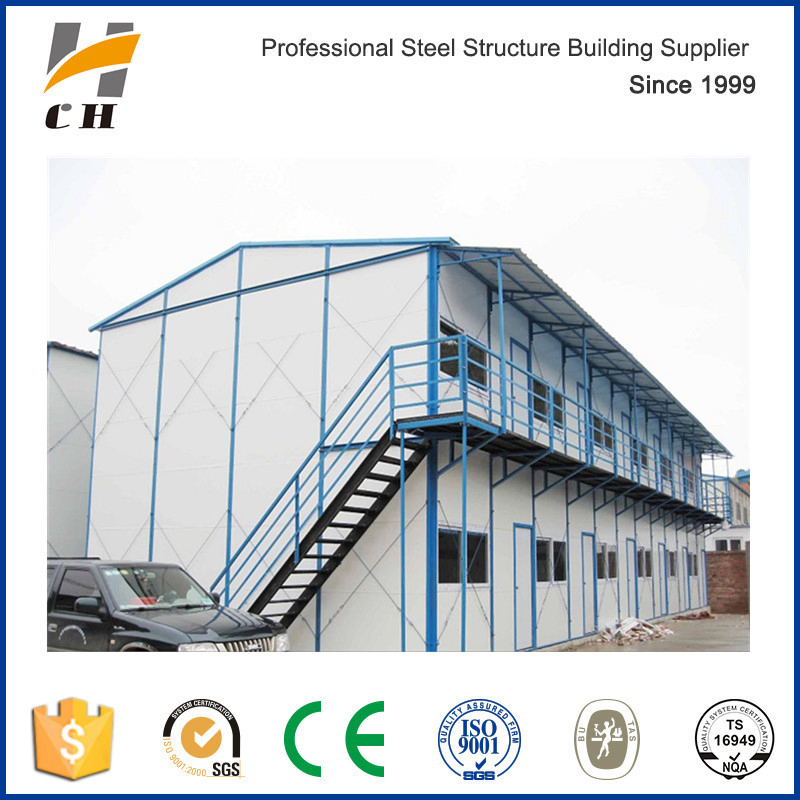

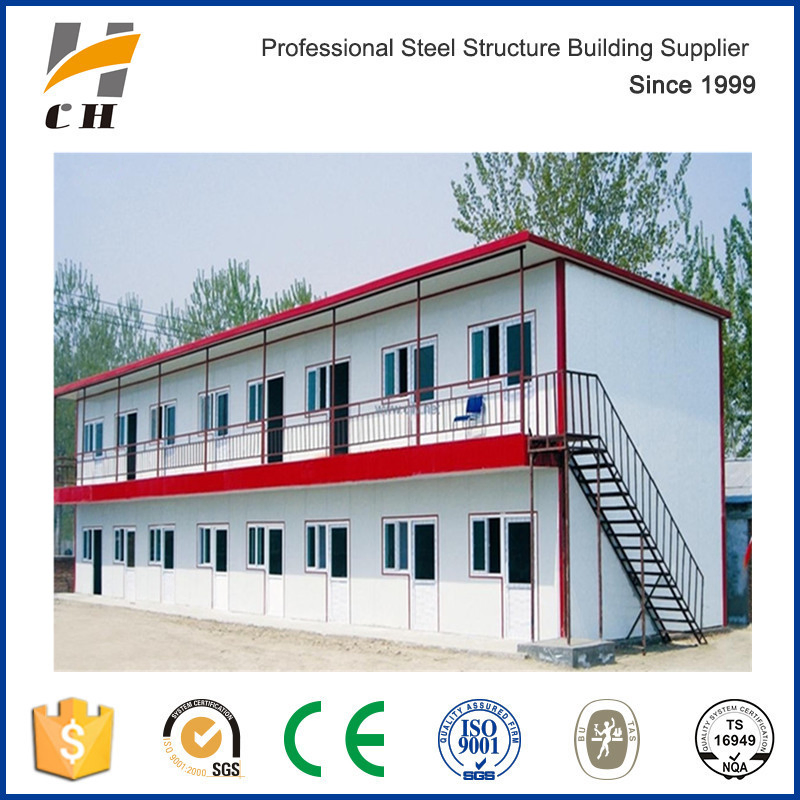

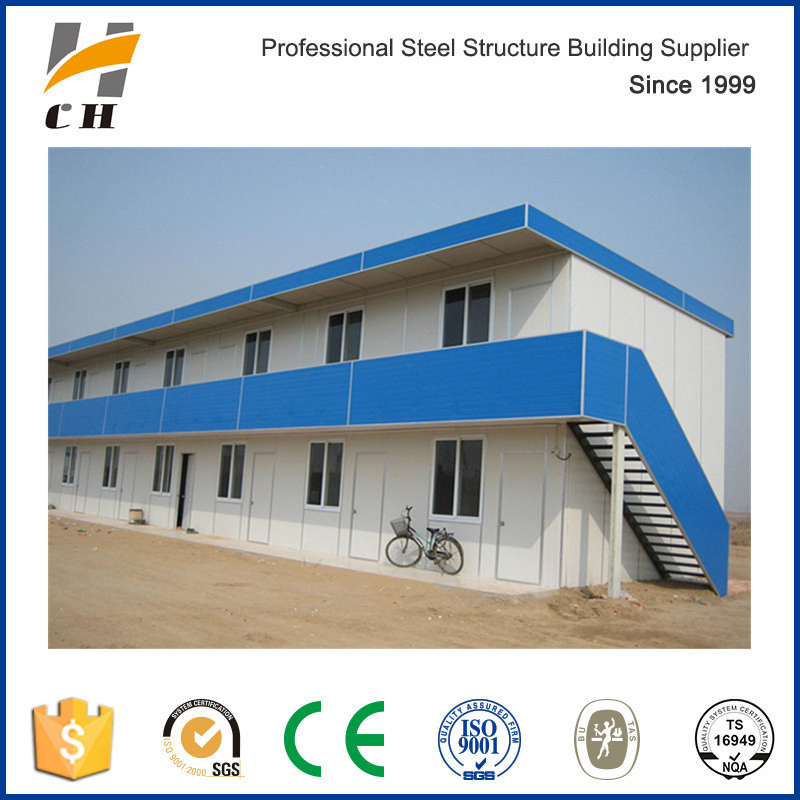

Prefabricated Steel Structure Labor Camp Prefab House

1 / 5

Prefabricated Steel Structure Labor Camp Prefab House

Customization:	Available
Purlin Type:	C/Z Galvanized Purlin
Material:	Q235B or Q345b

Send Inquiry

Product Description

Basic Info

Model NO.:Customizable

Roof Sheet:EPS or Galvanized Color Plate

Wall Sheet:EPS or Galvanized Color Plate

Door:Rolling Door Composite Door

Windows:PVC

Delivery Date:30 days

Steel Type:Quality Carbon Structural Steel

Connection:Bolt Connection

Carbon Steel:Q235

Application:Steel Workshop, Platform, Fabricated House, Roofing

Capacity:200,000 m2/Year

HS Code:94069000

✓

Product Description

Prefabricated Steel Structure Labor Camp Prefab House

Technical Specification

Main Material (Standard House)
No.	Part Name	Material	Description
1	Ground channel	C shape steel	C80x40x15x2.0
2	Column	Double C shape steel	2C80x40x15x2.0 welded
3	Beam (2nd Floor)	Steel frame	2C80x40x15x2.0\L40x4 welded
4	Sub-beam	C shape steel	C80x40x15x2.0
5	Purlin	Corner steel	L40x4
11	Wall panel	EPS sandwich panel	50mm thickness, 0.3mm plate
13	Roof panel	EPS sandwich panel	50mm thickness, 0.3mm plate
16	Windows	PVC sliding windows	0.93m x 1.00m
17	Door	Sandwich panel door	0.93m x 2.00m

Our Advantages

●

Long History & Experience: Founded in 1999 with over 50,000 sqm factory area. Rich experience in 20+ countries.

●

Professional Production: 10 production lines with advanced equipment maintained by professional technicians.

●

Wide Product Range: Includes light steel workshops, warehouses, hangars, and space frames.

●

Design Excellence: Team of 25 engineers and 14 designers familiar with all steel structure projects.

●

Quality Management: ISO 9001 certified with strict standards for finished product testing.

⚙

Technical Parameters & Materials

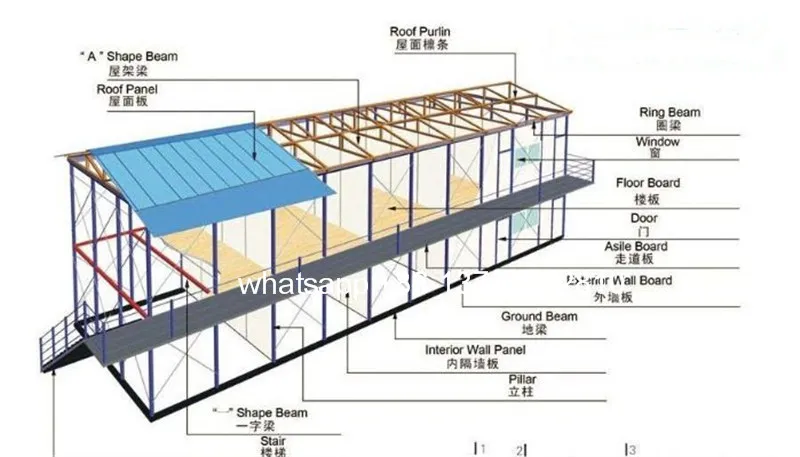

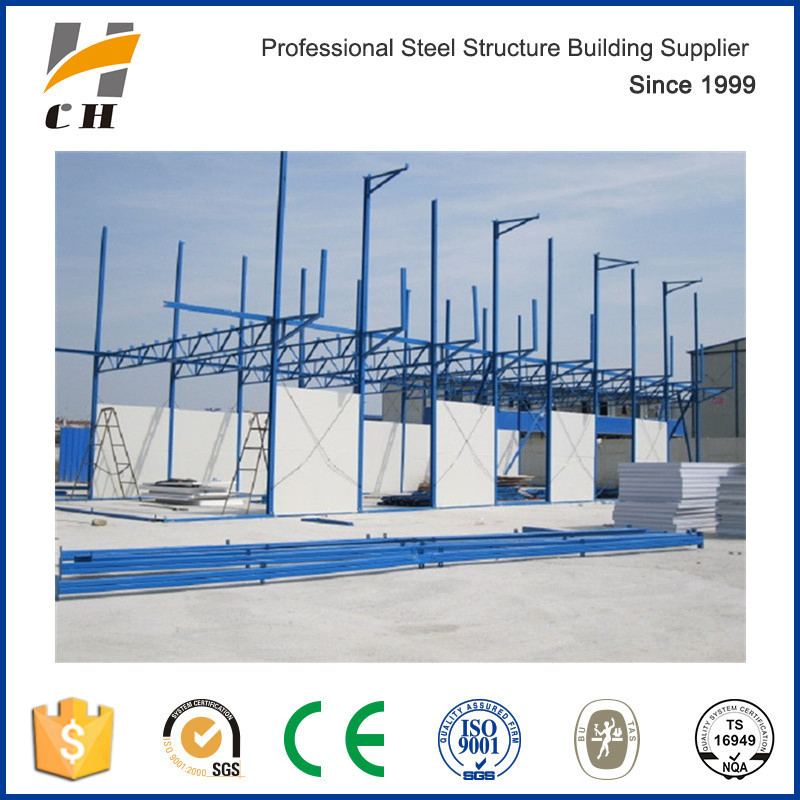

Prefabricated houses use light steel as the structure and sandwich panels for walls and roofs. Components are connected by bolts for easy assembly.

■Service life: More than 20 years

■Assembly: Can be assembled/disassembled more than 6 times

■Floors: Up to 3 storeys

■Wind resistance & Load: Live load 0.5kn/m2, Bearing load 30kg/m2

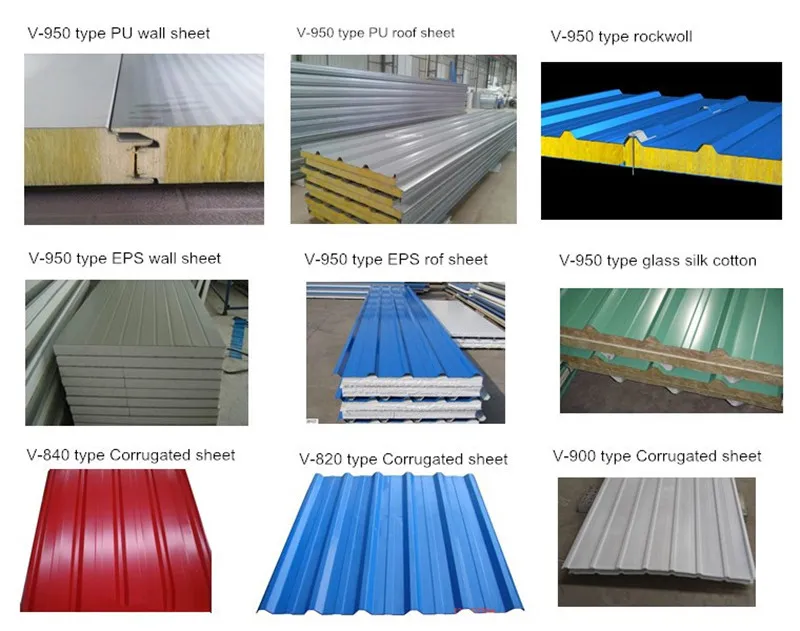

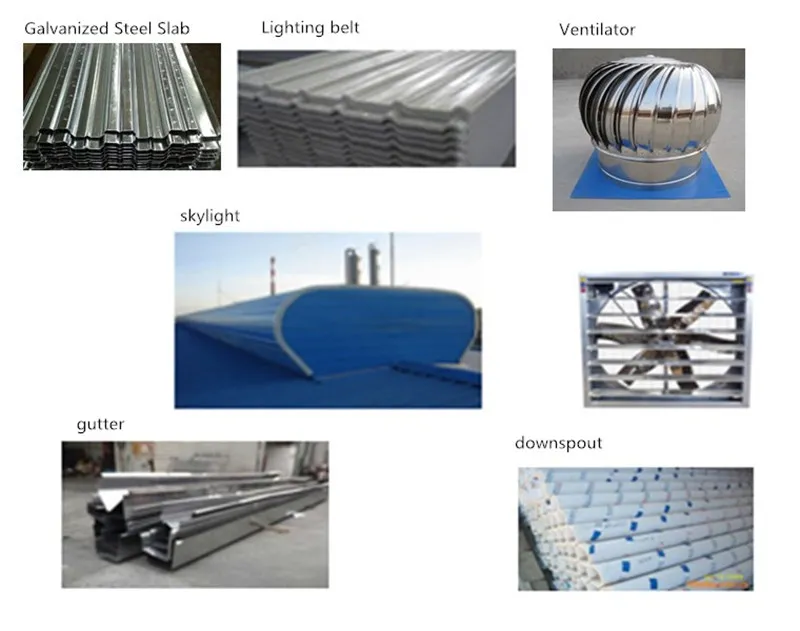

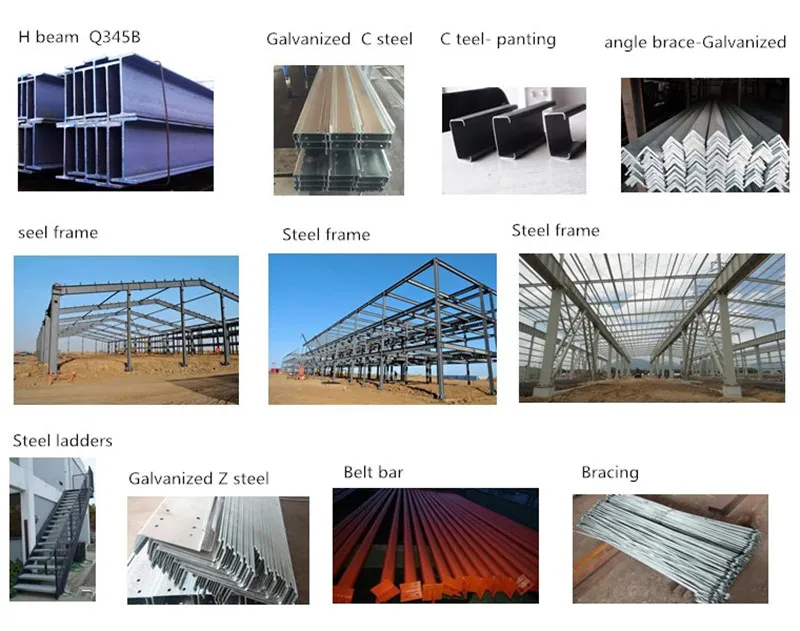

Material Showcase

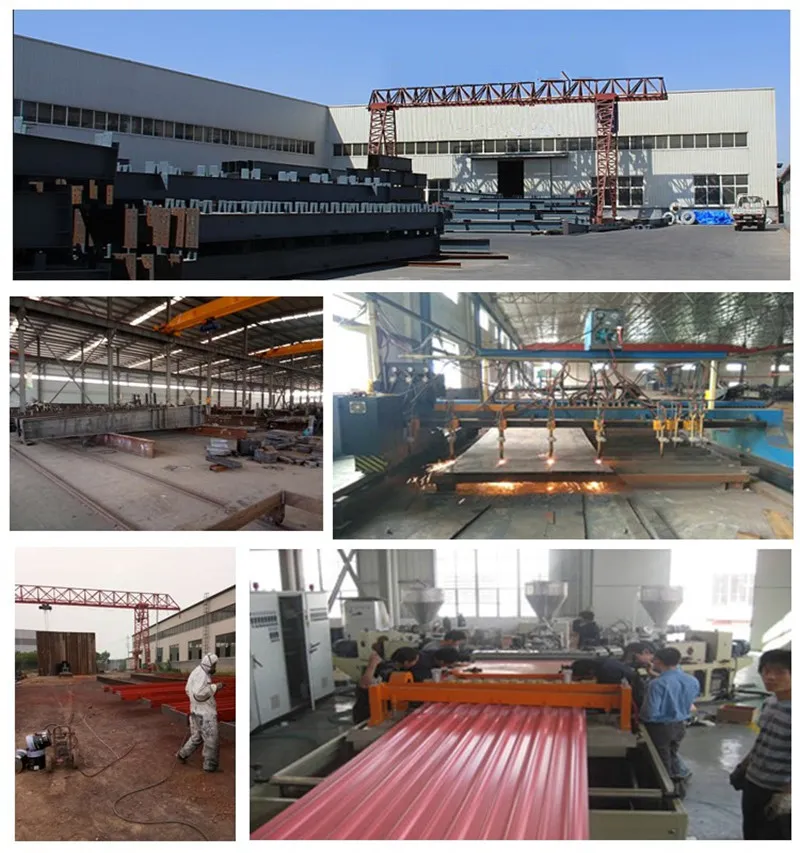

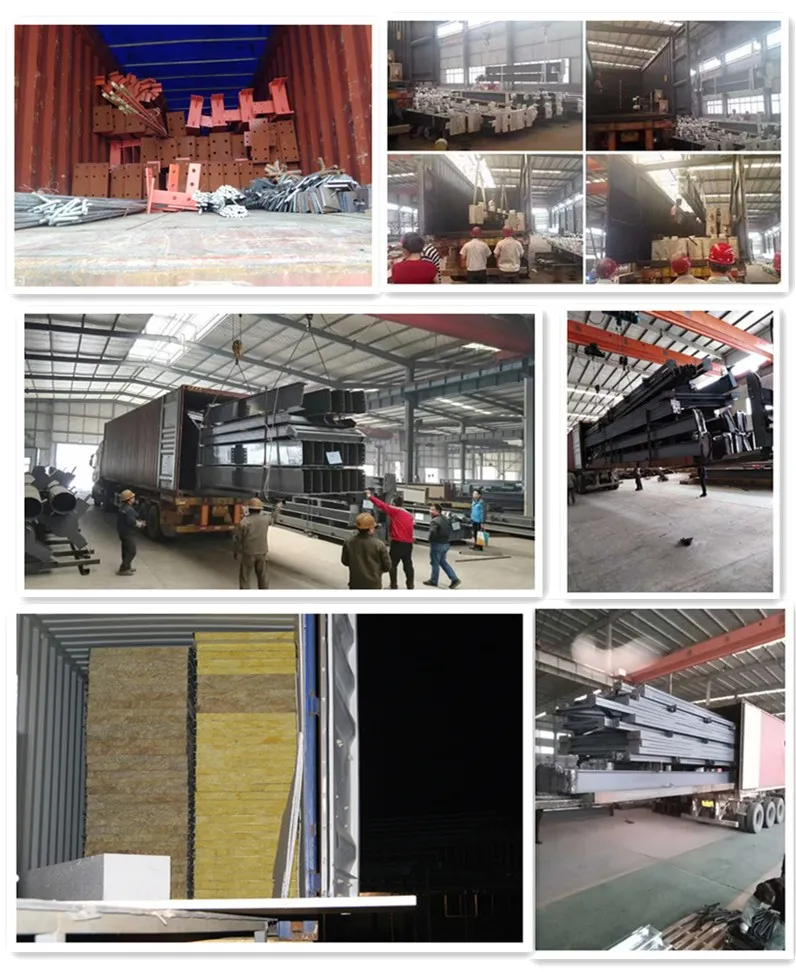

Packing & Workshop

Business Partners

Frequently Asked Questions

Q1: What materials are used for the prefab house wall and roof?

We use high-quality sandwich panels with insulation options including EPS (Polystyrene), Polyurethane, Rock Wool, or Fiber Glass.

Q2: How durable is the prefabricated steel structure?

The service life of our prefab houses is more than 20 years, and the structure is designed to be assembled and disassembled more than 6 times.

Q3: What is the typical delivery time for an order?

Standard production and delivery usually take between 20 to 30 days depending on the project specifications.

Q4: Can the size of the house be customized?

Yes, length, width, and height are all customizable. We recommend sizes based on your specific use case (e.g., labor camp, office, or warehouse).

Q5: Are these houses suitable for multi-storey buildings?

Our standard prefabricated system supports up to 3 floors with appropriate steel frame reinforcement.

Q6: What accessories are included in the package?

The package can include electric cables, PVC wire channels, lights, switches, sockets, and even sanitary components like shower rooms if required.

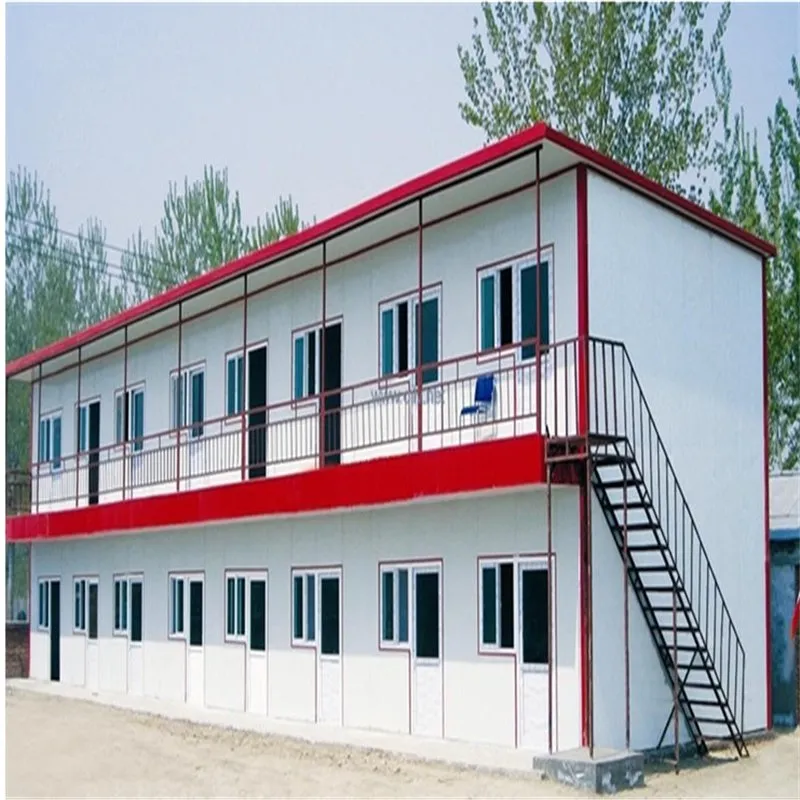

Product Detail
