Ruifa Modular House
Ruifa Modular House

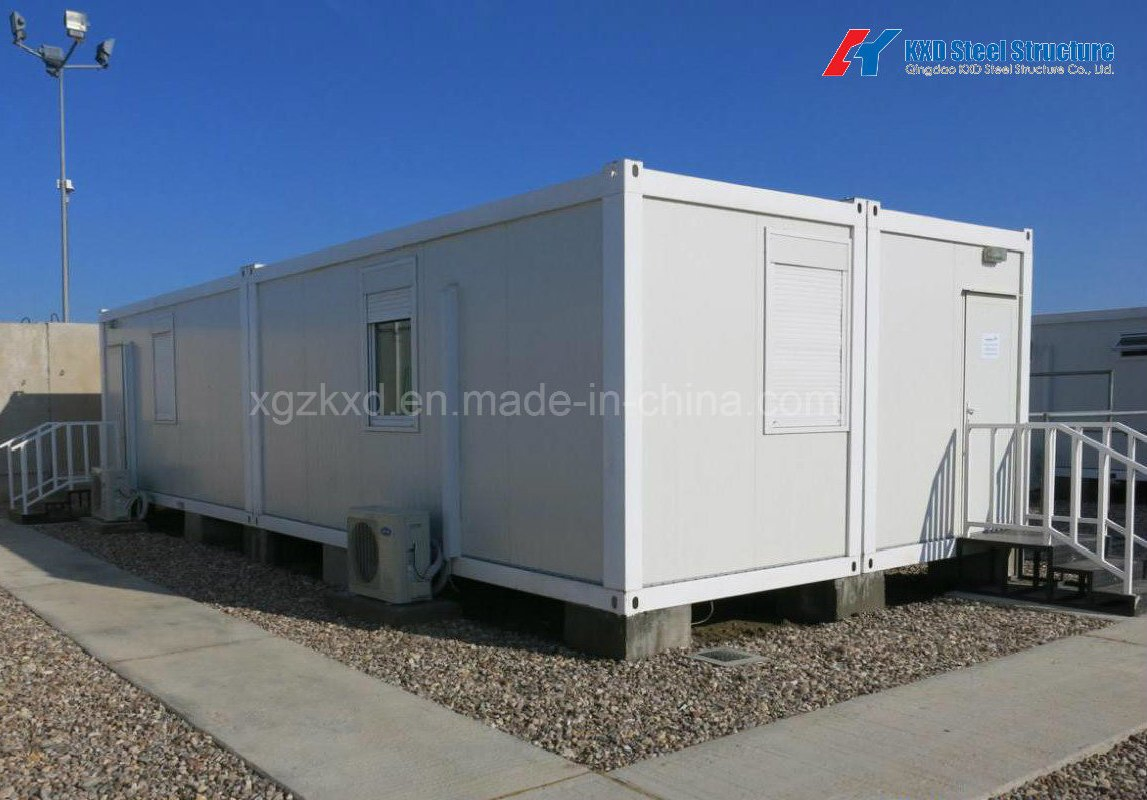

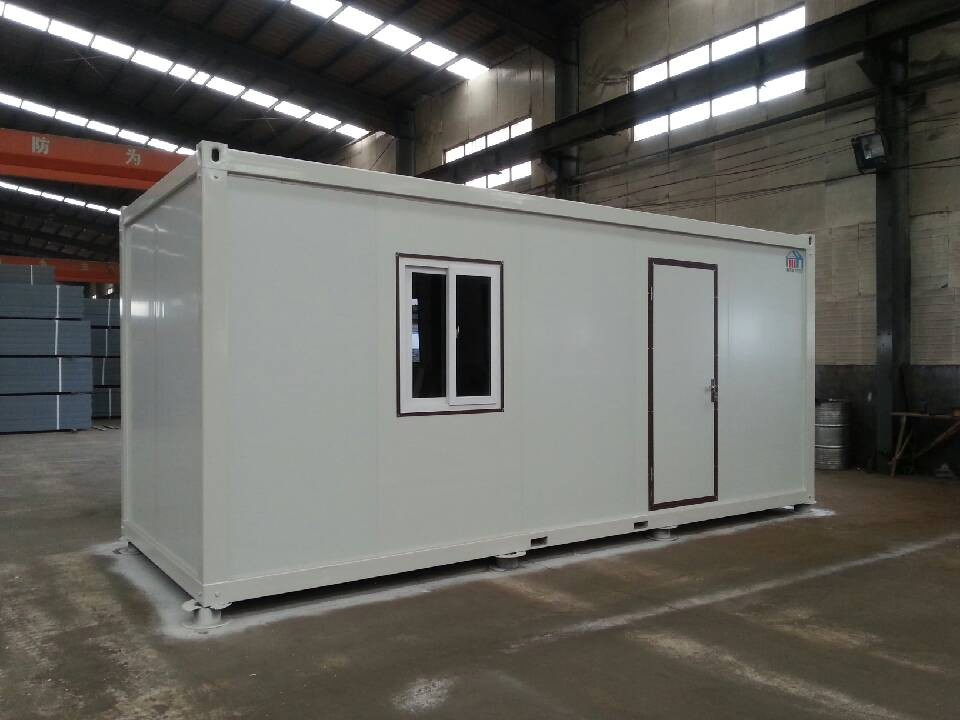

Prefabricated Light Steel Customized Modular Civil Container Home House

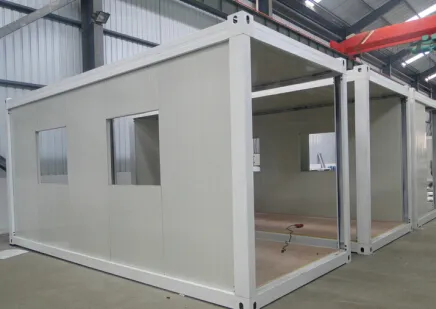

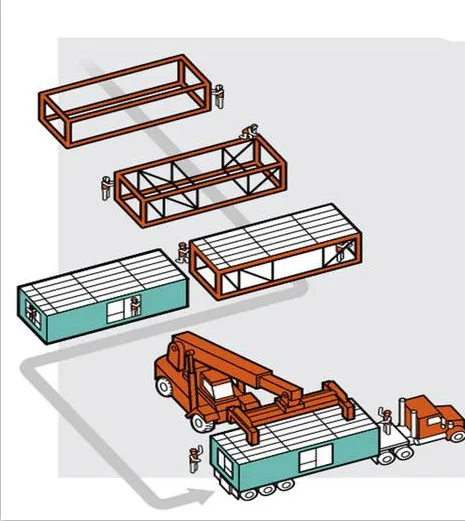

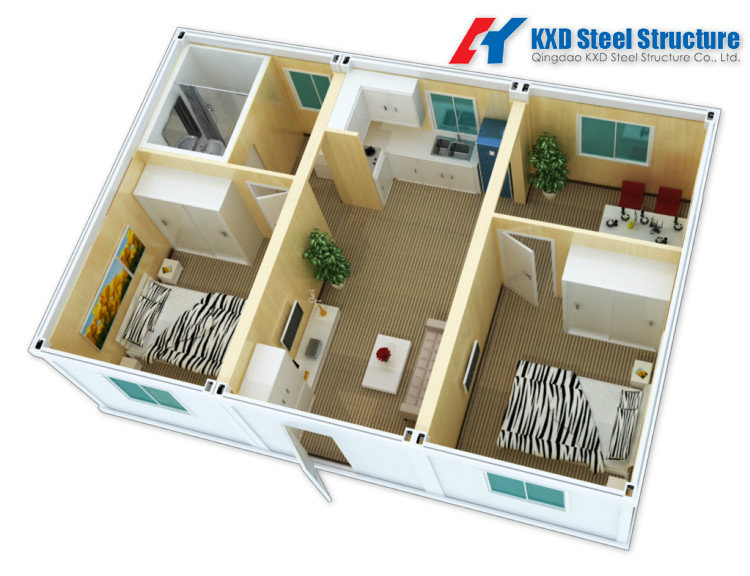

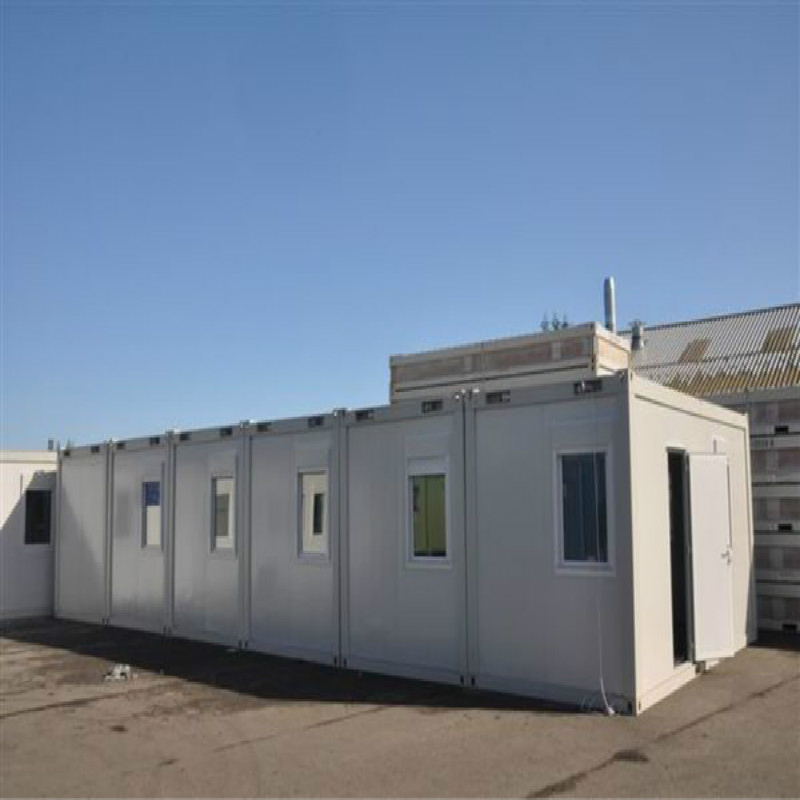

Modular House Definition: A term used to describe the use of factory-produced pre-engineered building units that are delivered to site in Modules. The modular units may form complete rooms, or parts of rooms. They are generally made into six-sided boxes, then delivered to site and set onto the building's foundation using a crane.

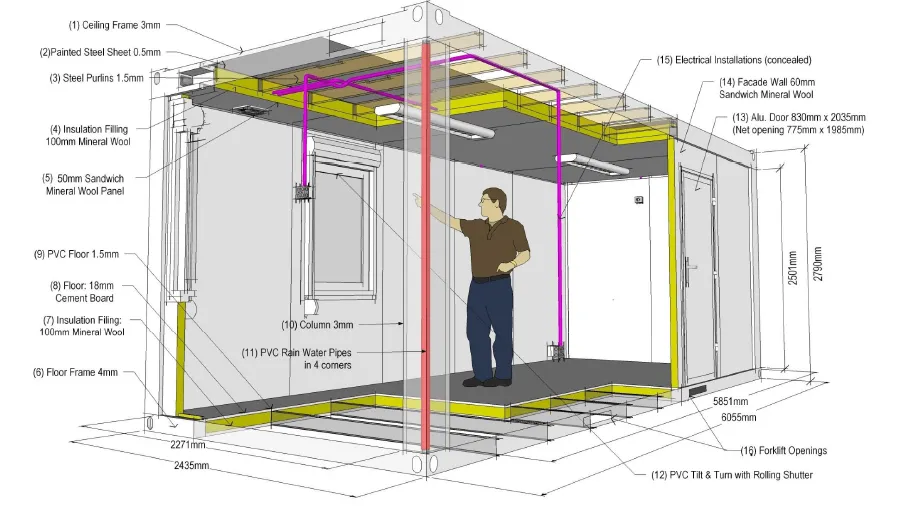

| ISO Standard Dimensions (20ft Eurostandard) | |
|---|---|
| Length | 6,058 mm (Optionally 3,048 - 9,100 mm) |
| Width | 2,438 mm (Optionally 3,000 mm) |
| Exterior Height | 2,591 mm (Optionally 2,791 mm or 3,100 mm) |
| Inner Height | 2,300 mm (Optionally 2,500 mm or 2,800 mm) |

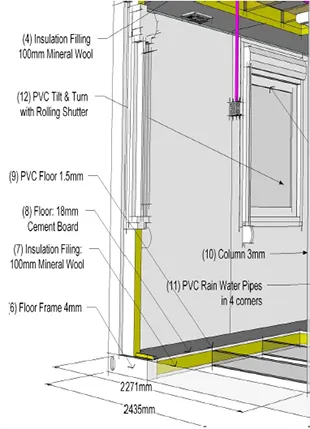

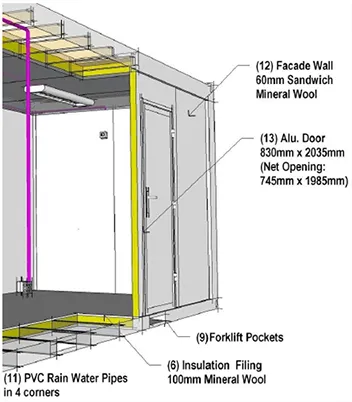

Doors: Aluminum door (40mm thick), insulated with PS, dimensions 820 x 1985 mm.
Windows: PVC white, double layer glass (4/15/4mm), with tilt & swing mechanism and aluminum rolling shutters.

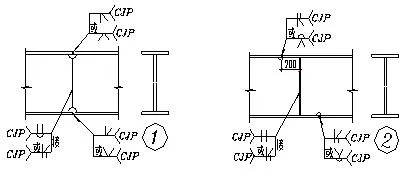

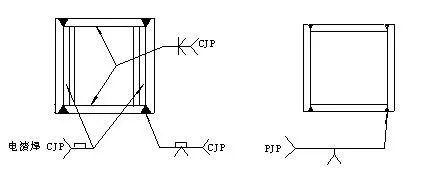

H Section Process: Steel plate cutting → H section assembly → Automatic welding → Strengthening → Manual welding → Shot blasting → Painting → Storage.
Advanced CNC equipment is used for high-purity cutting and smooth finish. Shot blasting achieves Sa2.5 Grade cleanliness for superior paint adhesion.
