100% Non Asbestos Fiber Reinforced Cement Board Fireproof Light Weight EPS Sandwich Panel Lgs Prefab Houses
100% Non Asbestos Fiber Reinforced Cement Board Fireproof Light Weight EPS Sandwich Panel Lgs Prefab Houses
100% Non Asbestos Fiber Reinforced Cement Board Fireproof Light Weight EPS Sandwich Panel Lgs Prefab Houses
100% Non Asbestos Fiber Reinforced Cement Board Fireproof Light Weight EPS Sandwich Panel Lgs Prefab Houses
100% Non Asbestos Fiber Reinforced Cement Board Fireproof Light Weight EPS Sandwich Panel Lgs Prefab Houses
1 / 5
100% Non Asbestos Fiber Reinforced Cement Board Fireproof Light Weight EPS Sandwich Panel Lgs Prefab Houses
100% Non Asbestos Fiber Reinforced Cement Board Fireproof Light Weight EPS Sandwich Panel Lgs Prefab Houses
100% Non Asbestos Fiber Reinforced Cement Board Fireproof Light Weight EPS Sandwich Panel Lgs Prefab Houses
100% Non Asbestos Fiber Reinforced Cement Board Fireproof Light Weight EPS Sandwich Panel Lgs Prefab Houses
100% Non Asbestos Fiber Reinforced Cement Board Fireproof Light Weight EPS Sandwich Panel Lgs Prefab Houses

100% Non Asbestos Fiber Reinforced Cement Board Fireproof Light Weight EPS Sandwich Panel Lgs Prefab Houses

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info
Model NO.
1220x2440/1200x2400/1200x3000/600x3000/610x2440
Grade
Grade A
Appearance
Panel
Edge
Square
Refractory Temp
1580~1770℃
Usage
Building
Thickness
4.5mm-25mm
Type
Fiber Cement Flat Panel
Surface Finishing
Sanding
Shape
Flat

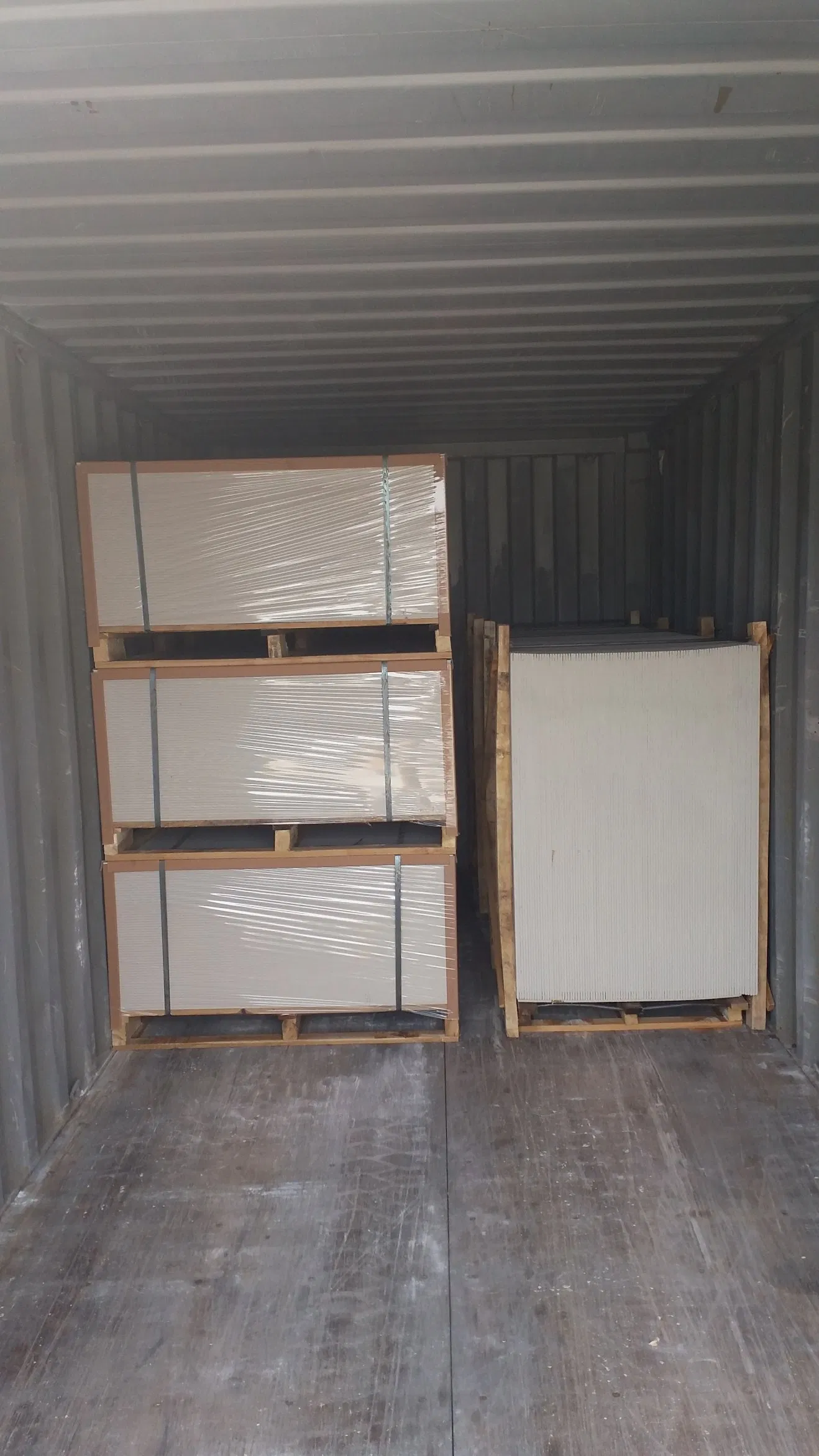

Transport Package
Wood Pallet
HS Code
68118200
Origin
China
Capacity

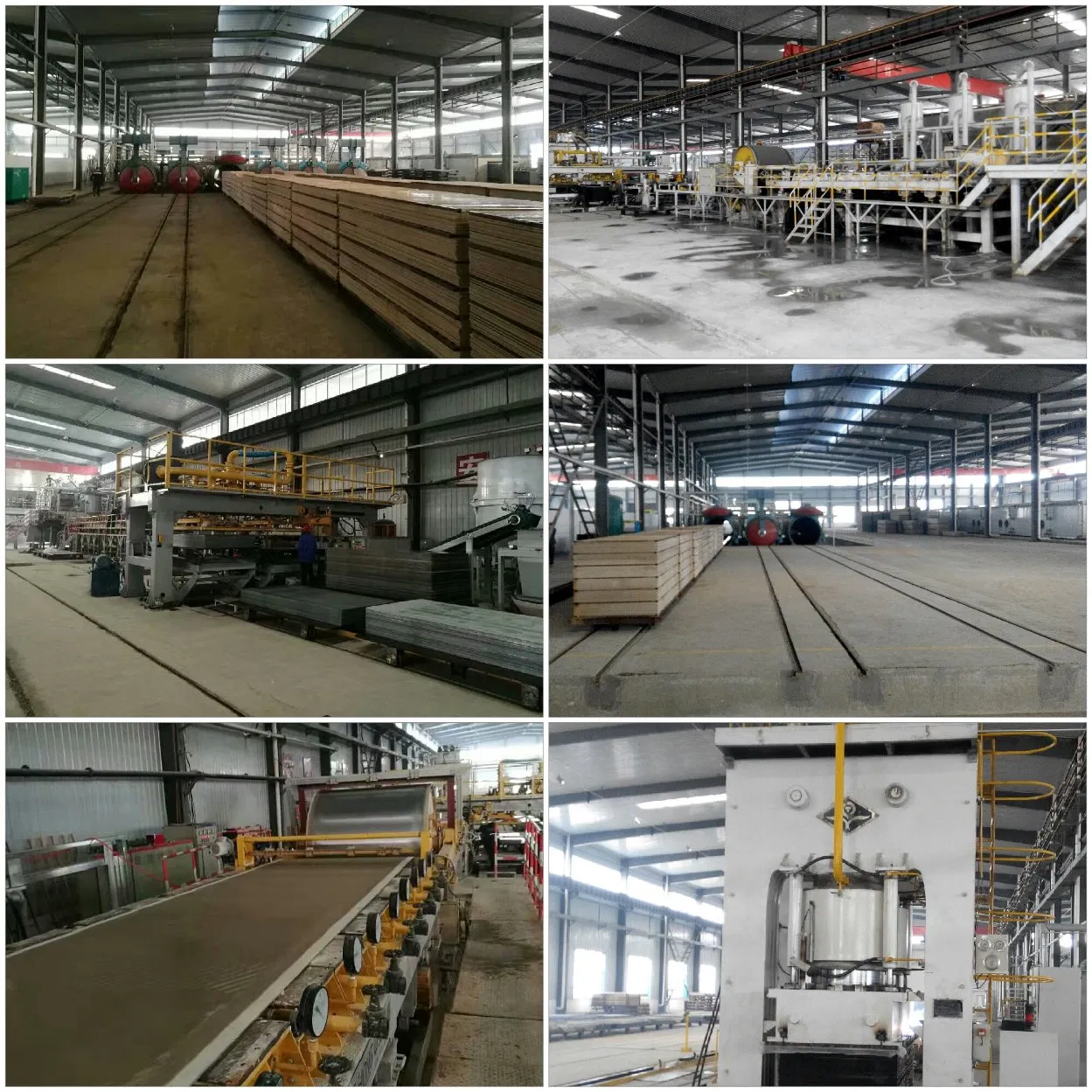

20,000,000 Sqm/Year
Product Description
Fiber Cement Board
Application: external wall cladding, fire-rated building partition, ceiling tiles, composite base panel, sarking board, light -weight grouted panel, decorative drywall, floor…

Sizes: 1200x2400, 1220x2440, 1200x2700, 1200x2800, 1200x3000, 610x2440, 610x2270, 600x3000, 600x600, 600x1200, 595x595…

Thickness: 4.5mm-25mm | Edge: square, tapered
Materials: Portland cement, cellulose fiber, quartz sand…
Incombustibility: A1-Class
Fire-proof rating: 180 minutes
Density: 1.25-1.50 g/cm3
Water Content: ≤10%
Water absorption: ≤30%
Thermal conduction: 0.24W/MK
Bending strength: ≥12-18 Mpa
Bulking factor: <0.25%
Dry shrinking rate: <0.09%
Shock strength: ≥2.0Kj/m2
Water-impermeability: through water immersing for 24 hours, no waterdrop appears on bottom surface
Anti-freeze: no distortion after 25 repeat cycles of freezing and thawing
Visual Display

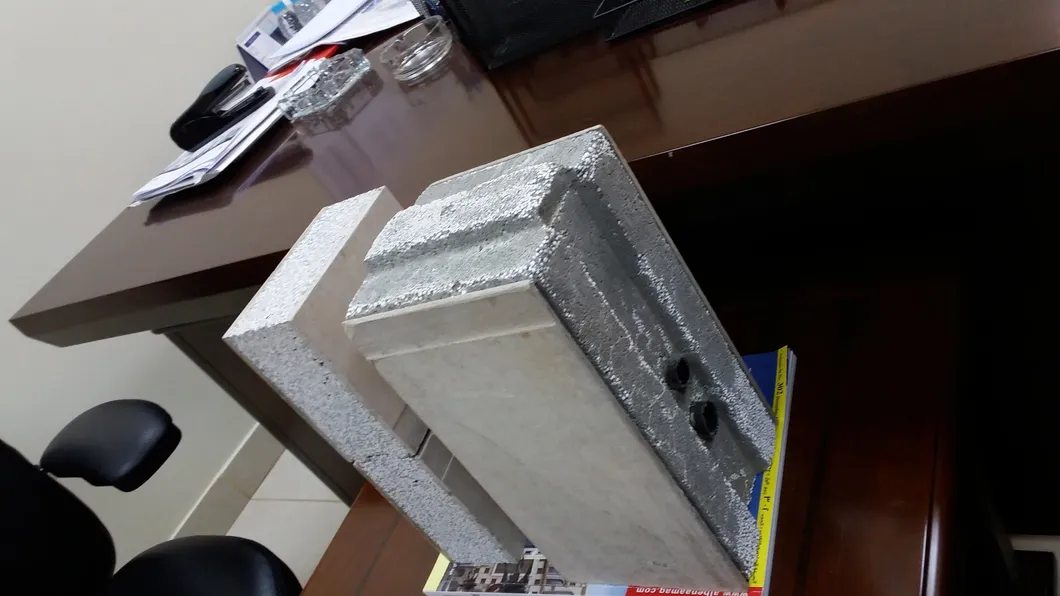

Fiber Reinforced Cement Board 1

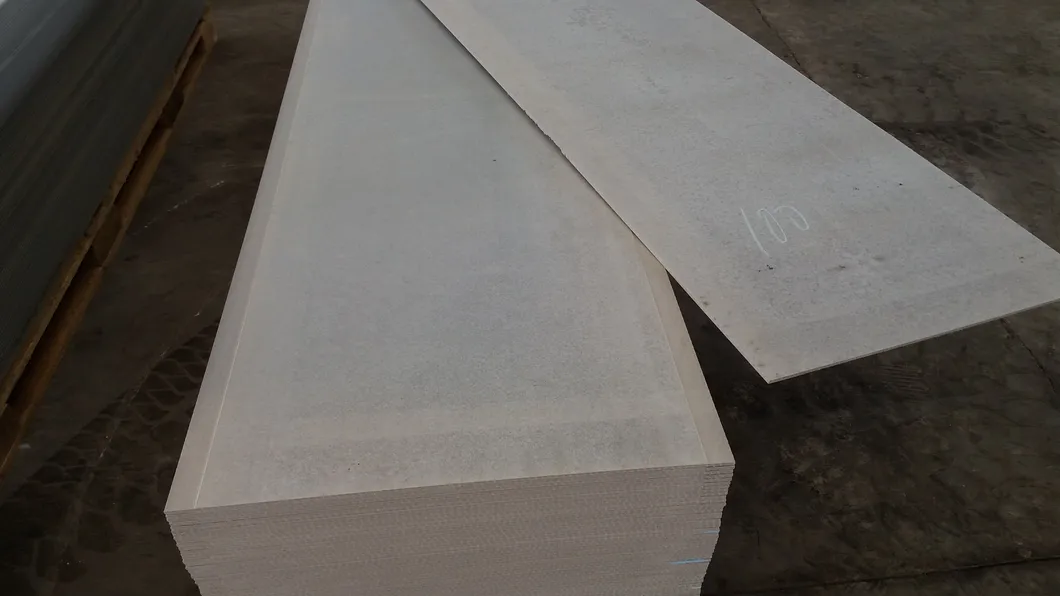

Fiber Reinforced Cement Board 2

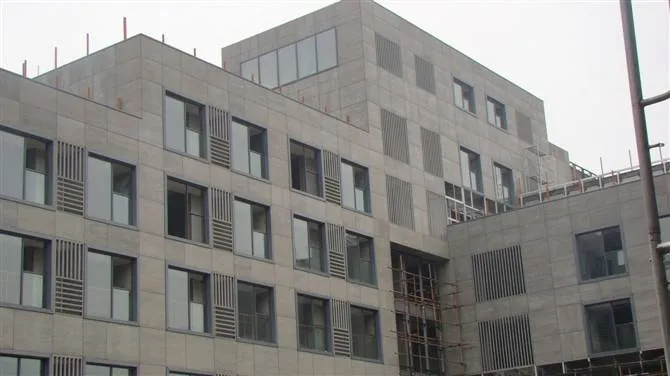

Fiber Reinforced Cement Board 3

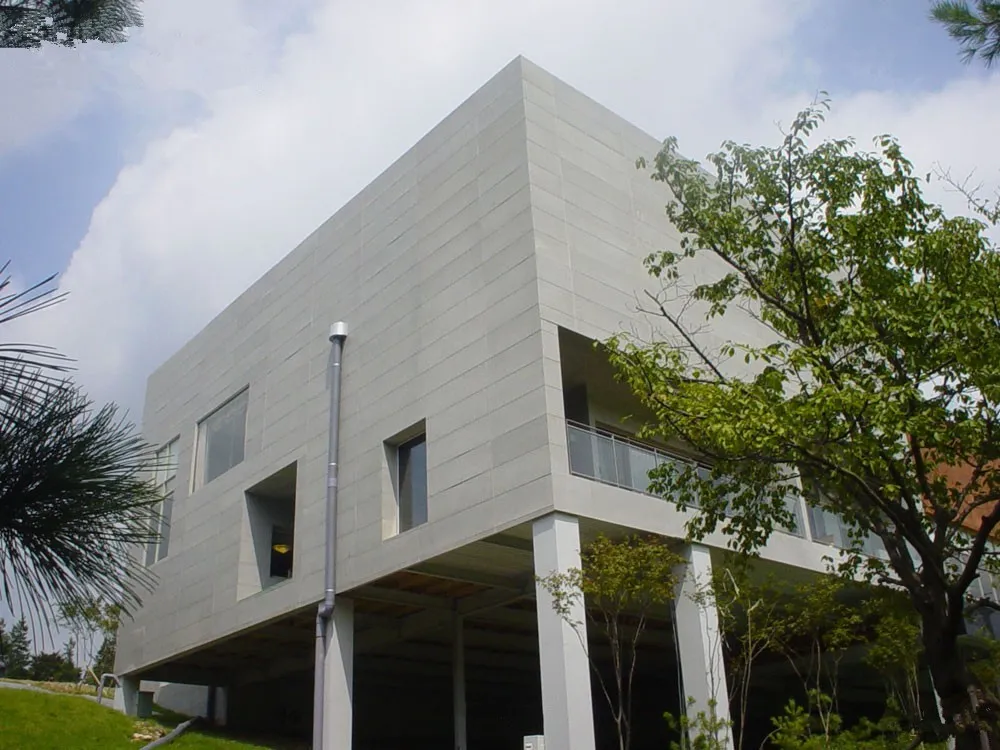

Fiber Reinforced Cement Board 4

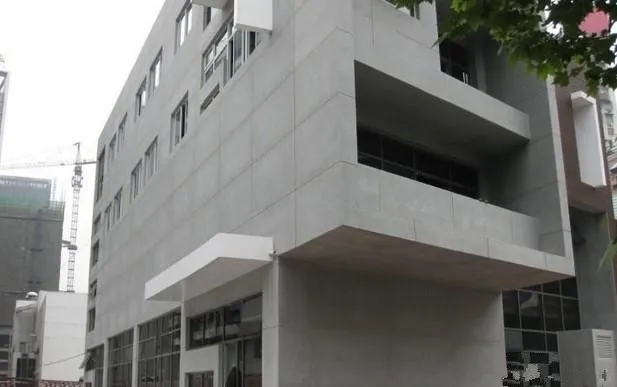

Fiber Reinforced Cement Board 5

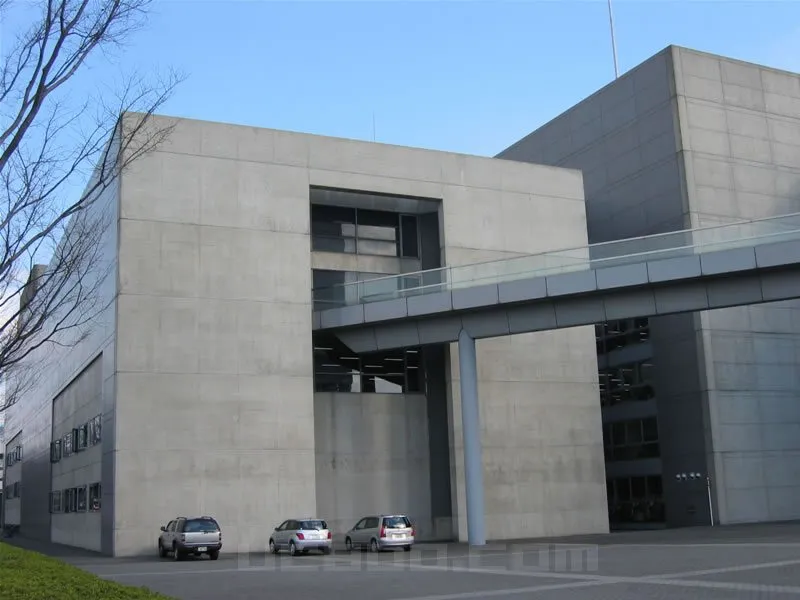

Fiber Reinforced Cement Board 6

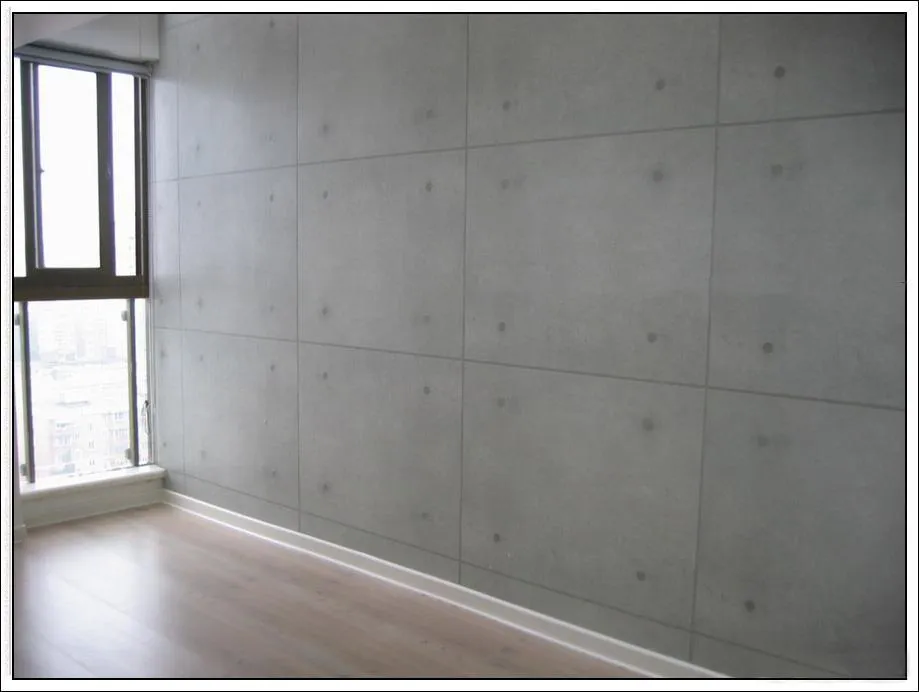

Fiber Reinforced Cement Board 7

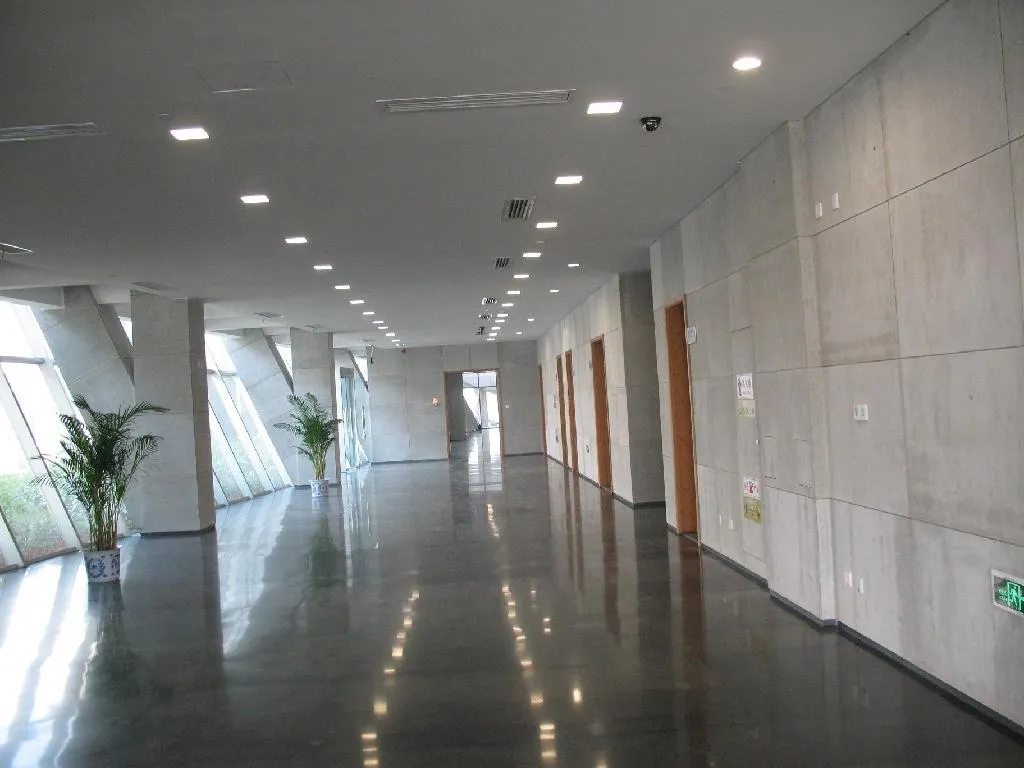

Fiber Reinforced Cement Board 8

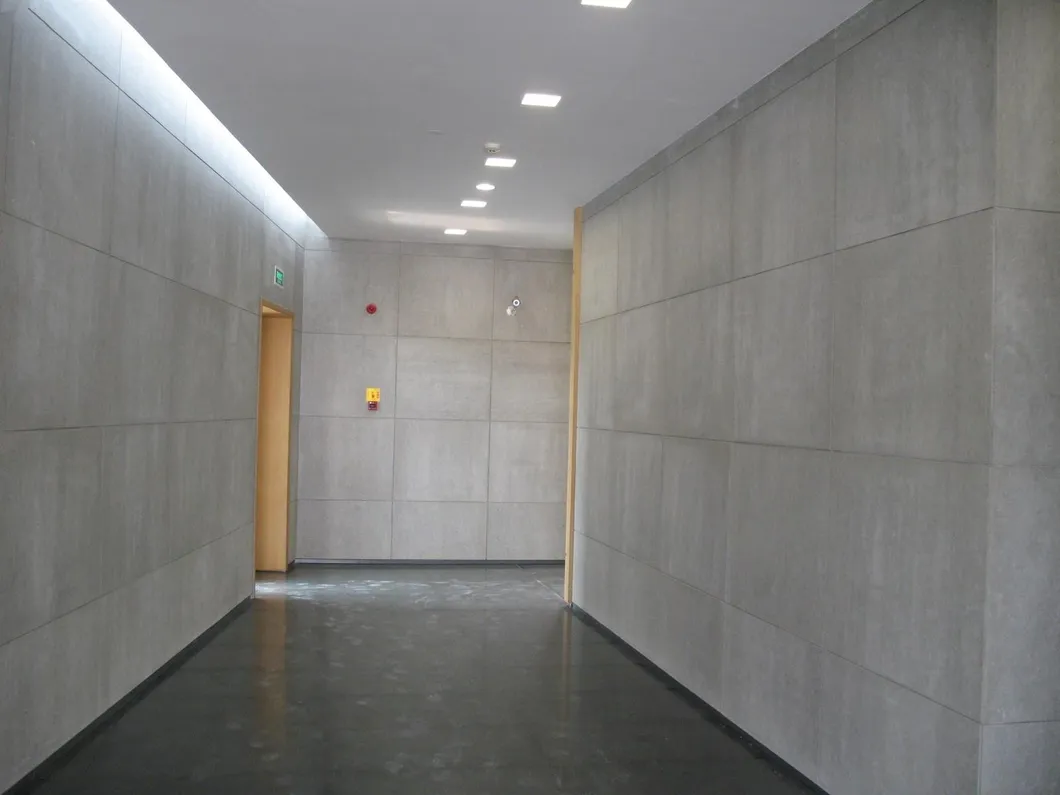

Fiber Reinforced Cement Board 9

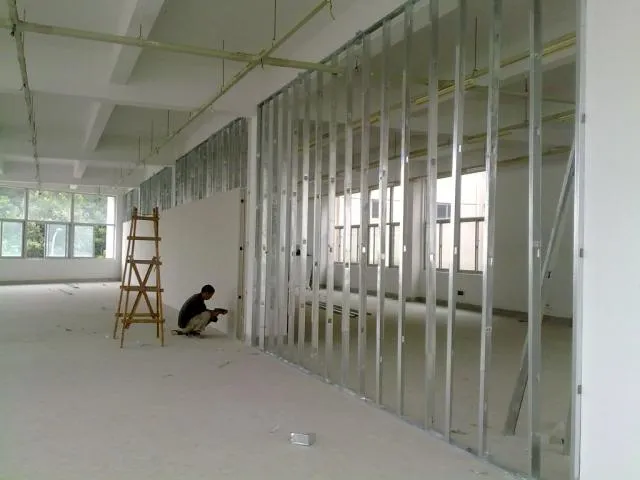

Fiber Reinforced Cement Board 10

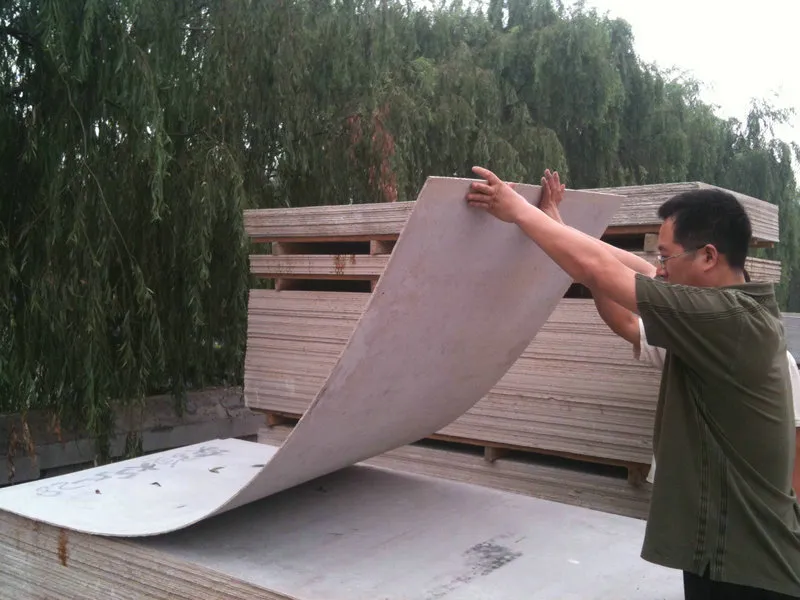

Fiber Reinforced Cement Board 11
Frequently Asked Questions
What are the primary applications of Fiber Cement Board?
Fiber cement boards are widely used for external wall cladding, fire-rated building partitions, ceiling tiles, floor bases, decorative drywalls, and light-weight grouted panels.
What is the fire-resistance rating of these panels?
The boards have an A1-Class incombustibility rating and provide a fire-proof duration of up to 180 minutes.
What sizes and thicknesses are available?
Standard sizes include 1200x2400mm and 1220x2440mm, with thicknesses ranging from 4.5mm up to 25mm. Custom sizes like 600x3000mm are also available.
Is the material resistant to water and freezing?
Yes, the board features excellent water-impermeability (no waterdrops after 24-hour immersion) and anti-freeze properties (no distortion after 25 freezing-thawing cycles).
What are the core materials used in production?
The panels are manufactured using high-quality Portland cement, cellulose fiber, and quartz sand.
What is the bending strength and density?
The boards have a density between 1.25-1.50 g/cm3 and a bending strength of ≥12-18 Mpa.
