Wall/Roof Material
EPS, PU, Galss Wool Sandwich Panel
Earthquake/Fire
7 Degree, Fire Proof
Quality Control
Daily Inspection
Usage

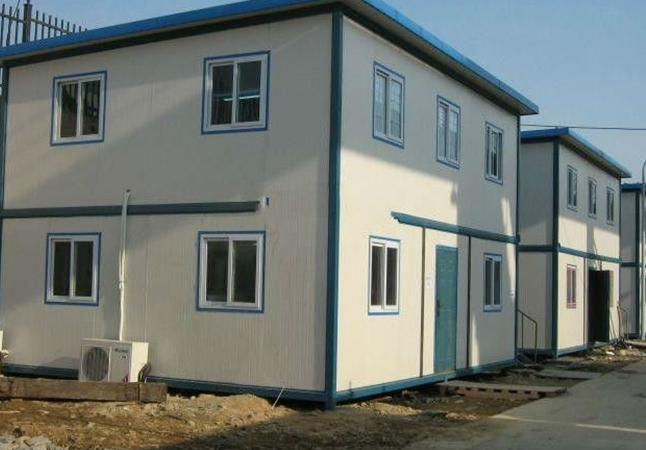

Warehouse, Villa, Dormitories, Offices, Workshop
Certification
ISO, CE, SGS, BV
Production Capacity
1000 units/Year
🏗️

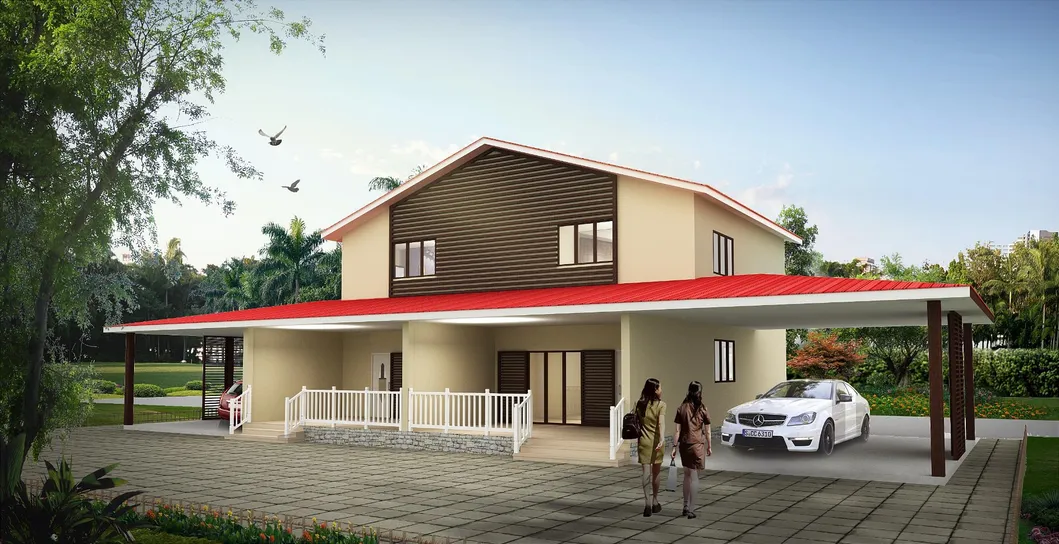

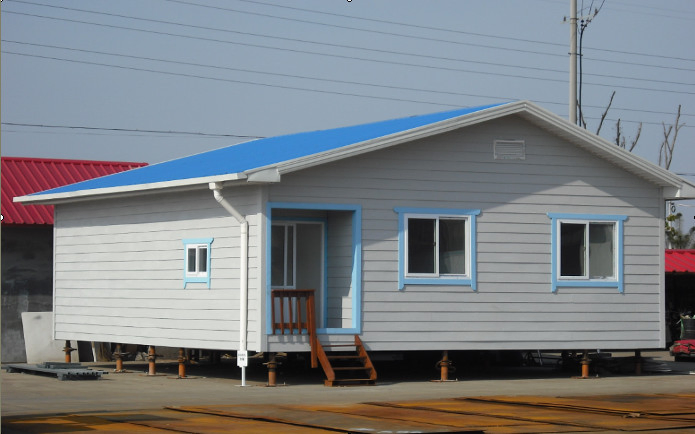

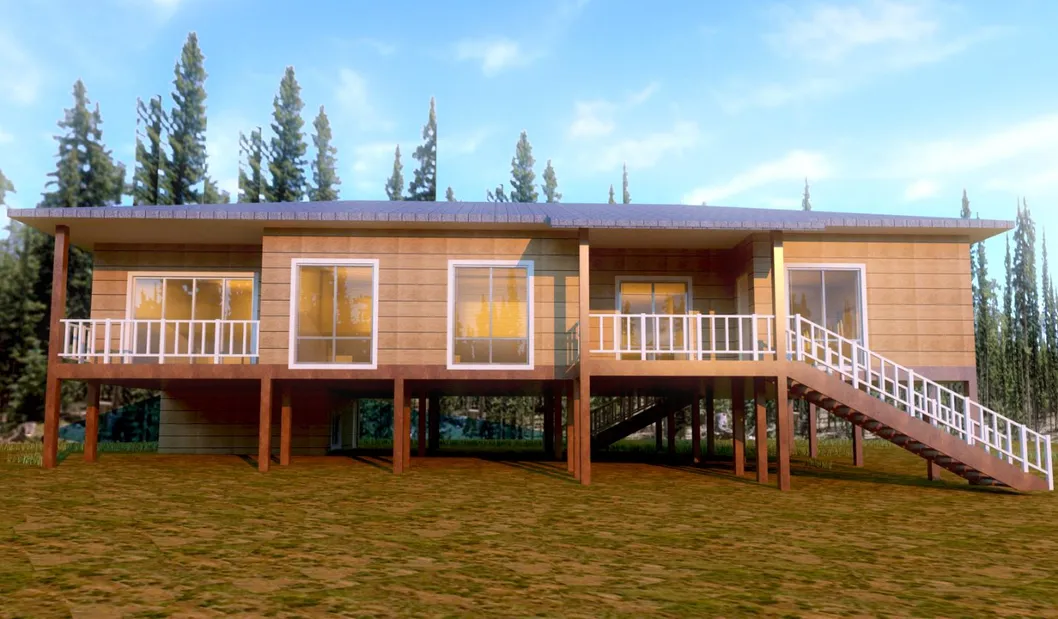

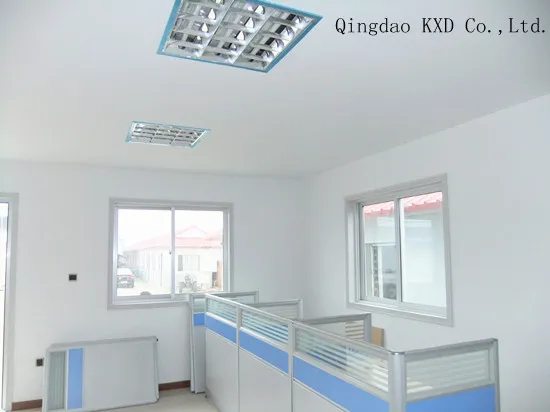

Modular Steel Structure Construction Prefab House

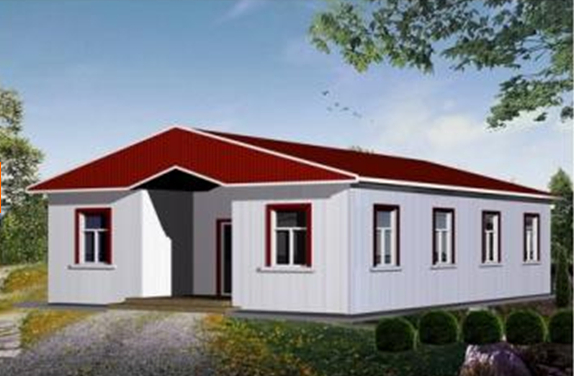

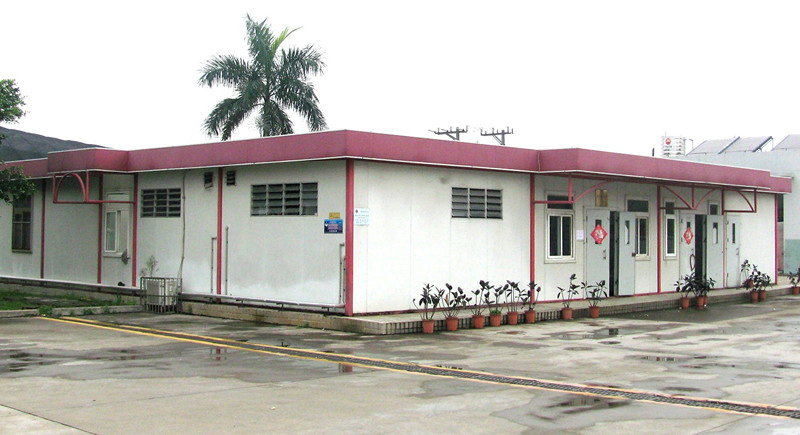

Versatile housing solution for offices, temporary homes, shopping malls, and classrooms. These structures feature higher quality, stronger durability, and an aesthetically pleasing appearance.
🌟
Key Advantages:
- Easy assembly and disassembly for flexible relocation.
- Efficient transport: All materials are packed into 20ft or 40ft containers.
- Diverse roof options: Choice of double slope or flat roof structures.
- Premium insulation: Wall and roof panels available in EPS, PU, Glass Wool, Cement Fiber, or Rockwool.
- Full system integration: Optional water, electricity, ceiling, and flooring systems.
Technical Properties
🛡️
- Load Resistance: Designed for 80 kg/m² snow load and 90 km/h wind speed.
- Seismic Rating: Suitable for 1st-degree seismic conditions.
- Wall Insulation: Hard polystyrene foam (40mm-80mm thickness) with K: 0.64 kcal/m²hc coefficient.
- Doors & Windows: Steel joinery external doors (80x200cm) and PVC/Steel joinery windows with various dimensions.
- Structure: Roof girders manufactured from specialized box profiles; steel columns at every 125 cm interval.
- Ceiling: 12.5mm plaster board with 80mm fiber glass insulation for optimal thermal control.
Detailed System Specifications
| System Type |
Option Details |
| Roof System |
Light steel structure + asphalt sheet/steel plate + waterproof rolling sheet + 100mm fiber glass wool insulation + 12mm plaster board. |
| Exterior Wall |
90mm light steel column + 100mm fiber glass wool + OSB board + fiber cement decoration panel + 12mm plaster board. |
| Interior Wall |
90mm light steel column + 100mm fiber glass/rockwool insulation + 12mm plaster/MGO board options. |
| Flooring System |
250mm light steel beam + 250mm fiber glass wool + OSB board/Concrete + Solid wood/Tile/Carpet finishing. |
Frequently Asked Questions
1. What materials are used for the insulation of the prefab house?
The walls and roofs utilize high-quality sandwich panels including EPS, PU, Glass Wool, and Rockwool. For the ceiling, 80mm fiber glass insulation is standard to ensure thermal efficiency.
2. Is the modular house resistant to extreme weather and earthquakes?
Yes, the structure is engineered to withstand 90 km/h wind speeds and 80 kg/m² snow loads. It is also rated for 7-degree earthquake resistance and 1st-degree seismic conditions.
3. How is the electrical and sanitary system installed?
Electrical installations are external with PVC cable channels, including keys, sockets, and lighting. Sanitary systems use PVC-based pipes for both clean and waste water, typically extending 1m outside the building.
4. What is the typical delivery time and assembly process?
The standard delivery time is approximately 35 days. Materials are designed for easy assembly; engineers can be sent to the site to guide installation and train local workers as required.
5. Can the prefab house be used for permanent residences?

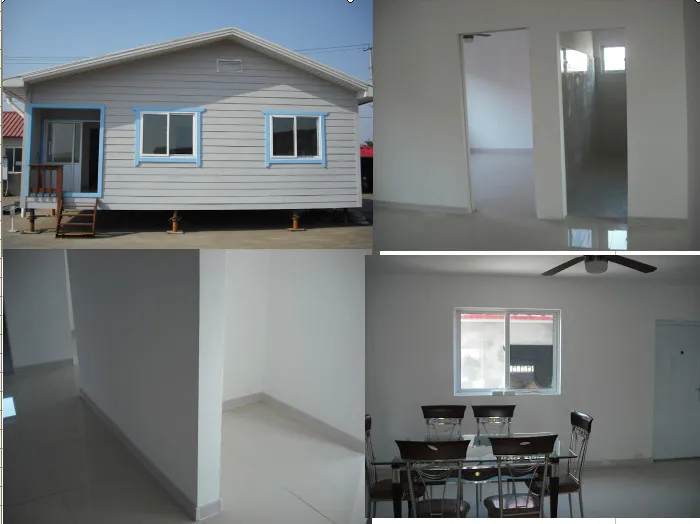

While excellent for temporary offices and classrooms, the high-quality steel structure, full insulation, and custom interior options like solid wood flooring and plasterboard ceilings make it suitable for villas and long-term dormitories.
6. What certifications do these prefabricated buildings hold?
All products are manufactured under strict quality control and are certified by ISO 9001-2000, CE, SGS, and BV standards to ensure international quality compliance.
